Jvc KDAV 7010 Service Manual
This is the 52 pages manual for Jvc KDAV 7010 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDAV 7010 Service Manual (Ocr-read)

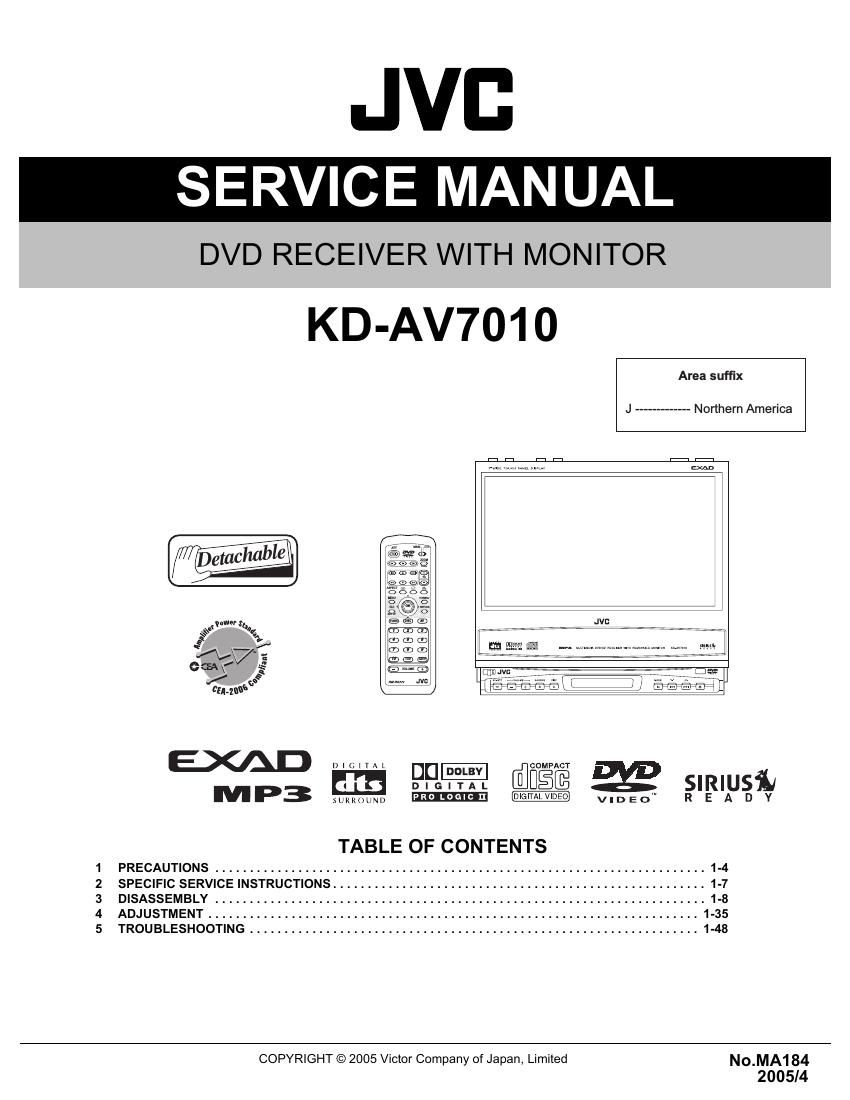

Page 1
1-2 (No.MA184) SPECIFICATION Main unit AUDIO AMPLIFIER SECTION Power Output Front and Rear 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N Center 18 W RMS × 1 Channel at 4 Ω and [< or =] 1% THD+N Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω) Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz Level ±10 dB Frequency Response 40 Hz to 20 000 Hz TUNER SECTION Frequency Range FM 87.5 MHz to 107.9 MHz AM 530 kHz to 1 710 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB Capture Ratio 1.5 dB AM Tuner Sensitivity 20 µV Selectivity 35 dB DVD/CD PLAYER SECTION Signal Detection System Non-contact optical pickup (semiconductor laser) Number of channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz DVD, fs=96 kHz 16 Hz to 44 000 Hz VCD, CD, MP3 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit MP3 Recording Format MPEG 1/2 Audio Layer 3 Max. Bit rate: 320 kbps
Page 2
(No.MA184)1-3 Hideaway unit Design and specifications are subject to change without notice.REMOVABLE MONITOR Screen Size 7 inch wide liquid crystal display Number of Pixel 336 960 pixels (480 vertical × 234 horizontal × 3) Drive Method TFT (Thin Film Transistor) active matrix format Color System NTSC Aspect Ratio 16:9 (wide) Allowable Storage Temperature -10°C to +60°C (14°F to 140°F) Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) 170 mm × 141 mm × 15 mm (6-3/4 in. × 5-5/8 in. × 5/8 in.) Mass 475 g (1.1 lbs) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Other Terminal Steering wheel remote input (OE REMOTE) Dimensions (W × H × D) Installation Size 182 mm × 52 mm × 165 mm (7-3/16 in. × 2-1/16 in. × 6-1/2 in.) (With sleeve-mounting plate Type B (standard)) 182 mm × 52 mm × 160 mm (7-3/16 in. × 2-1/16 in. × 6-5/16 in.) (With sleeve-mounting plate Type A) Panel Size 188 mm × 58 mm × 14 mm (7-7/16 in. × 2-5/16 in. × 5/8 in.) Mass 2.25 kg (5.1 lbs) (including monitor) Input Terminals AV INPUT 1/2 Audio: 0.5 Vrms (Left/Right) Video (composite): 1 Vp-p/75 Ω Output Terminals (Level/Impedance) AV OUTPUT Audio: 2.0 V/20 kΩ load (full scale) Video (composite): 1 Vp-p/75 Ω PRE OUT Audio: 2.0 V/20 kΩ load (full scale) Other Terminals System integration (TO MAIN UNIT) FM/AM antenna (FM/AM ANTENNA) AV bus (AV BUS) CD changer (TO CHANGER) Rear view camera/Center speaker (BACKCAMERA REMOTE/CENTER SPEAKER) Power cord (POWER) Dimensions (W × H × D) 230 mm × 35 mm × 181 mm (9-1/16 in. × 1-7/16 in. × 7-3/16 in.) Mass 1.3 kg (2.9 lbs)
