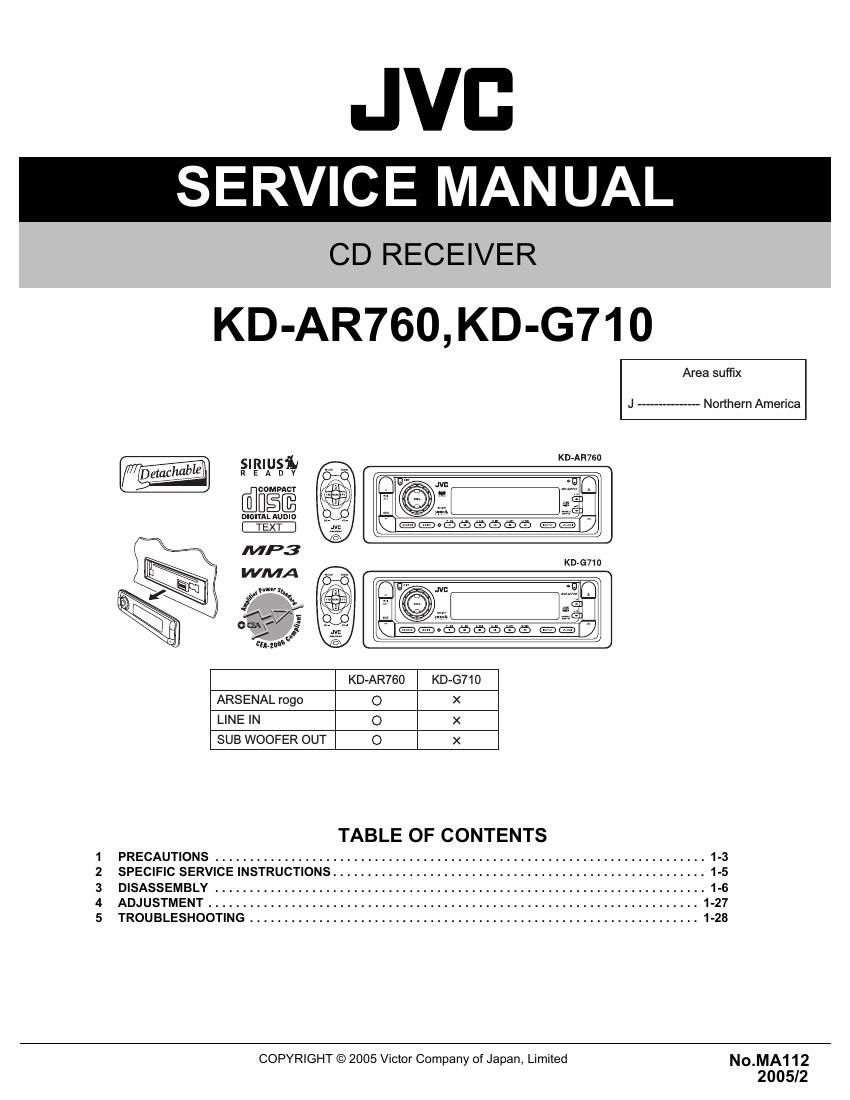

Jvc KDAR 760 Service Manual
This is the 34 pages manual for Jvc KDAR 760 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDAR 760 Service Manual (Ocr-read)
Page 1
1-2 (No.MA112) SPECIFICATION Design and specifications are subject to change without notice.AUDIO AMPLIFIER SECTION Power Output 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω) Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz) Mid ±12 dB High ±12 dB (8 kHz, 10 kHz, 12 kHz, 15 kHz) Frequency Response 40 Hz to 20 000 Hz Line-Out Level/Impedance KD-AR760 1.5 V/20 kΩ load Line-Out Level/Impedance KD-AR760 5.0 V/20 kΩ load (full scale) KD-G710 4.0 V/20 kΩ load (full scale) Output Impedance 1 kΩ Subwoofer-Out Level/Impedance KD-AR760 2.0 V/20 kΩ load (full scale) Other terminals CD changer, LINE IN (for KD-AR760),SUBWOOFER (for KD-AR760) TUNER SECTION Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 200 kHz) 87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz) AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz) 531 kHz to 1 602 kHz (with channel interval set to 9 kHz) [FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB Capture Ratio 1.5 dB [AM Tuner] Sensitivity 20 µV Selectivity 35 dB CD PLAYER SECTION Type Compact disc player Signal Detection System Non-contact optical pickup (semiconductor laser) Number of channels 2 channels (stereo) Frequency Response 5 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit MP3 decoding format MPEG1/2 Audio Layer 3 Max. Bit Rate:320 Kbps WMA (Windows Media Audio) decoding format Max. Bit Rate192 Kbps GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) Installation Size (approx.) "182 mm × 52 mm × 150 mm (7-3/16"" × 2-1/16"" × 5-15/ 16"")" Panel Size (approx.) "188 mm × 58 mm × 11 mm (7-7/16"" × 2-5/16"" × 7/16"")" Mass (approx.) 1.5 kg (3.4 lbs) (excluding accessories)
Page 2
(No.MA112)1-3 SECTION 1 PRECAUTIONS 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. ! Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
