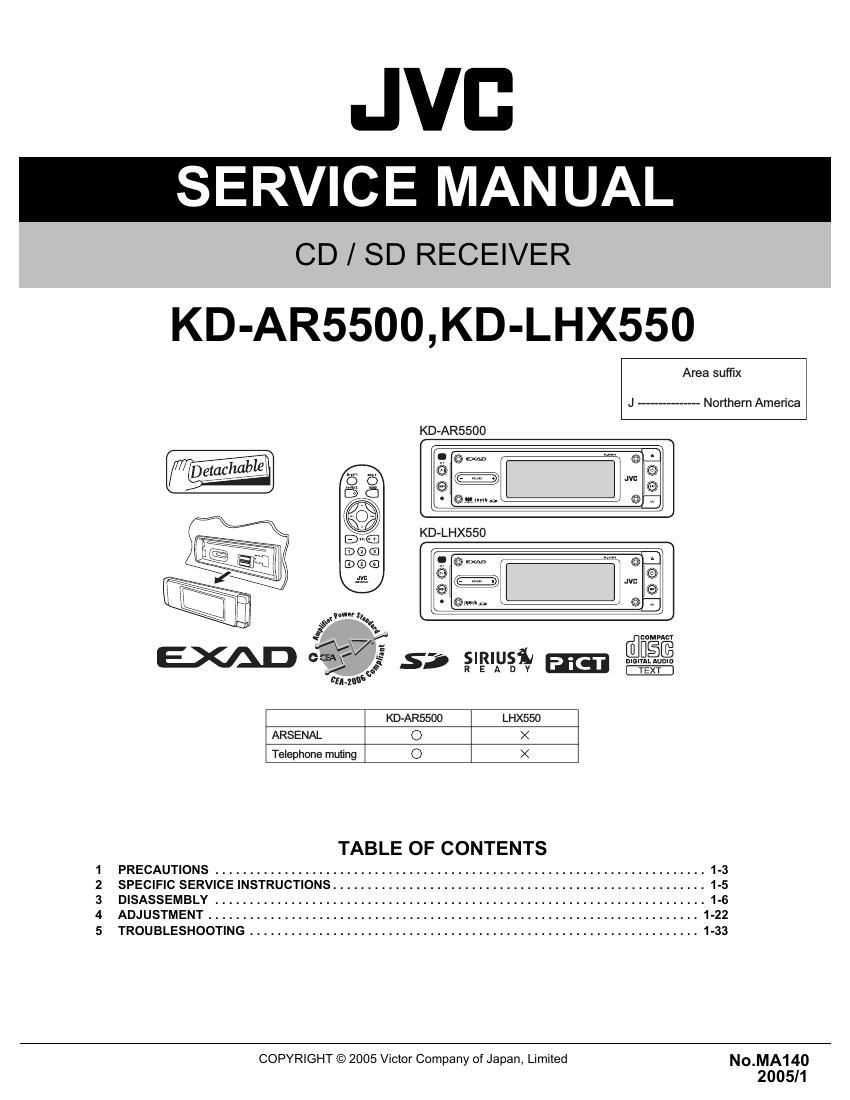

Jvc KDAR 5500 Service Manual
This is the 79 pages manual for Jvc KDAR 5500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDAR 5500 Service Manual (Ocr-read)
Page 2
SPECIFICATION
AUDIO AMPLIFIER SECTION
Power Output
22 W RMS x 4 Channels at 4 £2 and [< or =]1% THD+N
Signal to Noise Ratio
80 dBA (reference: 1 W into 4 Q)
Load Impedance
4 Q (4 Q to 8 Q allowance)
Equalizer Control Range
Frequencies
60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
Level
110 dB
Frequency Response
40 HZ to 20 000 HZ
Line-Out Level/Impedance
5.0 V/20 k9 load (full scale)
Output Impedance
1k!)
Subwoofer-Out Level/Impedance
5.0 V/20 k9 load (full scale)
Other terminals
LINE IN, CD changer. Steering wheel remote input
Frequency Range
TUNER SECTION
FM 87.5 MHz to 107.9 MHz (with channel interval set to 200
kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
[FM Tuner] Usable Sensitivity 11.3 dBf (1 .O pV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 0)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 uV
Selectivity 65 dB
CDISD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 98 dB
Signal-to-Noise Ratio 102 dB
Wow and Flutter Less than measurable limit
MP3 (MPEG Audio Layer 3) Max, Bit Rate 320 kbps
WMA (Windows Media Audio) Max. Bit Rate 192 kbps
Playable SD Card Format Fat 12/16
Storage Up to 512 MB
Playable Audio Format for SD Card MP3IWMA
GENERAL
Power Requirement
Operating Voltage
DC 14.4 V (11 V to 16 V allowance)
Grounding System
Negative ground
Allowable Operating Temperature
0°C to +40°C (32°F to 104°F)
Dimensions (W x H x D)
Installation Size (approx.)
182 mm x 52 mm x 159 mm (7-3/16" >< 2-1/16" X 6-5/16)
Panel Size (approx.)
188 mm X 58 mm X 13 mm (7-7/16" >< 2-5/16" >< 9/16")
Mass (approx.)
1.9 kg (4.2 lbs) (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA140)
