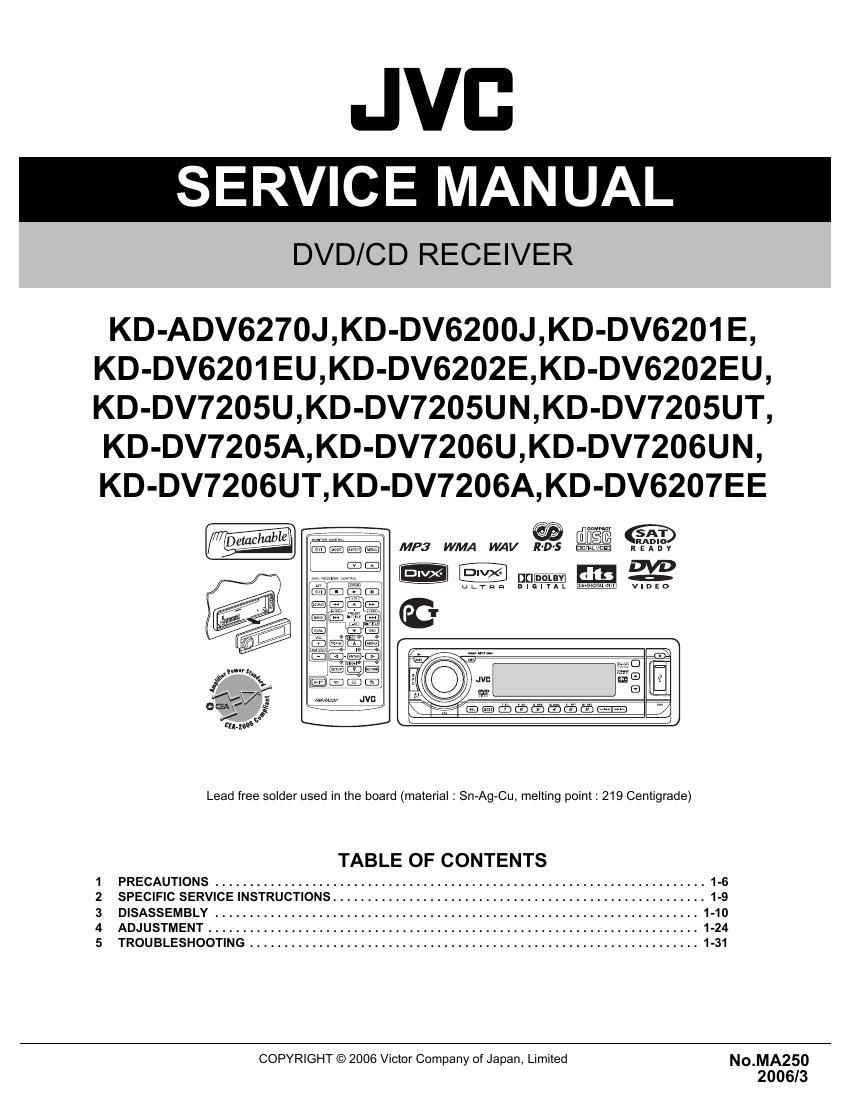

Jvc KDADV 6201 E Service Manual
This is the 32 pages manual for Jvc KDADV 6201 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDADV 6201 E Service Manual (Ocr-read)
Page 1
1-2 (No.MA250) SPECIFICATION KD-ADV6270/KD-DV6200 AUDIO AMPLIFIER SECTION Power Output 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω) Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz Level ±10 dB Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm Output level : -21 dBm to -15 dBm Line-Out Level/Impedance KD-ADV6270 : 5.0 V/20 kΩ load (full scale) KD-DV6200 : 2.5 V/20 kΩ load (full scale) Output Impedance 1 kΩ Subwoofer-out Level/Impedance KD-ADV6270 : 2.5 V/20 kΩ load (full scale) KD-DV6200 : 2.0 V/20 kΩ load (full scale) Color system NTSC Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT TUNER SECTION Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz) 87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz) AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz) 531 kHz to 1 602 kHz (with channel interval set to 9 kHz) FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB AM Tuner Sensitivity/Selectivity 20 µV/35 dB DVD/CD PLAYER SECTION Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz DVD, fs=96 kHz 16 Hz to 22 000 Hz CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps) 720 × 576 pixels (25 fps) Audio Bit Rate : 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps) 720 × 576 pixels (25 fps) Audio Bit Rate : 32 kbps - 384 kbps Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz MP3 Bit Rate 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz WMA Bit Rate 32 kbps - 320 kbps Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit Sampling Frequency 44.1 kHz USB MEMORY Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz WMA Bit Rate 5 kbps - 320 kbps Sampling Frequency 8 kHz - 48 kHz GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm (7-3/16" × 2-1/16" × 6-1/4") Panel Size (approx.) 188 mm × 58 mm × 11 mm (7-7/16" × 2-5/16" × 7/16") Mass (approx.) 1.7 kg (3.3 lbs) (excluding accessories)
Page 2
(No.MA250)1-3 KD-DV6201/KD-DV6202 AUDIO AMPLIFIER SECTION Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz Level ±10 dB Signal to Noise Ratio 70 dB Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm Output level : -21 dBm to -15 dBm Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale) Output Impedance 1 kΩ Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale) Color system PAL Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT TUNER SECTION Frequency Range FM 87.5 MHz to 108.0 MHz AM (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 30 dB MW Tuner Sensitivity/Selectivity 20 µV/35 dB LW Tuner Sensitivity 50 µV DVD/CD PLAYER SECTION Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz DVD, fs=96 kHz 16 Hz to 22 000 Hz CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps) 720 × 576 pixels (25 fps) Audio Bit Rate : 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps) 720 × 576 pixels (25 fps) Audio Bit Rate : 32 kbps - 384 kbps Sampling Frequency : 32 kHz, 44.1 kHz, 48 kHz MP3 Bit Rate 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz WMA Bit Rate 32 kbps - 320 kbps Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit Sampling Frequency 44.1 kHz USB MEMORY Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz WMA Bit Rate 5 kbps - 320 kbps Sampling Frequency 8 kHz - 48 kHz GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm Panel Size (approx.) 188 mm × 58 mm × 11 mm Mass (approx.) 1.7 kg (excluding accessories)
