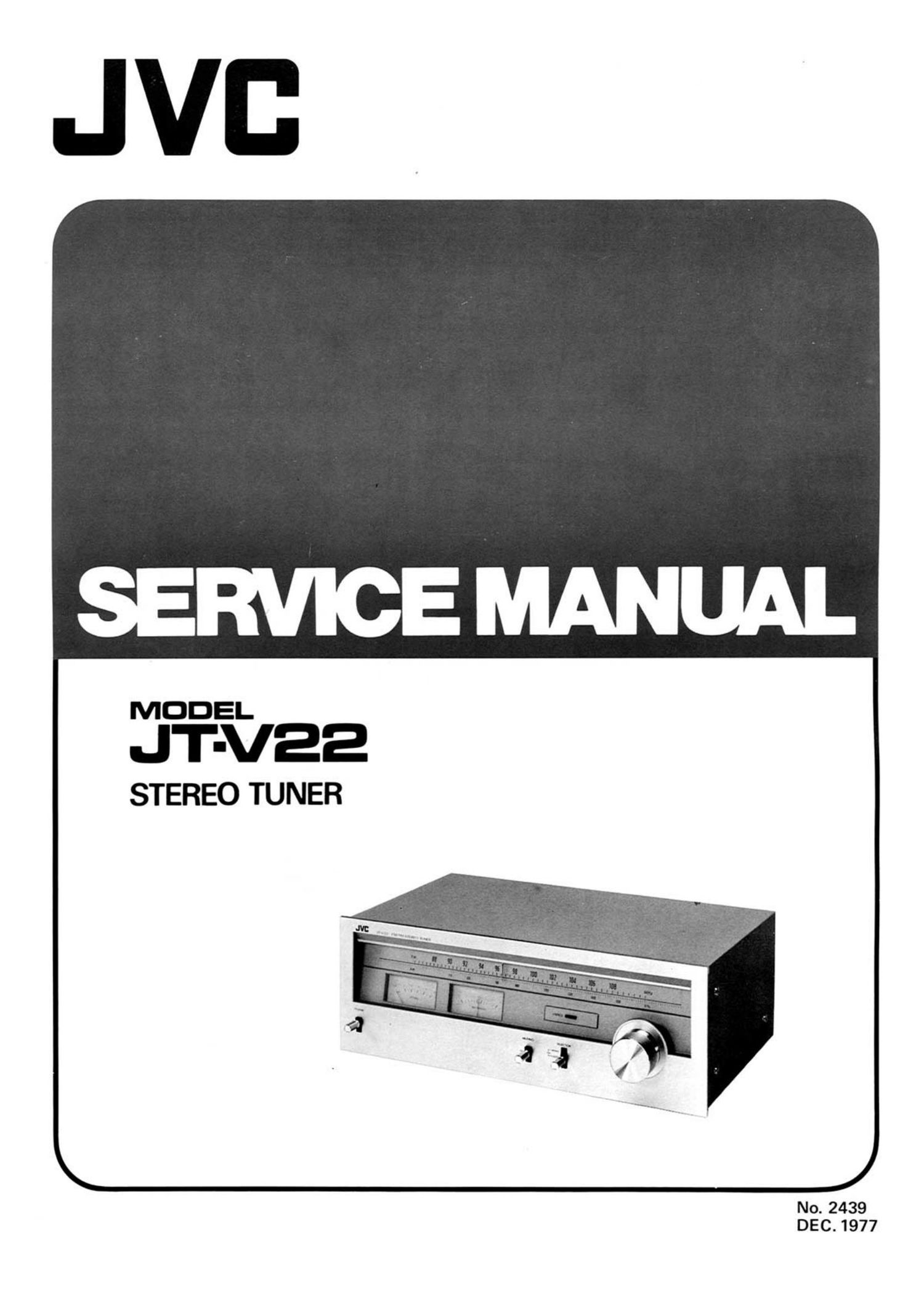

Jvc JT V22 Service Manual
This is the 22 pages manual for Jvc JT V22 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc JT V22 Service Manual (Ocr-read)
Page 2
Contents
1. Specifications ..................... ' ................................... 2
2. Removal of Top Cover and Bottom Plate ...................................... 3
3. Main Parts Location and Part Numbers ........................................ 4
4. Dial Stringing and Tuning Knob Fitting Procedures ................................ 5
5. Exploded View and Part Numbers
5-(1) Front Panel ................................................... 6
5-(2) Rear Panel .................................................... 7
6. FM/AM Tuner Alignment Procedure
6-(1) FM Section ................................................... 3
6-(2) AM Section ................................................... 9
7. Printed Circuit Board Assy and Parts List
7-(1) TXX-104 FM/AM Tuner and Switch P.C. Board Ass'y ....................... 1o
7-(2) TXX-119 Power Supply and Voltage Select Switch P.C. Board Assy ............. 16
8. Schematic Diagram ..................................................... 18
9. Packing Materials ...................................................... 20
10. Accessories List ....................................................... 20
11. Parts List with Specified Numbers for Designated Areas ........................ Back page
This SET is switchable between line voltages of 110,
120, 220 and 240 volts AC; 50/60 Hz.
The change-over switch is placed on the rear panel of
the set.
To select another voltage, turn the change-over switch
with a screwdriver or coin.
But for the USA. and Canada, this set is no change-
over switch, and fixed only 120 volts AC; 50/60 Hz.
Note:
When replacing the parts marked with A , be sure to use the designated parts to ensure safety.
JT-V22
No. 2439
