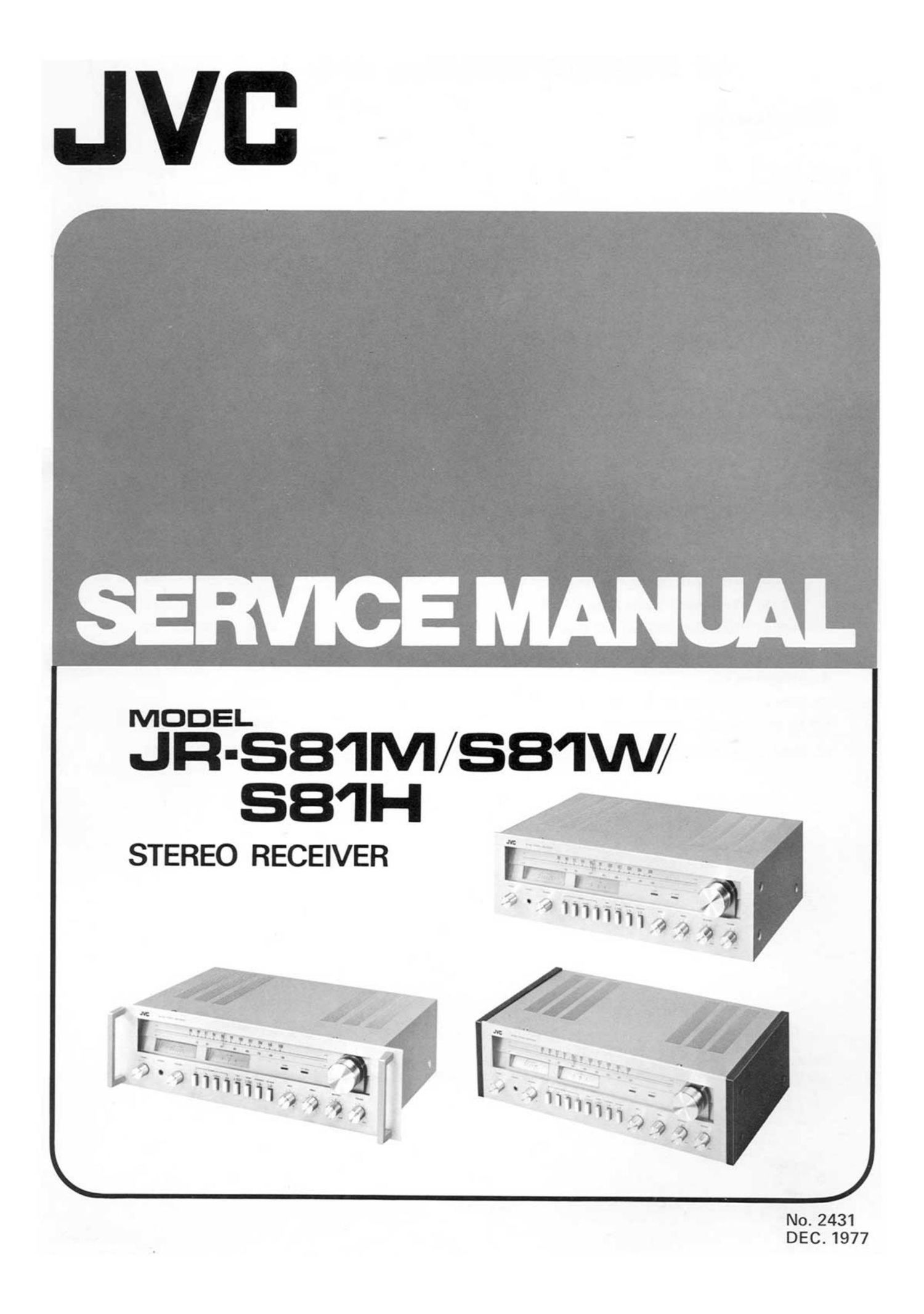

Jvc JR S81H Service Manual
This is the 31 pages manual for Jvc JR S81H Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc JR S81H Service Manual (Ocr-read)
Page 2
Contents
Page
1. Specifications ........................................................ 2
2. Removal of Procedures
2-(1) Top Cover and Bottom Plate ........................................ 3
2(2) Front Panel ................................................... 4
3. Main Part Locations and Part Numbers ........................................ 4
4. Exploded Views and Part Numbers
4-(1) Front Panel ................................................... 5
4-(2) Rear Panel .................................................... 6
5. Dial Stringing Procedure ................................................. 7
6. FM/AM Tuner Alignment Procedures
6-(1) FM Section ................................................... 9
6-(2) AM Section ................................................... 11
7. Printed Circuit Board Assy and Parts List
7-(1) TFC-ZOC FM/AM Tuner & Equalizer Amp. P.C. Board Ass'y .................. 12
7-(2) TPS-93G AC Fuse P.C. Board Ass'y ................................... 19
7-(3) TSC-107 Speaker Switch P.C. Board Assy .............................. 20
7-(4) TPS-124A Lamp P.C. Board Ass'y .................................... 20
7-(5l TAP-256C Audio Amp. P.C. Board Ass'y ............................... 21
7-(6) TAG-491 Volume and Tone Control P.C. Board Assy ....................... 25
8. Packing Materials and Part Numbers .......................................... 26
9. Accessories List ....................................................... 27
10. Transistor, LC. and Diode Lead Identification ................................... 27
11. JR-881 Schematic Diagram ................................................ 28
12. Parts List with Specified Numbers for Designated Areas ............................. 30
Note:
When replacing the parts marked with A , be sure to use the designated parts to ensure safety.
JR-S81
No. 2431 - - 1 -
