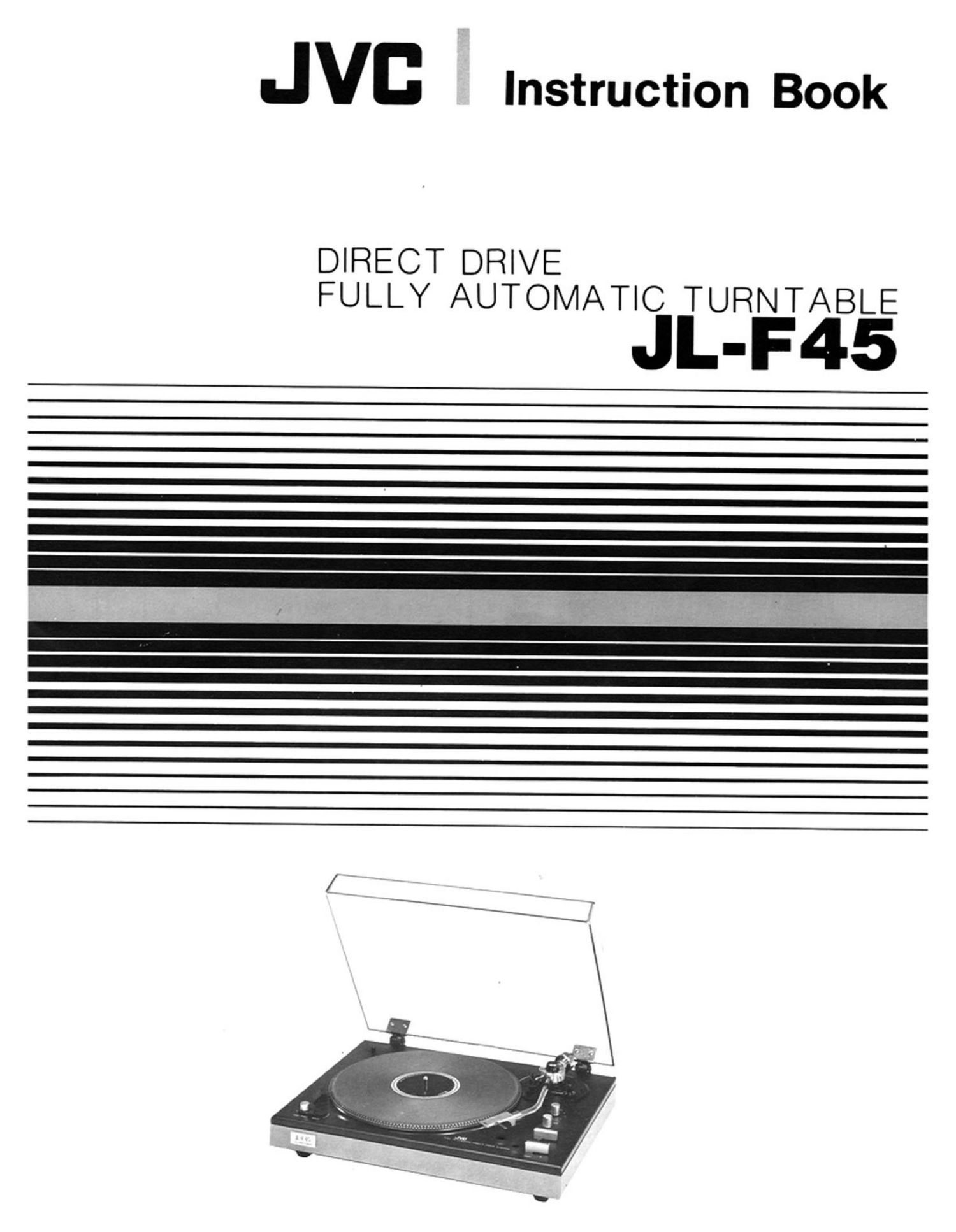

Jvc JL F45 Owners Manual

Page 2

A GUIDE TII THIS
INSTRUCTION BIIIIK

Thank you for buying JVC's JL-F45 Direct-Drive fully
automatic stereo turntable. You are now the owner of a
sophisticated turntable of precise and sturdy fully-auto-
matic mechanism driven by the direct-drive phono motor.
Many advanced features of this turntable will be correctly
and efficiently utilized only when you read this instruction
book, understand it and operate the turntable correctly.
Before the setting-up, you should read the important
precautions in this manual. Wishing you happy and
successful listening.

CONTENTS

IMPORTANT ................................. 1
PREPARATION ............................... 2
ADJUSTMENT ................................ 2
OPERATION (HOW TO USE) .................... 6
CARTRIDGE MOUNTING ....................... 8
STYLUS REPLACEMENT ....................... 8
TROUBLESHOOTING .......................... 8
SPECIFICATIONS ............................. 9

rWARNING

I MPIIIITANT

TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.

r-CAUTION

TO PREVENT ELECTRICAL SHOCK, DO
NOT REMOVE SCREWS, COVER OR CABI-
NET. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALI-
FIED SERVICE PERSONNEL.

-In the United Kingdom (U.K.)

THE MAINS VOLTAGE OF THIS APPA-
RATUS HAS BEEN FIXED TO 240V~,
50Hz.

- IMPORTANT

The wires in this mains lead are coloured in
accordance with the following code:

BLUE: NEUTRAL O Q
BROWN: LIVE all I

As the colours of the wires in the mains
lead of this apparatus may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows.
The wire which is coloured blue must be
connected to the terminal which is marked
with the letter N or coloured blue or
black.

The wire which is coloured brown must be
connected to the terminal which is marked
with the letter L or coloured brown or red.
