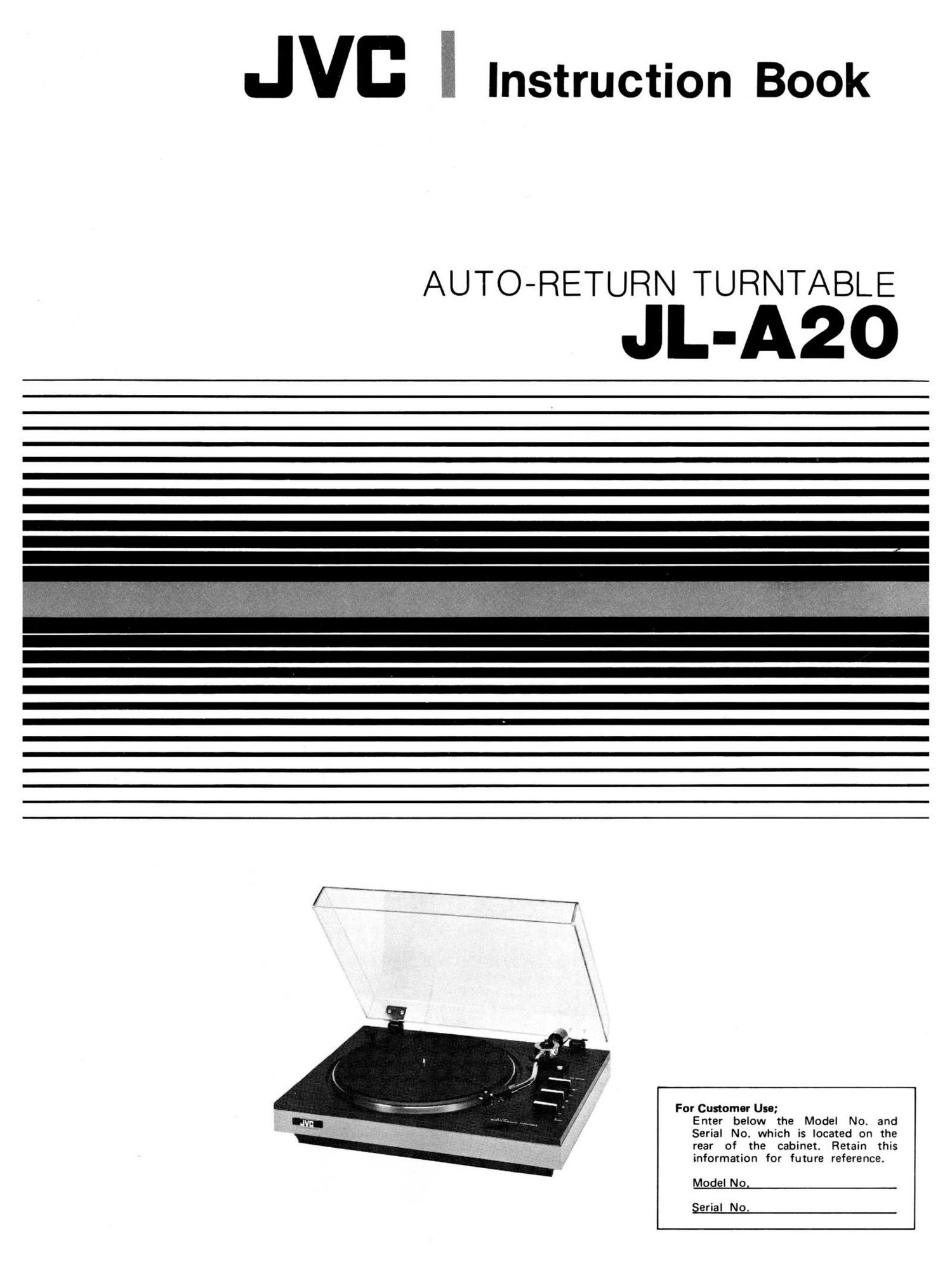

JVC

Instruction Book

AUTO-RETURN TURNTABLE

JL-A20

For Customer Use;
Enter below the Model No. and
Serial No. which is located on the
rear of the cabinet. Retain this
information for future reference.

Model No.

Serial No.

Page 2

A GUIDE Tl) THIS
INSTRUCTION 800K

Thank you for buying JVC's JL-A20 stereo turntable. You
are now the owner of a sophisticated turntable.

Many advanced features of this turntable will be correctly
and effeciently utilized only when you read this instruction
book, understand it and operate the turntable correctly.
Before the setting-up, you should read the important
precautions in this manual. Wishing you happy and
successful listening.

CONTENTS

IMPORTANT ................................ 1
IMPORTANT ................................ 2
Installation ................................ 2
Power .................................... 2
Malfunctions, etc ............................ 2
PREPARATION .............................. 2
Unpacking ................................. 2
Setting Up ................................. 2
ADJUSTMENT .............................. 3~4
Tracking force adjustment ..................... 3
Headshell mounting angle fine adjustment ......... 3
Anti-skating adjustment ....................... 3
Overhang adjustment ......................... 4

(Stylus tip position adjustment)

Arm elevator height adjustment ................. 4
CARTRIDGE MOUNTING ...................... 4
LU BRICATION ............................... 4
HOW TO USE ................................ 5

Names and functions ......................... 5

Operation ................................. 5
TROUBLESHOOTING ......................... 6
SPECIFICATIONS ............................ 6

IMPORTANT

-WARNING

TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

--CAUTION

TO PREVENT ELECTRICAL SHOCK, DO
NOT REMOVE SCREWS, COVER OR CABI-
NET. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALI-
FIED SERVICE PERSONNEL.

r-ln the United Kingdom (U.K)

THE MAINS VOLTAGE OF THIS APPA-
RATUS HAS BEEN FIXED TO 240V~,
50Hz.

IMPORTANT-

The wires in this mains lead are coloured in
accordance with the following code:

BLUE: NEUTRAL
BROWN: LIVE

As the colours of the wires in the mains
lead of this apparatus may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows.

The wire which is coloured blue must be
connected to the terminal which is marked
with the letter N or coloured blue or black.
'The wire which is coloured brown must be
connected to the terminal which is marked
with the letter L or coloured brown or red.
