Extracted text from Jvc JAS 11 Service Manual (Ocr-read)

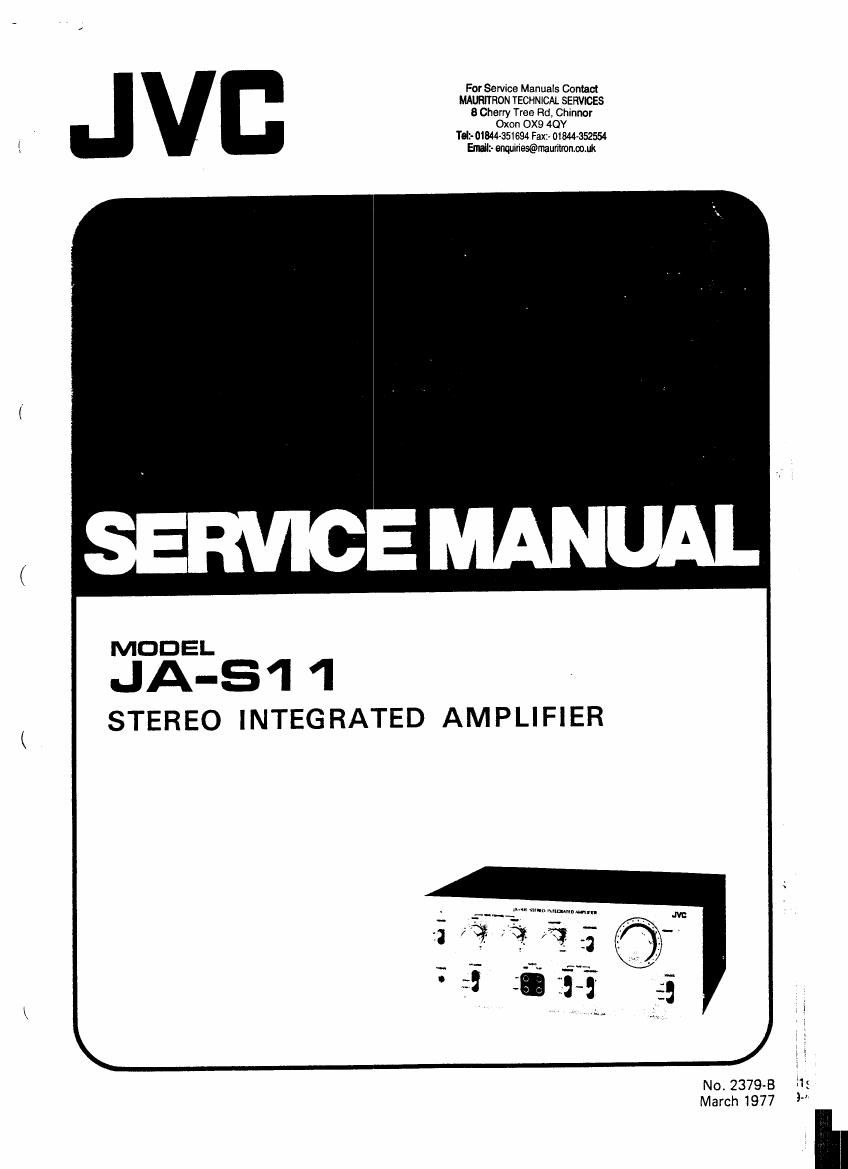

Page 1
For Service Manuals Contact
MAURHRON TECHNICAL SERVICES
8 Cherry Tree Rd, Chinnor
Oxon OX9 40!
1M:- 01844-351694 Faxr- 01844-352554
Emit:- enquiries@maumon.oo.m
MODEL
JA-S1 I
STEREO INTEGRATED AMPLIFIER
NO. 23798 :15
March 1977 3"
Page 2
9-8
C ontents
Page
Specifications . ................ . . ............. . ............ 2
Removal of Top Cover and Bottom Plate ..... . ...................... . . . 3
Main Pans Location ...................... . ................... 3
Exploded Views and Part Numbers
(1) Front ................ . ........................... 5
(2) Rear ............................................. 6
(3) Chassis Base ......................................... 7
(4) Power Transformer ..................................... 8
Special Parts List with Specified Numbers by Areas (table 2) ..................... 8
Printed Circuit Board Assy and Pans List
(1) TXX«32 (TAP-264 and TAG-413) Main and Tone Control P.C. Board Assy ........ 9
(2) TPS$9 AC Primary P.C. Board Ass'y . . . . . . '. . . . . . ................ 13
(3) TPS-7O AC Primary P.C. Board As'y . . . . .' . . '. .................... 13
JA-S11 Schematic Diagram ................. I: .................... 14
JA-S11 Schematic Diagram for USA. ................................ 15
Packing Materials ........................................... 16
Accessories List ........................ . . . ................. 16
.-
