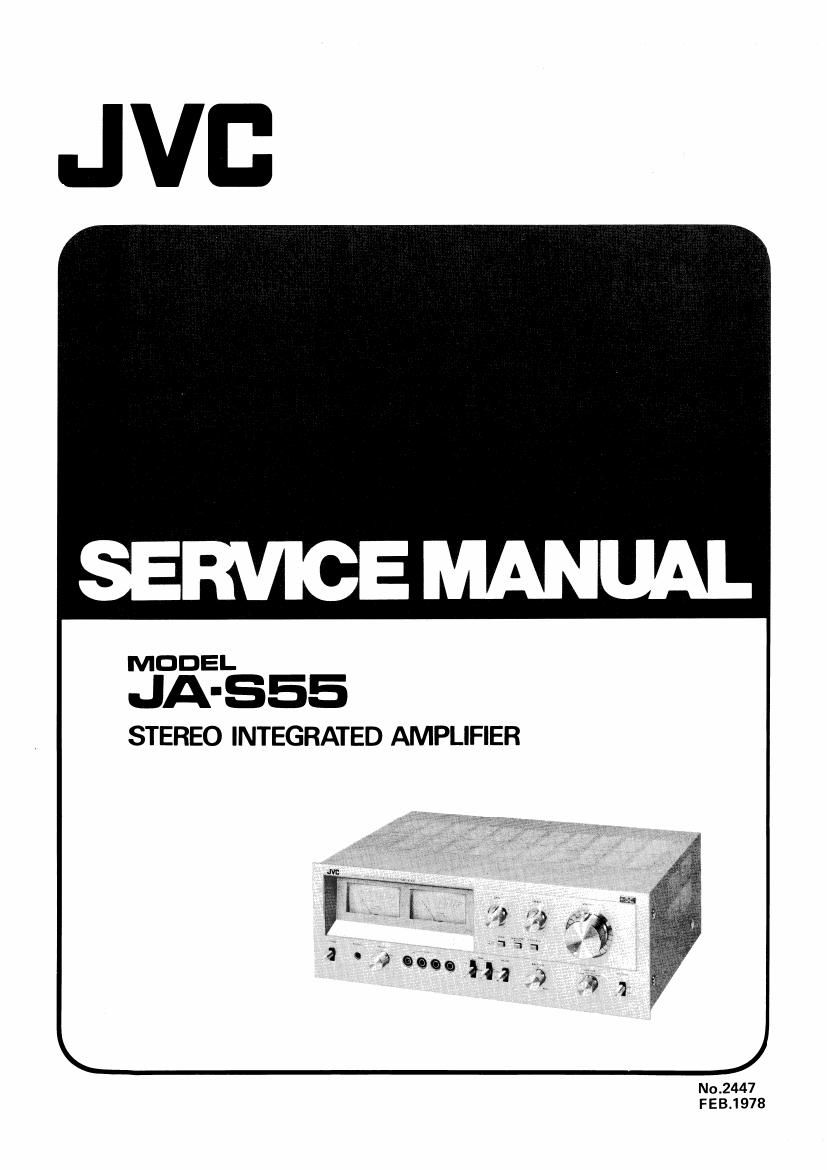

Jvc JA S55 Service Manual
This is the 28 pages manual for Jvc JA S55 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc JA S55 Service Manual (Ocr-read)
Page 2
JA-SSS
No.2447
Contents
Page
1. Specifications .............................................................. 2
2. Block Diagram .............................................................. 2
3. Removal of Top Cover and Bottom Plates ............................................ 3
4. Main Parts Location and Part Numbers .............................................. 4
5. Exploded Views and Part Numbers
5-(1) Front Panel ......................................................... 5
5-(2) Heat Sink and Power lC's ................................................ 6
5-(3) Rear Panel .......................................................... 6
6. Adjustment Procedures
6-H) Main Amp. Center Voltage ............................................... 7
6-(2) Power Meter ........................................................ g
6-(3) Equalizer Amp. Center Voltage ............................................ 3
7. Printed Circuit Board Assy and Parts List
7-) TXX-13ZB, C, D or E Driver & Equalizer Amp. P.C. Board Ass'y ...................... g
7-(2) TXX-133B, C, D or E Power Amp. & Protector P.C. Board Ass'y ...................... 1s
7-(3) TPS-194A AC Outlet 8i Voltage Selector P.C. Board Ass'y .......................... 20
7-(4) TPS-197A Line Voltage Selector P.C. Board Ass'y ............................... 20
8. Packing Materials and Part Numbers ................................................ 21
9. Accessories List ............................................................. 21
10. JA-855 Schematic Diagram ...................................................... 22
11. Parts List with Specified Numbers for Designated Areas ................................... 24
Warning:
When replacing the parts maked with A , be sure to use the designated parts to ensure safety.
Power Specifications
Areas Line Voltage 81 Frequency Power Consumption
U.S.A. AC 120 V, 60 Hz 255 W
CANADA AC 120 V, 60 Hz 320 VA
EUROPE AC 220 V \I. 50 Hz 478 W
U.K. & AUSTRALIA AC 240 V\/, 50 Hz 478 W
OTHER AREAS AC 100/120/220/240 VV 478 W
Selectable, 50/60 Hz
