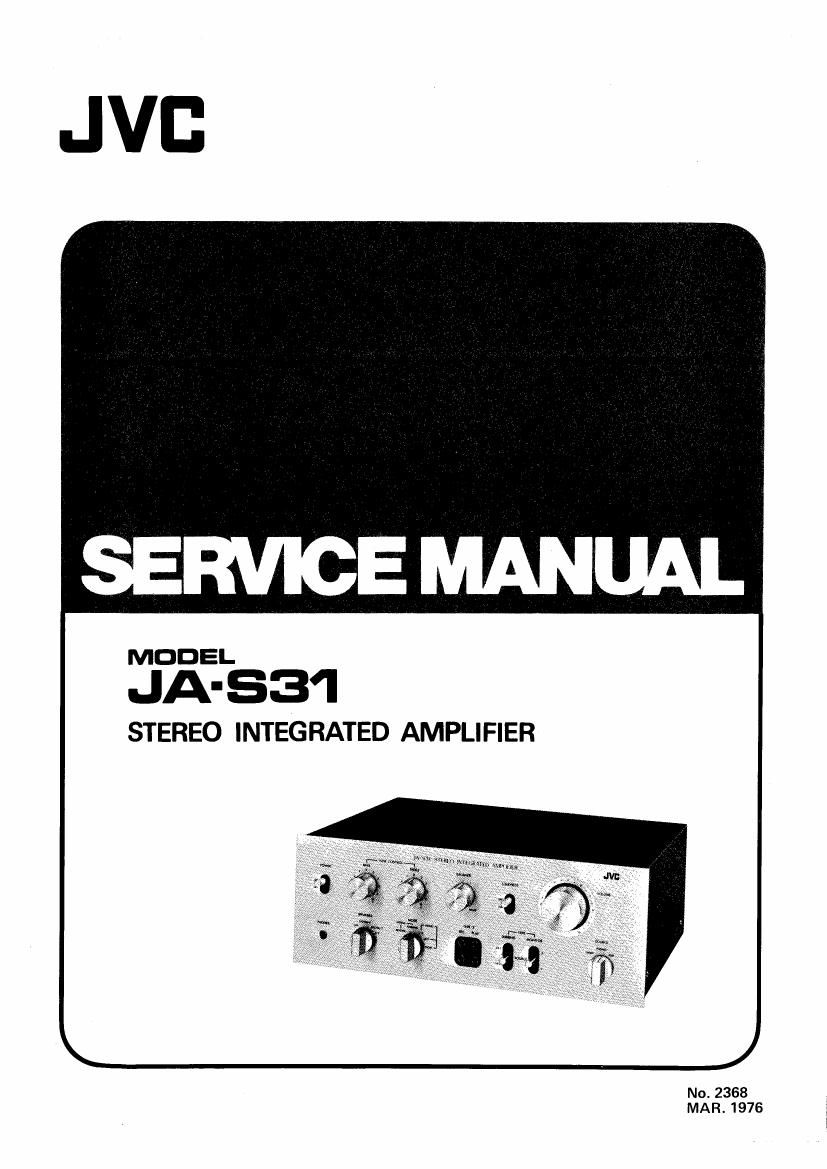

Jvc JA S31 Service Manual
This is the 22 pages manual for Jvc JA S31 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc JA S31 Service Manual (Ocr-read)
Page 2
CONTENTS
Page
1. Specifications ........................................................ 2
2. Block Diagram ........................................................ 3
3. Removal of Top Cover and Bottom Plate ...................................... 4
4. Main Parts Location and Part Numbers ........................................ 5
5. Exploded Views of Mechanical Parts
5-) Front Panel ................................................... 6
5(2) Chassis Base ................................................... 8
5-(3) Rear Panel .................................................... 9
6. Circuit Board Ass'y and Parts List
6-(1) TAP-251B Main Amp. C.B. Ass'y .................................... 11
6-(2) TAC»392 Tone Control C.B. Ass'y ................................... 15
6-(3) TSC-453 Pin Jack C.B. Ass'y ....................................... 16
6-(4) TPS-43B AC Primary C.B. Ass'y (J
8. Accessories List ....................................................... 17
9. Parts List with Specified Numbers for Designated Areas ............................. 18
10. Schematic Diagram ..................................................... 19
JA-331
No. 2368
