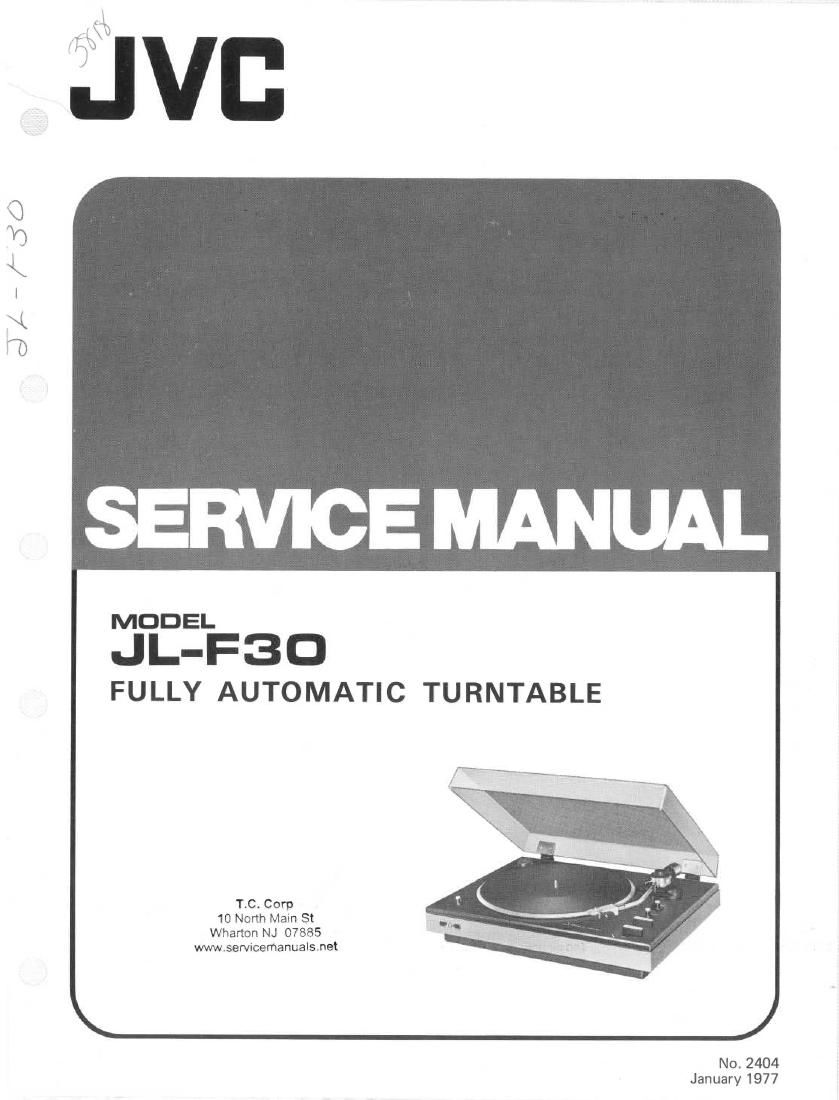

Jvc J F30 Service Manual

Page 2

Index

.3

. Features . .

2. Operation .......................

2-1. Construction diagram .......
2-2. Start mechanism

2-3. Lead-in mechanism ...............

2-4. Retum cycle starting mechanism .
2-5. Repeat mechanism ..........
2-6. Reject mechanism ...........

3. Adjustment .................
3-1. Lead-in adjustment .........
3-2. Lead-out adjustment ........

4. Replacement of Parts ...........
4-1. Cartridge ..............
4-2. Pulley ................
4-3. Mechanism chassis
4-4. Voltage setting (U, P Type) .......

. Lubrication
. Troubleshooting ...............
. Exploded View of Parts 1 ............
. List of Parts for Replacement 1 ........
. Exploded View of Parts 2 ...........
10. List of Parts for Replacement 2 ........
11. Exploded View of Parts 3 ...........
12. List of Parts for Replacement 3 ..........
13. Exploded View of Parts 4 ............
14. List of Parts for Replacement 4 .........
15. Final Packing Ass'y ...............

omuaun

16. Accessories ...................

17. Schematic Diagram .............................................

18. Parts List with Specified Numbers for Disignated Areas ........................... 20
19. Specifications ................................................ 21

1. Features

Fully automatic mechanism

* Automatic playing for records of all sizes - 30, 25,
17cm (12",10", 7).

* Cueing facility protects the record surface during manual
playing.

* Repeat memory facility for automatic playing
repetition. Set the dial to hear up to six repetitions of a
record, 0r set it for infinite repetition.

* Automatic reject facility
To stop playing a record at any point, push the
START/REJECT operation lever towards "REJECT",
and the tonearm will automatically returns to the arm
rest.

New gimbal support arm

Outstanding tone arm sensitivity is assured, because

bearings for c|ockwise/counterclockwise rotation are

provided above and under the pivot bearing.

JL-F30
No. 2404

Trackability is thanks to the TH (Tracking Hold) system ~
the axis of the balance weight is positioned lower than the
pivot bearing, so superb tracking characteristics are main-
tained even if a record is warped or if there is external
vibration.

Belt-drive system

A drive belt connects the motor pulley to the platter.
Because motor vibration is not transfered directly to the
platter, the signal-to-noise ratio is much higher than that
of rim-driven turntables.

Large platter (0.5mil diamond tip)

30.9cm diameter aluminum die-cast platter.

Diamond stylus

Anti-skating mechanism

Anti-skating force can be adjusted corresponding to the
tracking force.
