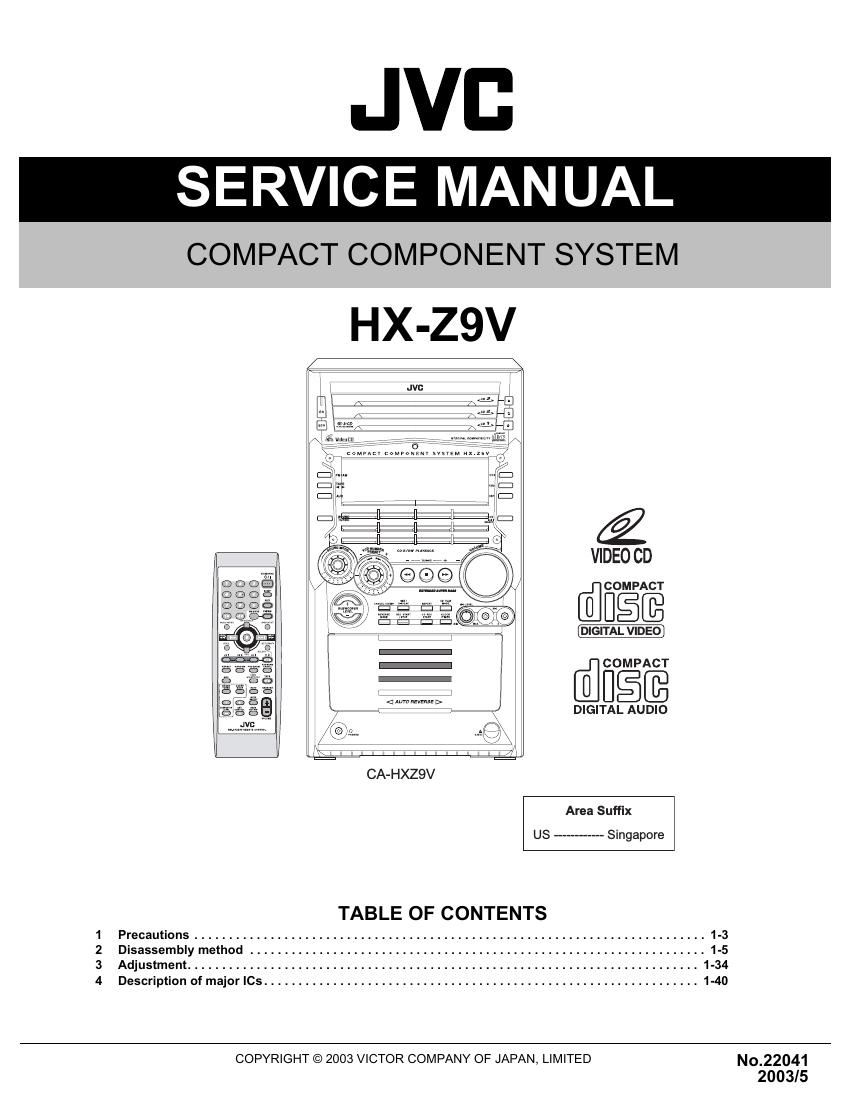

Jvc HXZ 9 V Service Manual

Page 2

SPECIFICATION

Amplifier section

Output Power (IEC 268-3)

SUBWOOFERS 75 W per channel, min. RMS, both
channels driven into 6 Q at 63 HZ with no

more than 0.9% total harmonic distortion.

MAIN SPEAKERS

30 W per channel, min. RMS, both channels driven into 6 Q at 1 kHz
with no more than 0.9% total harmonic distortion.

Audio input sensitivity/impedance

(Measured at 1 kHz, with tape recording signal 300 mV)

AUX 390 mV/50 k9
MIX 1/2 1.5 mV/5 kQ
Speakers/Impedance SUBWOOFERS 6 £2 - 16 9
MAIN SPEAKERS 6 £2 - 16 Q
SURROUND SPEAKERS 16 £2 - 32 Q

Tuner FM tuning range 8750 MHZ - 108.00 MHz
AM tuning range At 9 kHz intervals 531 kHz - 1 710 kHz
At 10 kHz intervals 530 kHz - 1 710 kHz
CD player CD capacity 3 CDs
Dynamic range 85 dB
Signal-to-noise ratio 90 dB

Wow and flutter

Immeasurable

MP3 recording format

MPEG 1/2 Audio Layer 3

Max. Bit rate

320 kbps

Cassette deck

Frequency response

Normal (type I) 50 Hz - 14 000 Hz

Wow and flutter 0.15% (WRMS)

General

Power requirement

AC 110 V /AC 127 V/AC 220 V [AC 230 V - AC 240 V (adjustable with
the voltage selector). 50 Hz / 60 Hz

Power consumption

205 W (in operation) 23 W (on standby with Ecology Mode off)

Less than 3.5 W (on standby with Ecology Mode on)

Dimensions (approx.)

205 mm x 370 mm x 370 mm (W/H/D)

Mass (approx.)

10.0 kg

Design and specifications are subject to change without notice.

1-2 (No.22041)
