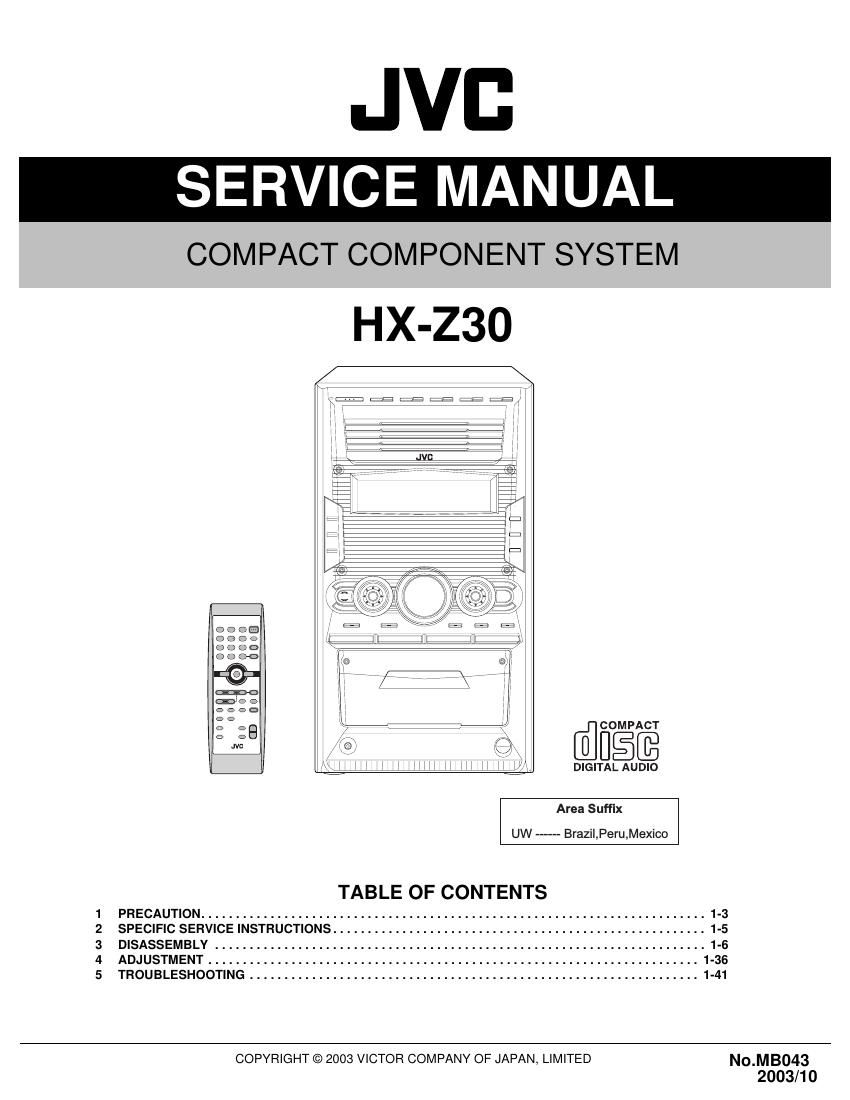

Page 1
01-5de
JVC
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
HX-Z30
[flfigfi
DIGITAL AUDIO
Area Suffix
UW ------ Brazi|,Peru,Mexico
TABLE OF CONTENTS
PRECAUTION ......................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
DISASSEMBLY ...................... . . 1-6
ADJUSTMENT ...................................... 1-36
TROUBLESHOOTING ................................................................. 1-41
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED
No.MB043
2003/10
Page 2
SPECIFICATION
Amplifier section-CA-HXZSO
Output Power (IEC 268-3) SUBWOOFERS
135 W per channel, min. RMS, driven into 6 Q at 63 Hz with
no more than 10% total harmonic distortion.
MAIN SPEAKERS
55 W per channel, min. RMS, driven into 6 £2 at 1 kHz with
no more than 10% total harmonic distortion.
Audio input sensitivity/impedance AUX
300 mV/47 kQ
(Measured atV1 kHz, with tape recording Speakers/ SUBWOOFERS 6 Q g 16 0
$9 300 m I impedance MAIN SPEAKERS e :2 - 16 0
Tuner
FM tuning range 87.50 MHz - 108.00 MHz
AM tuning range At 9 kHz intervals 531 kHz - 1 710 kHz
At 10 kHz intervals 530 kHz - 1 710 kHz
CD player
Disc capacity 5 discs
Dynamic range 87 dB
Signal-to-noise ratio 90 dB
Wow and flutter
lmmeasurable
MP3 recording format
MPEG 1/2 Audio Layer 3
Max. Bit rate
320 kbps
Cassette deck
Frequency response
Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter
0.15% (WRMS)
General
Power requirement
AC 110 V/AC 127 V/AC 220 V/AC 230 V - AC 240 V
(adjustable with the voltage selector), 50 Hz / 60 Hz
Power consumption
210 W (in operation)
28 W (on standby)
Dimensions (approx.)
205 mm x 370 mm X 380.5 mm (W/H/D)
Mass (approx)
10.5 kg
Speaker section-SP-HXZ30
Type 3-way 4-speaker Bass-Reflex Type Twin Hyper Power-Drive
Subwooters and Front Twin Woofer
Speakers Subwooter 20.0 cm (77/8 in.) cone X 1
Main woofer 13.5 cm (53/8 in.) cone X 2
Tweeter 5.0 cm (2 in.) cone ><1
Power Handling Capacity Subwooter 190 W
Main Speaker 80 W
Impedance Subwooter 6 (2
Main Speaker 6 (2
Frequency Range Subwooter 30 Hz - 818 Hz
Main Speaker 75 HZ - 30 000 HZ
Sound Pressure Level Subwoofer 81 dB/W'm
Main Speaker 88 dB/W'm
Dimensions (W x H X D)
247 mm X 452 mm x 391 mm
(9-3/4 in.>< 17-13/16 in. x 15-7/16 in.)
Mass
10 kg (22.1 lbs) each
Design & specifications are subject to change without notice.
1-2 (N0.MB043)
