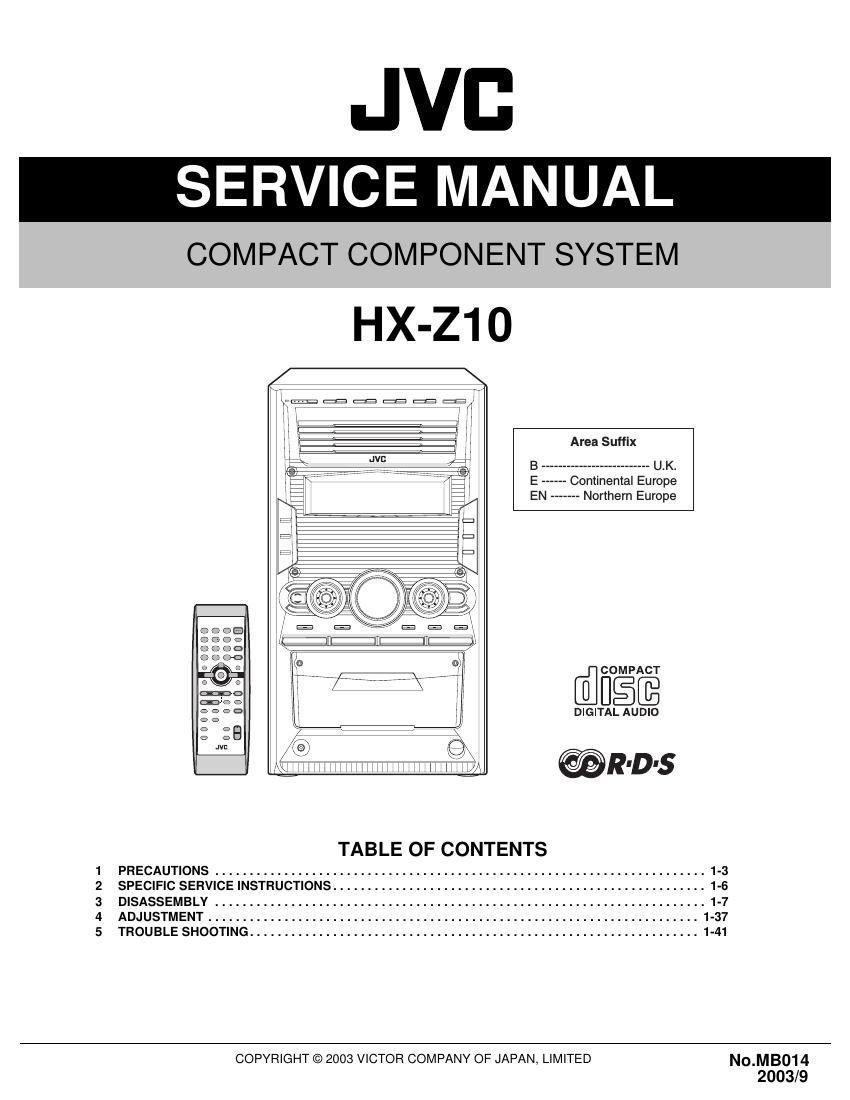

Page 1
JVC
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
HX-Z10
Area Suffix
B -------------------------- U.K.
E -- - Continental Europe
EN ------- Northern Europe
0006)
000a
000:;
0000
no
amino
soon
so
a c;
o 0
Jv:
[flfig'ffi
DIGITAL AUDIO
TABLE OF CONTENTS
PRECAUTIONS ....................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS .
DISASSEMBLY ..................
ADJUSTMENT ..........
TROUBLE SHOOTING ................................................................. 1-41
mth-l
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.MBO14
2003/9
Page 2
CA-HXZ10
SPECIFICATION
Amplifier section Output Power (IEC 268-3)
Subwoofer
125 W per channel, min. RMS, driven into 6 £2 at 63 Hz with no more than
10% total harmonic distortion
Main Speaker
35 W per channel, min. HMS, driven into 6 Q at 1 kHz with no more than 10%
total harmonic distortion.
Audio input sensitivity/i
mpedance (Measured at 1 kHz, with tape recording signal 300 mV)
AUX 300 mV/47 k!)
Speakers/impedance Subwoofer 6 Q - 16 0
Main Speaker 6 Q - 16 9
Tuner FM tuning range 87.50 MHz - 108.00 MHz
AM tuning range
522 kHz » 1 629 kHz
CD player Disc capacity
5 discs
Dynamic range 87 dB
Signal-to-noise ratio 90 dB
Wow and flutter Immeasurable
MP3 recording format MPEG 1/2 Audio Layer 3
Max. Bit rate 320 kbps
Cassette deck Frequency response Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter
0.15% (WFIMS)
General Power requirement
AC 230V , 50 Hz
Power consumption
165 W (in operation)
27 W (on standby with Ecology Mode off)
1.2 W (on standby with Ecology Mode on)
Dimensions (approx)
205 mm X 370 mm X 380.5 mm (W/H/D)
Mass (approx) 10.5 kg
SP-HXZ1O
Type 3-way 4-speaker Bass-Reflex Type Twin Hyper Power-Drive Subwoofer and Front Twin
Woofer
Speakers Subwoofer 16.0 cm (6-5/16 in.) cone X 1
Main woofer 10.0 cm (3-15/16 in.) cone X 2
Tweeter 5.0 cm (2 in.) cone X 1
Power Handling Capacity Subwoofer 165 W
Main Speaker 75 W
Impedance Subwoofer 6 9
Main Speaker 6 52
Frequency Range Subwoofer 30 Hz ~ 325 Hz
Main Speaker 70 Hz ~ 32 000 Hz
Sound Pressure Level 78 dB/W~m
Subwoofer 86 dB/Wm
Main Speaker
220 mm x 432 mm X 357 mm
Dimensions (W x H X D)
841/16 in. X 17-1/16 in. X 14-1/16 in.)
Mass
8.2 kg (18.1 lbs) each
Design and specifications are subject to change without notice.
1-2 (N0.MBO14)
