Jvc HXD 77 UJ Service Manual
This is the 51 pages manual for Jvc HXD 77 UJ Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc HXD 77 UJ Service Manual (Ocr-read)
Page 1

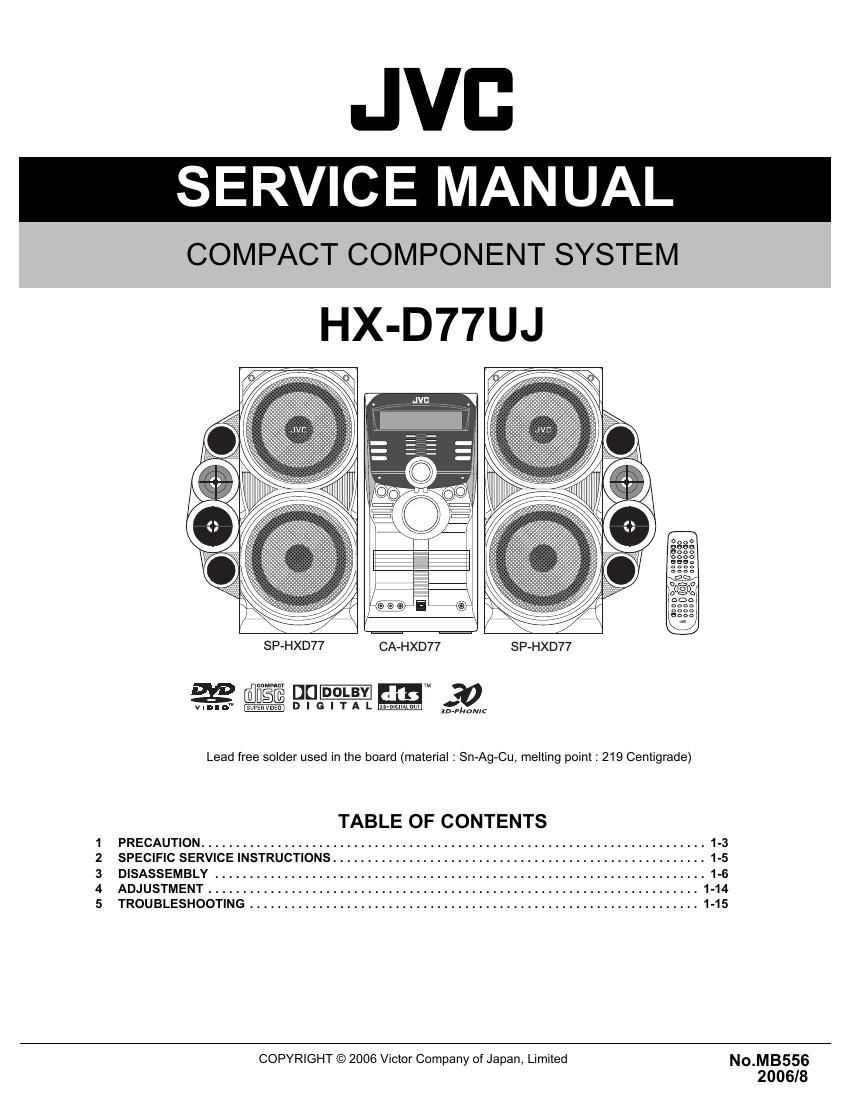

COMPACT COMPONENT SYSTEM
HX-D77UJ
SP-HXD77
¢
3D-FHONIC
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . ................... 1-5
3 DISASSEMBLY ...................................... 1-6
4 ADJUSTMENT ................................. 1-14
5 TROUBLESHOOTING ................................................................. 1-15
COPYRIGHT © 2006 Victor Company of Japan, Limited N0_MB556
2006/8
