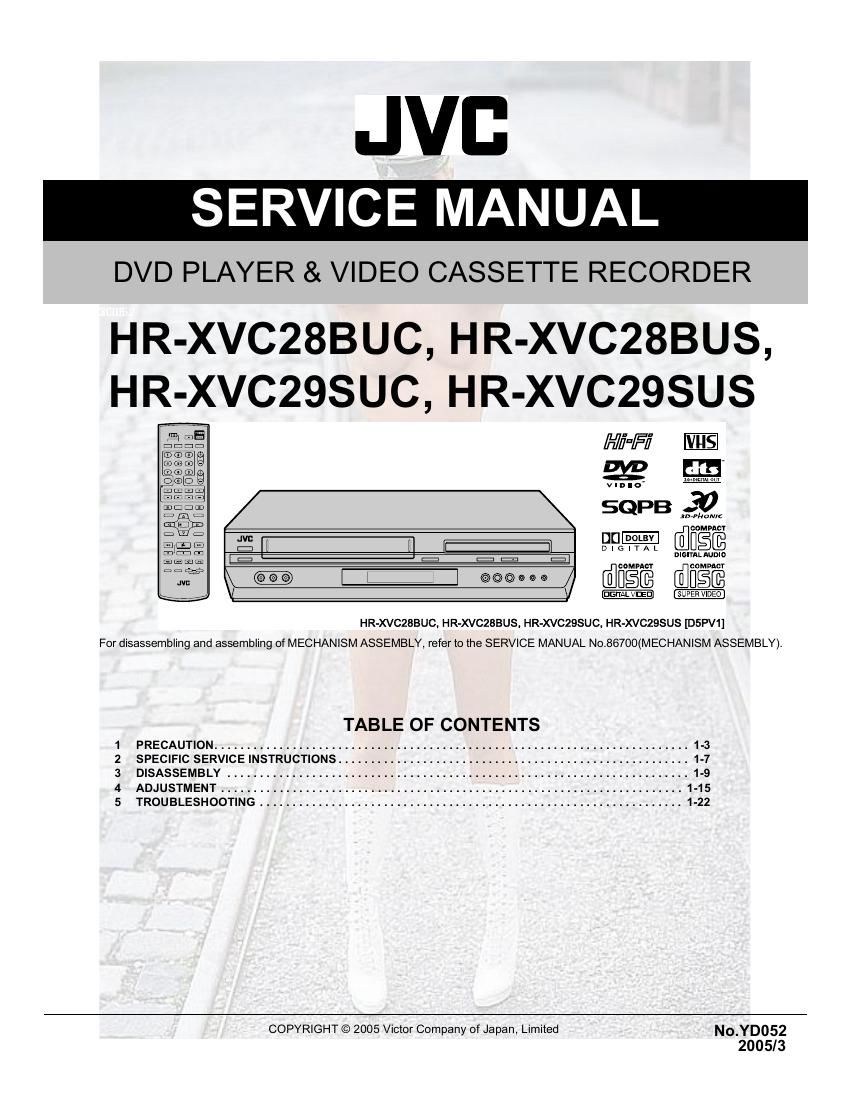

Jvc HRXVC 28 BU Service Manual

Page 2

SPECIFICATION

GENERAL
Power requirement AC 120 V, 60 Hz
Power consumption
Power on 25 W
Power off 2.0 W
Temperature
Operating 5"C to 40°C (41°F to 104°F)
Storage -20°C to 60°C (-4°F to140°F)
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 93 mm x 272 mm
Weight 4.1 kg (9.1lbs)
Format VHS NTSC standard
Maximum recording time
(SP) 210 min. with T-210 video cassette
(EP) 630 min. with T-210 video cassette
VIDEO/AUDIO (VCR deck)
Signal system NTSC color signal and EIA monochrome signal, 525 lines/60 fields
Recording system DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio 45 dB
Horizontal resolution 230 lines
Frequency range 70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output RCA connectors: [N x 1, OUT X1
VIDEO/AUDIO (DVD deck)
Signal system NTSC
Applicable disc DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics DVD:4 Hz < 22 KHZ
Frequency response CD:4 Hz - 20 KHz
S/N Ratio 90 dB
Harmonic distortion 0.1%
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Component-Y (RCA) 1.0 Vp-p/75 Q
Component-PB/PR (RCA) 0.7 Vp-p/75 9
Audio (RCA) 2 Vrms, 1 K0
Digital Audio (COAXIAL) 0.5 Vp-p/75 o
TUNER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69, CATV: 113 Channels
RF output Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 £1, unbalanced
TIMER
Clock reference Quartz
Program capacity 1-year programmable timer/8 programs
ACCESSORIES
Provided accessories RF cable, Infrared remote control unit, "AA" battery x2

- Specifications shown are for SP mode unless otherwise specified.

- E.& O.E. Design and specifications subject to change without notice.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.

1-2 (No.YD052)

Page 6

1.3 Precautions for Service

1.3.1 Handling of Traverse Unit and Laser Pickup
(1) Do not touch any peripheral element of the pickup or the actuator.

2) The traverse unit and the pickup are precision devices and therefore must not be subjected to strong shock.

3) Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the internal power supply of the tester.)

4) To replace the traverse unit, pull out the metal short pin for protection from charging.

5) When replacing the pickup, after mounting a new pickup, remove the solder on the short land which is provided at the center of
the flexible wire to open the circuit.

(6) Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the characteristics of the optical block.

Do not change the setting of these half-fixed resistors for laser power adjustment.

(
(
(
(

1.3.2 Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothingor the human body. Before repairing peripheral elements of
the traverse unit or pickup, be sure to take the following electrostatic protection:
(1) Wear an antistatic wrist wrap.
(2) With a conductive sheet or a steel plate on the workbench on which the traverse unit or the pick up is to be repaired, ground the
sheet or the plate.
(3) It solders to two short circuit sections on the substrate of a pick-up.
(4) After removing the flexible wire from the connector (CN101), short-circuit the flexible wire by the metal clip.
(5) Short-circuit the laser diode by soldering the land which is provided at the center of the flexible wire for the pickup.
After completing the repair, remove the solder to open the circuit.

" Please refer to the SECT|0N3 DlSASSEMBLY method for details. DVD SERVO CONTROL BOARD

1-6 (No.YD052)

Page 47

EN 19

0 Turn on the TV and select the VCR channel (or AV
mode).

0 Slide the TV/VCR/DVD switch on the Remote to the
right.

Slide to the
right.
[, POWER
TV I:l
DVD

AVQD
ENTER
SET UP

On-screen language Set (DVD deck)

This DVD deck offers you the choice to view on-screen
messages in 3 different languages. You can change the
language setting manually as required.

n Turn on the unit.

Press POWER.

Select the DVD deck.

On the unit
Press VCR/DVD repeatedly so that the DVD indicator
lights up on the front display panel.

On the Remote
Press DVD so that the DVD indicator lights up on the
front display panel.

Access the DVD Set Up menu screen.

E Press SET UP. mam:
m Press to select
{\ LANGUAGE."

warn unema: Enema
_erm£ arr

0N sanEM mamas Emma

Select the mode.

Press AV to move the NEW
hightlight to ON SCREEN
LANGUAGE, then press
ENTER

MENU meow: ENetlsN

-m_

Select the mode setting.

Press AV to select the desired setting, then press ENTER.

E Return to the normal screen.
Press SET UP.

Page 102

7 4 EN WARRANTY (Only in U.S.A.)

:iAA'AAiAA'AAA*iizki****A****A****A****k***Ari********AAk*********i**********k***

Jvci LIMITED WARRANTY i-iusmtv
ONLY FOR PRODUCT PURCHASED IN U.S.A. CONSUMER VIDEO 1-90

JVC COMPANY OF AMERICA (JVC) warrants this product and all parts thereof, except as set forth below ONLY
TO THE ORIGINAL RETAIL PURCHASER to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from
the date of original purchase for the period shown below. ("The Warranty Period")

PARTS LABOR
1 YB 90 DAYS

*lrilrirlr

4

fir ********

it THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND
* IN THE COMMONWEALTH OF PUERTO RICO.

1 WHAT WE WILL DO:

:7 If this product is found to be defective within the warranty period, JVC will repair or replace defective parts with new or
* rebuilt equivalents at no charge to the original owner. Such repair and replacement services shall be rendered by JVC
* during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the
* remainder of the Warranty Period. All products may be brought to a JVC authorized sen/ice center on a carry-in basis.
A Color televisions with a screen size of 27" or greater qualify for in-home service. In such cases, a technician will come
i to your home and either repair the TV there or remove and return it if it cannot be repaired in your home.

1' WHAT YOU MUST DO FOR WARRANTY SERVICE:
* Please do not return your product to the retailer

Instead, return your product to the JVC authorized service center nearest you. If shipping the product to the service
* center, please be sure to package it carefully, preterably in the original packaging, and include a brief description of
* the problem(s). Please call 1-800-252-5722 to locate the nearest JVC authorized service center. Service locations
* can also be obtained from our website http://www.vc.com. If your product qualifies for in-home service, the service
: representative will require clear access to the product.

* If you have any questions concerning your JVC Product, please contact our Customer Relations Department
A at 800-252-5722

A

i WHAT IS NOT COVERED:

* This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty
installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by
JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial
number has been altered, tampered with, defaced or removed;

. Initial installation, installation and removal from cabinets or mounting systems.

. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

. Damage that occurs in shipment, due to act of God, and cosmetic damage;

. Signal reception problems and failures due to line power surge;

User Removal Memory Devices/Video Pick-up Tubes/COD Image Sensors are covered for 90days from the date of purchase;

. Accessories;

. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);

. Products used for commercial purposes. including, but not limited to rental.

. Loss of data resultant from malfunction of hard drive or other data storage device.

here are no express warranties except as listed above.

T
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR ANY LOSS OF USE OF THE PRODUCT, INCONVIENCE, OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTAL (INCLUDING, WITHOUT LIMITATION,
DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE
WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an

implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA 1700 Valley Road
DIVISION OF JVC AMERICAS CORP. Wayne, NJ 07470
http://www.jvc.com

_.
owmsipamtscam

Ir14*}!firfir1rIrirfilr1r1r1rIrlatrfi*ifiiridddrilrlridrlrlddddddrlddr x.
itifixrlfixrlhflrlfiAntihflhtfi>1?it)?l?it18f)?itirr}Xrit)?it)t)fit)?l?it1*)?Xrit*fi1*)fIFl?>890?itit*XrXr*XrfiitXrit)?itit)1"?1**X>*X>X>***X>**X>*X>X>X>**Xrfi>f***

t
a
3
i
i
i
i
i
3
i
t

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAIL
OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY
INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet.
Retain this information for future reference.

Model No. : Serial No. :
Purchase date : Name of dealer :
