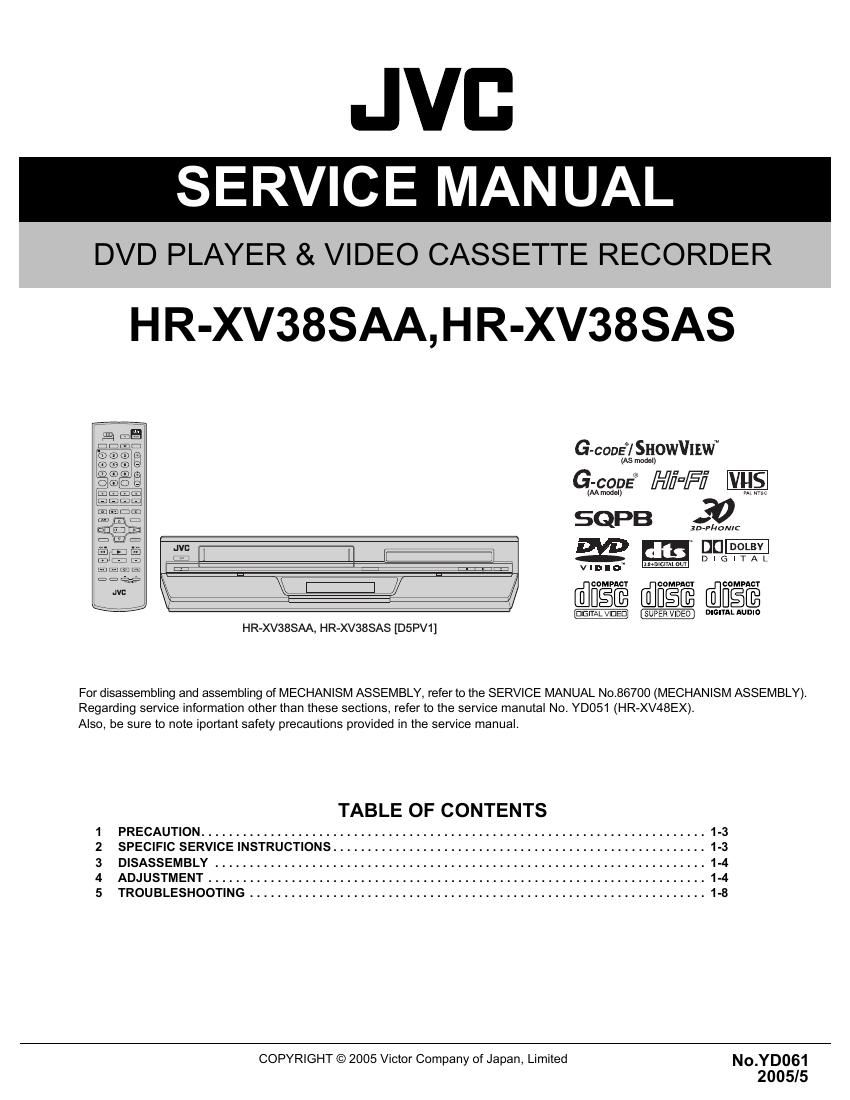

JVC

SERVICE MANUAL

DVD PLAYER & VIDEO CASSETTE RECORDER

H R-XV38SAA, H R-XV38$AS

G- «300%! SdHDOWVIEWV
G- 009E HiFfl
SQPB UVIIS
é lfiii Hg fl _" 9.56-
K mm ,

E / di_°§@ @EETE wage

_EITAI.VIEIED _UPERVIDEO DIGITALWDID

H R-XV38SAA, HR-XVBSSAS [D5PV1]

For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manutal No. YD051 (HR-XV48EX).
Also, be sure to note iportant safety precautions provided in the service manual.

TABLE OF CONTENTS

PRECAUTION ........................................ 1-3
SPECIFIC SERVICE INSTRUCTIONS . . ........................ 1-3

UIJLOONA

DISASSEMBLY ........................................... 1-4
ADJUSTMENT ....................................... 1-4
TROUBLESHOOTING .................................................................. 1-8

COPYRIGHT © 2005 Victor Company of Japan, Limited No_YD061

2005/5

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 110 V - 240 V, 50 Hz/6O Hz

Power consumption

Power on 23 W
Power off 4.5 W
Temperature
Operating 5°C to 40°C
Storage -20°C to 60°C

Operating position

Horizontal only

Dimensions (W X H X D)

435 mm X 93 mm X 272 mm

Weight 4.2 Kg
Format VHS PAL/NTSC standard
Maximum recording time
(SP) 240 min. with E-24O video cassette(PAL/MESECAM)
160 min. with T460 video cassette(NTSC)
(LP) 480 min. with E-240 video cassette(PAL/MESECAM)
(EP) 480 min. with T-160 video cassette(NTSC)

VIDEO/AUDIO (VHS deck)

Signal system

PAL-type colour signal and CClR monochrome signal, 625 lines/50 fields
NTSC colour and ElA monochrome signal, 525 lines/60 fields.

Recording system

DA4 (Double Azimuth) head helical scan system

Signal-to-noise ratio

45 dB

Horizontal resolution

250 lines (PAL/MESECAM), 220 lines (NTSC)

Frequency range

70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)

Input/Output

RCA connectors: IN X 2, OUT X 1

VIDEO/AUDIO (DVD deck)

Signal system

NTSC 3.58

Applicable disc

DVD (12 cm, 8 cm), CD (12 cm, 8 cm)

Audio characteristics

DVD14 Hz - 22 KHZ

Frequency response

CD24 HZ - 20 KHZ

SIN Ratio 90 dB
Wow and flutter Below Measurable Level
Dynamic range 90 dB

Output

Component-Y

(RCA) 1.0 Vp-p/75 o

Component- PB IPR

(RCA) 0.7 Vp-p/75 o

Audio

(RCA) 2 Vrms, 1 K9

Digital Audio

-21 dBm to -15 dBm(peak)

TUNERITIMER(VHS deck)

TV channel storage capacity

99 positions (+AUX position)

Tuning system

Frequency synthesized tuner

Channel coverage

VHF(low) : 42 MHz-175 MHz
VHF(high) : 175 MHz-470 MHz
UHF :470 MHz-870 MHz

Aerial output

UHF channels (Adjustable E28-E60)

Program capacity

1-year programmable timer / 8 programs

Memory backup time

Approx. 10 min.

ACCESSORIES

Provided accessories

RF cable, Infrared remote control unit, "R6" battery X 2

- Specifications shown are for SP mode unless otherwise specified.

- E.& O.E. Design and specifications subject to change without notice.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- "DTS" and "DTSZ.O+ Digital Out" are trademarks of Digital Theater Systems, Inc.

- G-CODE is a trademark of Gemstar Development Corporation and is registered in the following countries: Australia, China, Hong Kong,
Japan, South Korea, New ealand, and Taiwan. SHOWVIEW is a trademark of Gemstar Development Corporation and is registered in
the following countrieszAustria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Italy, Luxembourg,
Netherlands, Norway, Poland, Portugal, Russia, Slovakia, South Africa, Spain, Sweden and Switzerland. The G-CODE/SHOWVIEW sys-
tem is manufactured under license from Gemstar Development Corporation.

G-CODE and SHOWVIEW are different trademarks used to represent the same easy recording feature. However, for simplicity, only the
term G-CODE will be used in the instructions. If you use SHOWVIEW system, follow the same steps listed for the G-CODE system (AS
MODEL).

- G-CODE is a registered trademark of Gemstar Development Corporation. The G-CODE system is manufactured under license from

Gemstar Development Corporation (AA MODEL).

1-2 (No.YD061)
