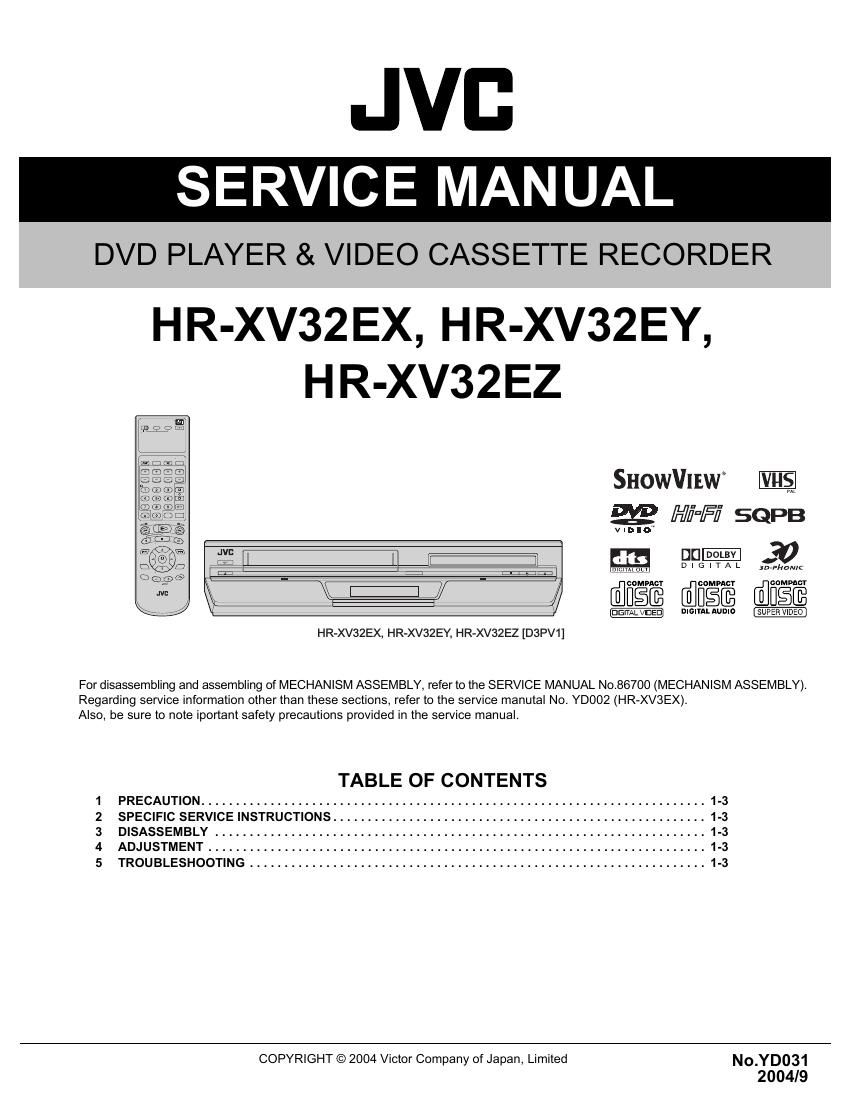

Page 1
JVC
SERVICE MANUAL
DVD PLAYER & VIDEO CASSETTE RECORDER
H R-XV32 EX, H R-XV32EY,
H R-XV32EZ
SHowVIEw
22 Hifl SQPB
VIDEO"
m? fiOi fi% I} 99,- {in
E wise [flie'ifi @iéfi
I DIGIYAI. nunlu _UPER VIDEO
HR-XV32EX, HR-XV32EY, HR-XV32EZ [D3PV1]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manutal No. YD002 (HR-XVSEX).
Also, be sure to note iportant safety precautions provided in the service manual.
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-3
3 DISASSEMBLY ....................................................................... 1-3
4 ADJUSTMENT ................................................................... 1-3
5 TROUBLESHOOTING .................................................................. 1-3
No.YD031
COPYRIGHT © 2004 Victor Company of Japan, Limited
2004/9
Page 2
SPECIFICATION
GENERAL
Power requirement
AC 220V - 240V, 50 HZ/60 Hz
Power consumption
Power on 26 W
Power off 6.0 W
Temperature
Operating 5°C to 40°C
Storage -20°C to 60°C
Operating position
Horizontal only
Dimensions (W X H X D)
435 mm X 93 mm X 272 mm
Weight 4.4 Kg
Format VHS PAL standard
Maximum recording time
(SP) 240 min. with E-240 video cassette
(LP) 480 min. with E-240 video cassette
VIDEO/AUDIO (VHS deck)
Signal system
PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio
45 dB
Horizontal resolution
250 lines
Frequency range
70 HZ to 10,000 Hz (Normal audio) 20 Hz to 20,000 HZ (Hi-Fi audio)
Input/Output
21-pin SCART connectors: lN/OUT X 1, lN/DECODER X 1
RCA connectors: VIDEO IN X 1, AUDIO IN X 1, AUDIO OUT X1
VIDEO/AUDIO (DVD deck)
Signal system
PAL
Applicable disc
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics
DVD14 HZ - 22 KHZ
Frequency response
CD:4 Hz - 20 KHZ
S/N Ratio 90 dB
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Audio (RCA) 2 Vrms, 1 K52
Digital Audio -21 dBm to -15 dBm(peak)
TUNERITIMER(VHS deck)
TV channel storage capacity
99 positions (+AUX position)
Tuning system
Frequency synthesized tuner
Channel coverage
VHF : 47 MHZ - 89 MHZ/104 MHZ - 300 MHz/302 MHZ - 470 MHz
UHF : 470 MHZ - 862 MHZ
Aerial output
UHF channels 22 - 69 (Adjustable)
Memory backup time
Approx. 10 min.
ACCESSORIES
Provided accessories
RF cable, Infrared remote control unit, R6" battery X 2
Specifications shown are for SP mode unless othenNise specified.
E.& O.E. Design and specifications subject to change without notice,
Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence
from Gemstar Development Corporation.
1-2 (N0.YD031)
