Jvc HRXV 32 EX Service Manual
This is the 34 pages manual for Jvc HRXV 32 EX Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc HRXV 32 EX Service Manual (Ocr-read)

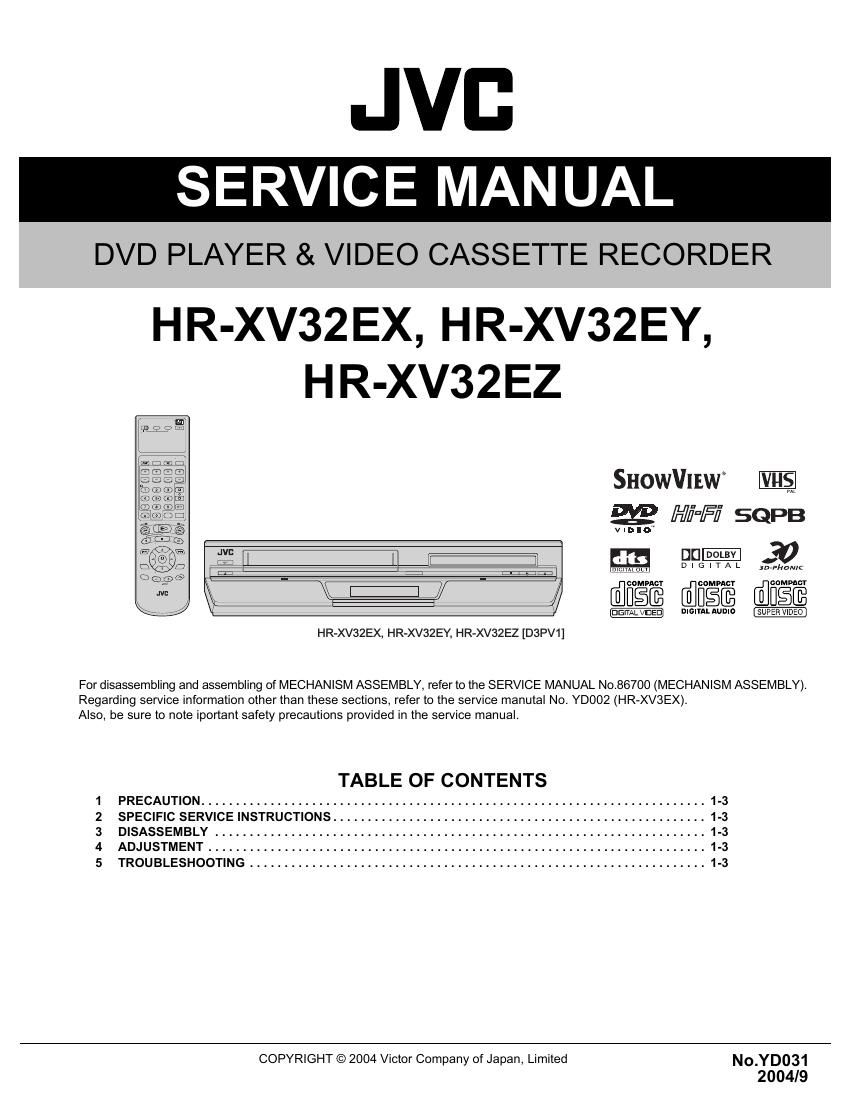

Page 1
JVC
SERVICE MANUAL
DVD PLAYER & VIDEO CASSETTE RECORDER
H R-XV32 EX, H R-XV32EY,
H R-XV32EZ
SHowVIEw
22 Hifl SQPB
VIDEO"
m? fiOi fi% I} 99,- {in
E wise [flie'ifi @iéfi
I DIGIYAI. nunlu _UPER VIDEO
HR-XV32EX, HR-XV32EY, HR-XV32EZ [D3PV1]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manutal No. YD002 (HR-XVSEX).
Also, be sure to note iportant safety precautions provided in the service manual.
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-3
3 DISASSEMBLY ....................................................................... 1-3
4 ADJUSTMENT ................................................................... 1-3
5 TROUBLESHOOTING .................................................................. 1-3
No.YD031
COPYRIGHT © 2004 Victor Company of Japan, Limited
2004/9
Page 2
SPECIFICATION
GENERAL
Power requirement
AC 220V - 240V, 50 HZ/60 Hz
Power consumption
Power on 26 W
Power off 6.0 W
Temperature
Operating 5°C to 40°C
Storage -20°C to 60°C
Operating position
Horizontal only
Dimensions (W X H X D)
435 mm X 93 mm X 272 mm
Weight 4.4 Kg
Format VHS PAL standard
Maximum recording time
(SP) 240 min. with E-240 video cassette
(LP) 480 min. with E-240 video cassette
VIDEO/AUDIO (VHS deck)
Signal system
PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio
45 dB
Horizontal resolution
250 lines
Frequency range
70 HZ to 10,000 Hz (Normal audio) 20 Hz to 20,000 HZ (Hi-Fi audio)
Input/Output
21-pin SCART connectors: lN/OUT X 1, lN/DECODER X 1
RCA connectors: VIDEO IN X 1, AUDIO IN X 1, AUDIO OUT X1
VIDEO/AUDIO (DVD deck)
Signal system
PAL
Applicable disc
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics
DVD14 HZ - 22 KHZ
Frequency response
CD:4 Hz - 20 KHZ
S/N Ratio 90 dB
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Audio (RCA) 2 Vrms, 1 K52
Digital Audio -21 dBm to -15 dBm(peak)
TUNERITIMER(VHS deck)
TV channel storage capacity
99 positions (+AUX position)
Tuning system
Frequency synthesized tuner
Channel coverage
VHF : 47 MHZ - 89 MHZ/104 MHZ - 300 MHz/302 MHZ - 470 MHz
UHF : 470 MHZ - 862 MHZ
Aerial output
UHF channels 22 - 69 (Adjustable)
Memory backup time
Approx. 10 min.
ACCESSORIES
Provided accessories
RF cable, Infrared remote control unit, R6" battery X 2
Specifications shown are for SP mode unless othenNise specified.
E.& O.E. Design and specifications subject to change without notice,
Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence
from Gemstar Development Corporation.
1-2 (N0.YD031)
