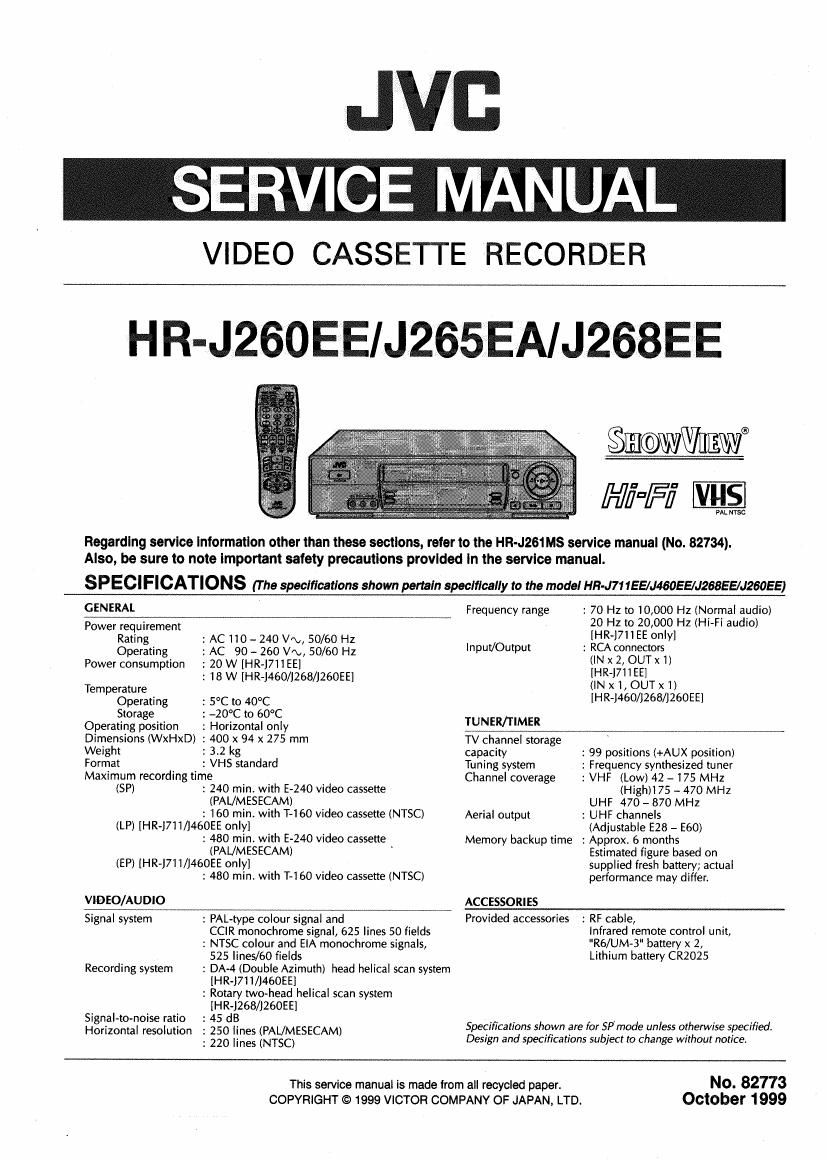

Page 1
SERVICE MANUAL
VIDEO CASSETTE RECORDER
HR-J260EE/J265EA/J268EE
0%an
Hi=Fi ES
PAL mac
Regarding service Information other than these sections, refer to the HR-J261Ms service manual (No. 82734).
Also, be sure to note important safety precautions provided in the service manual.
S P ECI FICATIONS (The specifications shown pertain specifically to the model HR-J71 155/J46055/J268EE/J260EE)
GENERAL
Power requirement
Rating : AC 110 - 240 V'\., 50/60 Hz
Operating : AC 90 ~ 260 V/\,, 50/60 Hz
Power consumption : 20 W [HR-J7ii EEI
: 18 W [HR-J460/1268/J260EE]
Temperature
Operating : 5°C to 40°C
Storage : -20°C to 60°C
Operating position
: Horizontal only
Dimensions (WxHxD) : 400 x 94 x 275 mm
Weight
Format
: 3.2 kg
: VHS standard
Maximum recording time
(SP)
2 240 min. with E-240 video cassette
(PAL/MESECAM)
2 160 min. with T-l 60 video cassette (NTSC)
(LP) [HR-J71 I/J460EE only]
: 480 min. with E-240 video cassette
(PAUMESECAM) '
(EP) [HR-J71 l/J460EE only]
VIDEO/AU DIO
: 480 min. with T-160 video cassette (NTSC)
: 70 Hz to 10,000 Hz (Normal audio)
20 HZ to 20,000 Hz (Hi-Fl audio)
[HR-1711 EE only]
Frequency range
Input/Output : RCA connectors
(IN x 2, OUTx i)
[HR-J71IEE]
(INX l,OUTx 1)
[HR-J460/1268/J260EE]
TUNER/TIMER
TV channel storage
capacity : 99 positions (+AUX position)
: Frequency synthesized tuner
: VHF (Low) 42 - 175 MHz
(Hith 75 - 470 MHZ
UHF 470 - 870 MHZ
: UHF channels
(Adjustable E28 - E60)
: Approx. 6 months
Estimated figure based on
supplied fresh battery; actual
performance may differ.
Tuning system
Channel coverage
Aerial output
Memory backup time
ACCESSO RI ES
Signal system
Recording system
Signal~to~noise ratio
Horizontal resolution
: PAL-type colour signal and
CCIR monochrome signal, 625 lines 50 fields
2 NTSC colour and ElA monochrome signals,
525 lines/60 fields
: DA-4 (Double Azimuth) head helical scan system
[HR-J711/J46OEE]
: Rotary two-head helical scan system
[HR-J268/J26OEE]
: 45 dB
: 250 lines (PAL/MESECAM)
: 220 lines (NTSC)
Provided accessories : RF cable,
Infrared remote control unit,
"Rb/UM-B" battery x 2,
Lithium battery CR2025
Specifications shown are for SPmode unless otherwise specified.
Design and specifications subject to change without notice.
This service manual is made from all recycled paper.
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN. LTD.
No. 82773
October 1999
Page 94
VICTOR cOMPANv OF JAPAN, LIMITED
VIDEO DIVISION $40894
® Printed In Japan
