Jvc HAW 600 RF Schematic

This is the 4 pages manual for Jvc HAW 600 RF Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4

Extracted text from Jvc HAW 600 RF Schematic (Ocr-read)

Page 1

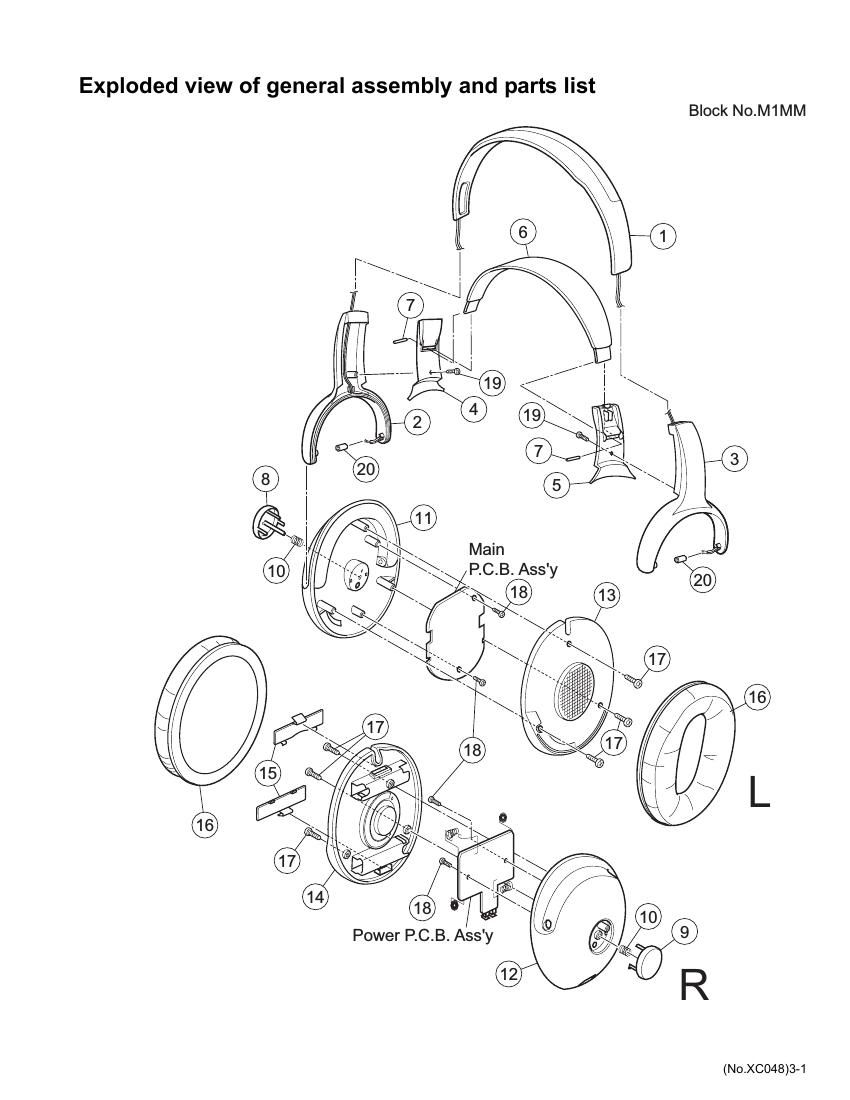

3-2(No.XC048) Parts List Block No. [M][1][M][M] Electrical parts List Block No. [0][1] Symbol No. Part No. Part Name Description Local 1 J34759-001 Headband Ass'y with connecting wire 2 J34760-001 Hanger (L) 3 J34761-001 Hanger (R) 4 J34762-001 Hanger Cover (L) 5 J34763-001 Hanger Cover (R) 6 J34764-001 Subband Assy 7 J47977-001 End Pin (x2) 8 J47901-001 Auto Scan Button for L channel 9 J47902-001 Power Button for R channel 10 J47978-001 Spring (x2) 11 J34661-002 Housing (L) "with "863MHz" print" B,G 11 J34661-001 Housing (L) "with "900MHz" print" C,J 12 J34662-002 Housing (R) "with "863MHz" print" B,G 12 J34662-001 Housing (R) "with "900MHz" print" C,J 13 J34757-001 Driver Unit Ass'y (L) with protector board 14 J34758-001 Driver Unit Ass'y (R) with protector board 15 J34766-001 Battery Cover (x2) 16 J34765-001 Ear Pad (x2) 17 QYSPSF2008M Screw for Driver unit ass'y(x6) 18 QYSPSF2006N Screw for P.C.B. ass'y(x4) 19 QYSPSF2008M Screw for Hanger cover(x2) 20 J47987-001 Tube (x2) Symbol No. Part No. Part Name Description Local PW1 J22309-001 Main P.C.B. Ass'y for J/C Model Adjusted C,JPW2 J22310-001 Main P.C.B. Ass'y for G/B Model Adjusted B,GPW3 J22311-001 Power P.C.B. Ass'y D3 J34767-001 LED AUTO SCAN Indicator D4 J34767-001 LED Power Indicator VR1 J34769-001 Variable Resistor Volume control 50K Ω x 2 SW1 J34770-001 Switch Power Switch SW2 J34771-001 Tact Switch Auto Scan Switch OT1 J34772-001 Battery contact + (x2)OT2 J34773-001 Battery contact - (x2)OT3 J34774-001 Charge contact (x2)OT4 J34775-001 Charge plate (x2) F1 J48005-001 Fuse 1A 125V

Page 2

(No.XC048)3-3 Packing materials and accessories parts list / G/B Model Packing and accessories Block No. [M][2][M][M] Symbol No. Part No. Part Name Description Local 1 J22317-002 Packing case B 1 J22317-001 Packing case G 2 J22330-001 Packing Holder B,G  3 QPC02504515P Poly Bag for transmitter B,G 4 QPA01506005 Poly Bag for receiver(headphones) B,G 5 QPA00503005 Poly Bag for conversion cord/plug adaptor B,G 6 QPA01202005 Poly Bag for AC Adaptor B,G  7 QPA01702505P Poly Bag for Instractions B,G 8 QPA00503005 Poly Bag for connection cord B,G 9 LNT0068-001A Instructions B 9 LNT0067-001A Instructions G 10 ------------ GUARANTY CARD BT-54030-1 B,G 11 J34677-001 AC Adaptor B11 J34676-001 AC Adaptor G 12 J34673-001 Conversion cord B,G 13 J34672-001 Plug adaptor B,G 14 J34674-001 Connection cord B,G 15 J47958-001 Rechargeable batteries 2pcs in PE Bag B,G 16 J22321-001 Transmitter Unit B,G 17 J47976-001 Accessory box B,G 1 9 4 12 11 14 15 2 16 7 6 Block No.M2MM 17 8 13 5 3 10
