Jvc HAW 1000 RF Schematic

This is the 4 pages manual for Jvc HAW 1000 RF Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4

Extracted text from Jvc HAW 1000 RF Schematic (Ocr-read)

Page 1

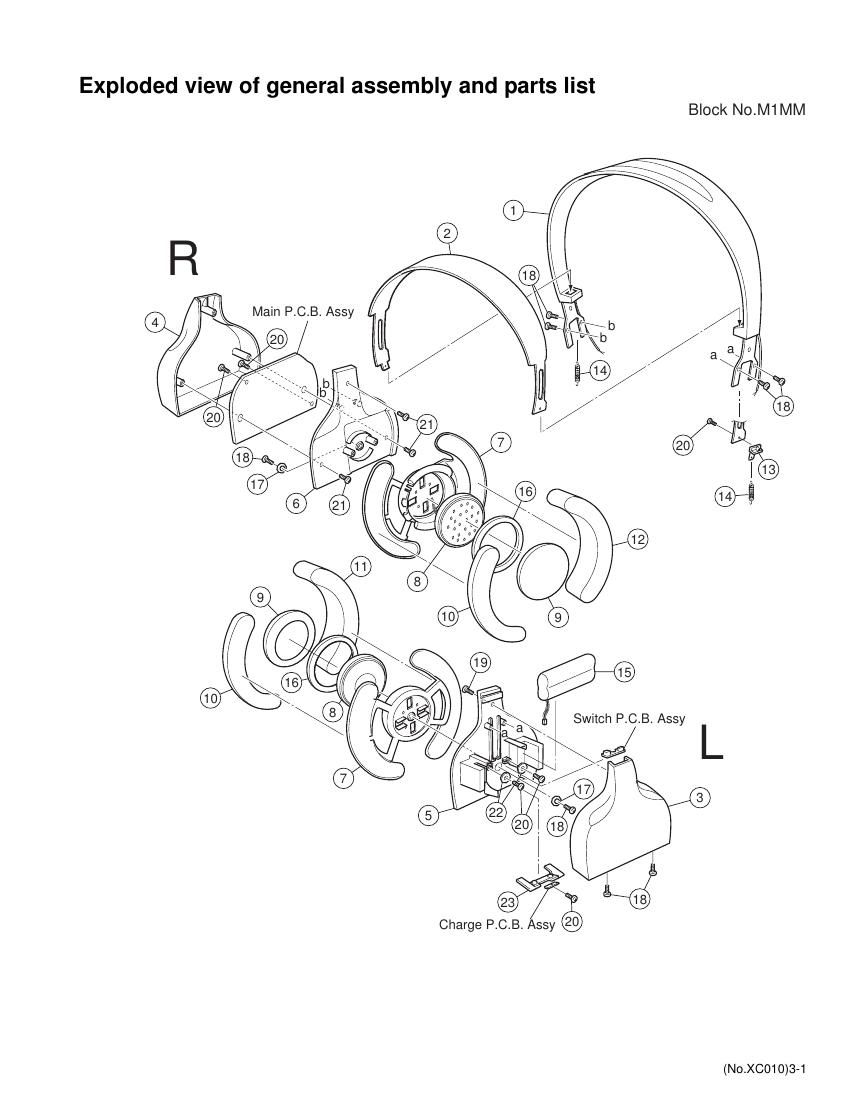

3-2(No.XC010) Parts List Block No. [M][1][M][M] Electrical parts List Block No. [0][1] Symbol No. Part No. Part Name Description Local 1 J34278-001 Headband Ass'y with connecting wire 2 J34220-001 Elastic Band 3 J34279-001 Housing(L) Ass'y with sponge(J/C Model ) J,C 3 J34279-002 Housing(L) Ass'y with sponge(G Model ) G 4 J34210-001 Housing(R) (J/C Model ) J,C 4 J34210-002 Housing(R) (G Model ) G 5 J34211-001 Housing Bottom L 6 J34212-001 Housing Bottom R 7 J34213-001 Speaker Holder Black Color(J/C Model)(x2) J,C 7 J34213-002 Speaker Holder Silver Color(G Model)(x2) G 8 J34280-001 Driver unit (x2) 9 J47306-001 Ear pad (x2) 10 J47307-001 Bar cushion Front (x2) 11 J47402-001 Bar cushion Rear Left 12 J47402-002 Bar cushion Rear Right 13 J34218-001 Swihch Stopper 14 J47308-001 Headband spring (x2) 15 J47374-001 Rechargeable Battery Ni-MH 2.4V 16 J47403-001 Speaker pad (x2) 17 J34216-001 Ball joint (x2) 18 QYSPSF2005N Screw (x8) 19 QYSDSF2012N Screw 20 QYSPSFT1703M Screw (x6) 21 QYSPSF2008N Screw (x3) 22 QYWSS225003N WASHER (x2) 23 J34217-001 Charge P.C.B Holder Symbol No. Part No. Part Name Description Local PW1 J34221-001 Main P.C.B Ass'y for J/C Model Adjusted J,CPW2 J34221-002 Main P.C.B Ass'y for G Model Adjusted GPW3 J34222-001 Switch P.C.B Ass'yPW4 J34223-001 Charge P.C.B D1 J47400-001 LED Power Indicator VR1 J47401-001 Variable Resistor Volume control 100 k Ω X 2 S300 J46463-001 Switch Power Switch,ABU8302SJ301 J47424-001 Battery Terminal Jack

Page 2
