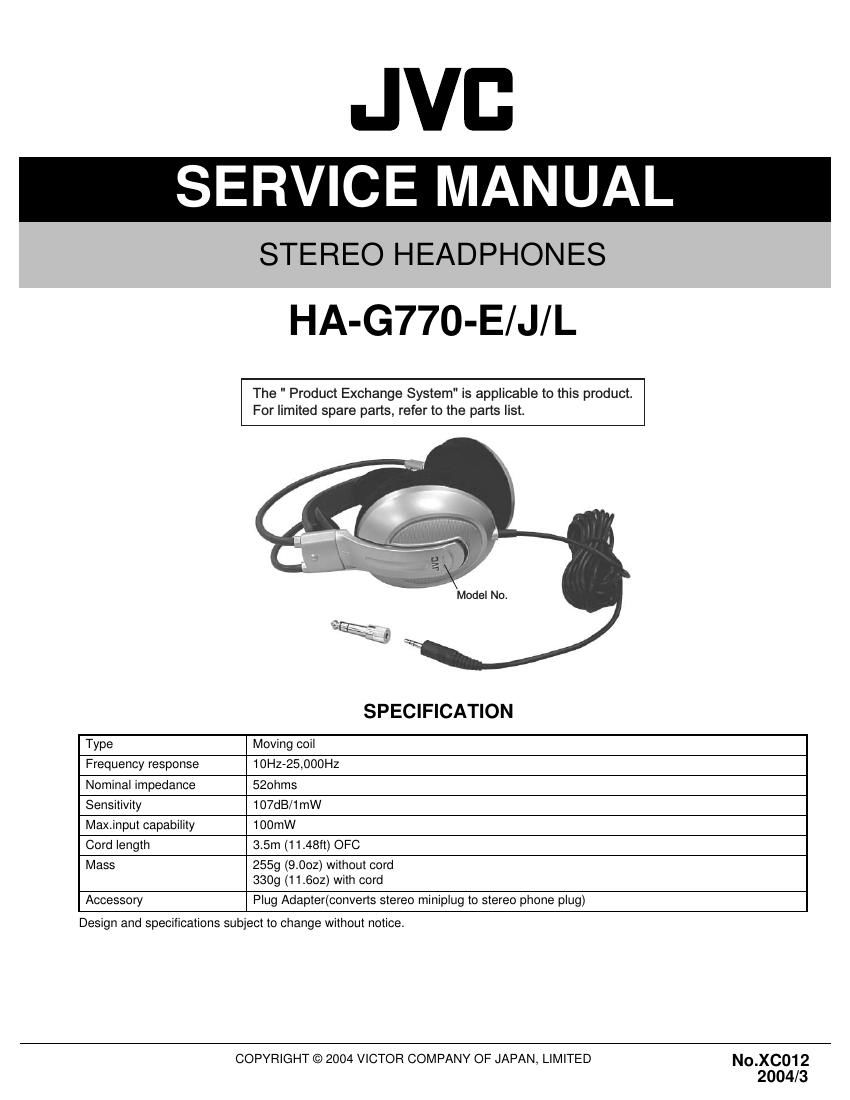

Jvc HAG 770 Service Manual

Page 1

(No.XC012) AV & MULTIMEDIA COMPANY ACCESSORIES CATEGORY 1644, Shimotsuruma, Yamato, Kanagawa 242-8514, JapanVICTOR COMPANY OF JAPAN, LIMITED WPC Printed in Japan Packing materials and accessories parts list Parts list * Parts marked () are safety parts. When replacing, be sure to use the specifide one. Wiring Diagram SYMBOL PARTS NO. PARTS NAME QTY DESCRIPTION 1 J47370-001 Ear Pad 2 2 J47373-001 Headpad Ass'y 2 3 J32699-001 Plug Adapter 1 24K gold-plated 4 BT-51007-6C Warranty information card 1 for (J) models only *Blister tray *Rear sheet *Decorated sheet *Blister cover 1 2 3 4 Headpad Ass'yHeadpad Holder How to remove the Headpad Ass'y Move the Headpad Ass'y in the direction of an arrow, and remove the Headpad Ass'y from the Headpad Holder. Block No. M1MM These parts which was marked * ( Blister cover / Blister tray / Decorated sheet and rear sheet ) will not be able to supply as our service parts. Because the blister cover and rear sheet cover together of this package are adhered by glue. Note: R(Right Driver Unit) L(Left Driver Unit) 3.5mm dia. Stereo Miniplug+ +- -
