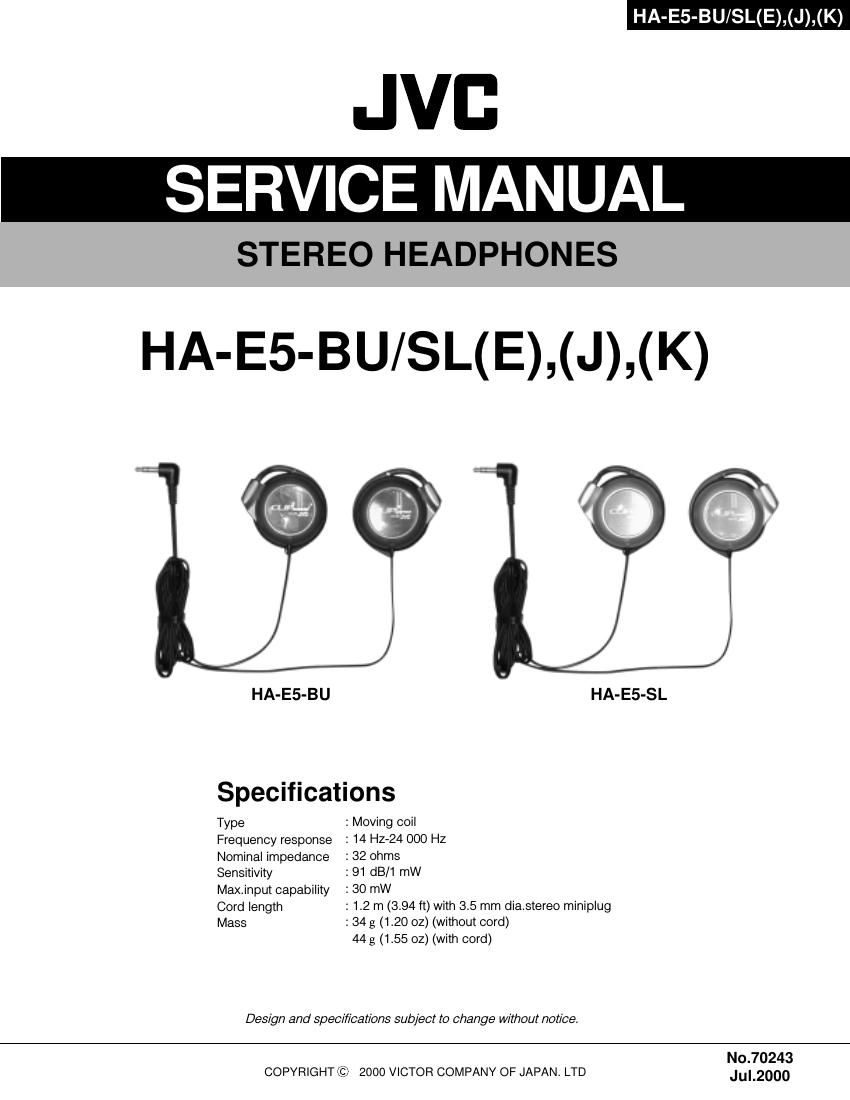

Jvc HAE 5 SL Service Manual
This is the 4 pages manual for Jvc HAE 5 SL Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc HAE 5 SL Service Manual (Ocr-read)
Page 1
2 (No.70243) Disassembly Parts marked (!) are safety parts. When replacing, be sure to use the specified one. Item No. Parts No. Parts Name Description 1 J33496-001 Housing Ass'y (L) 1 for BU model only 1 J33496-002 Housing Ass'y (L) 1 for SL model only 2 J33497-001 Housing Ass'y (R) 1 for BU model only 2 J33497-002 Housing Ass'y (R) 1 for SL model only 3 J33498-001 Driver Unit Ass'y 2 4J46773-001 Pad Urethan 2 5 J46772-001 Ear Pad 2 6 J46853-001 Cord Ass'y 1 1.2 m (3.94 ft) Q' ty HA-E5-BU/SL(E),(J),(K) 6 3 12 4 5
Page 2
How to Remove Parts Parts Replacement (No.70243) 3 Removal of the ear pads Removal of the driver unit ass'y Assemble of driver unit ass'yAs shown in figure, take off ear pad gently.Remove ear pads 5and pad urethan 4. Replacement of ear pads 5and pad urethan 4. Replacement of driver unit ass'y 3. Replacement of cord ass'y 6. Replacement of housing ass'y 1,2. HA-E5-BU/SL(E),(J),(K) Detach the Housing Ass'y from the Driver unit Ass'y by pushing the three latches to the direction mentioned on figure. Before setting driver unit ass'y to hanger, be careful to place cord into gutter.Note: Refer to "How to remove parts" below. When soldering, use a low temperature solderingiron (about 30 watts). Remove driver unit ass'y 3 from housing ass'y 1,2.
