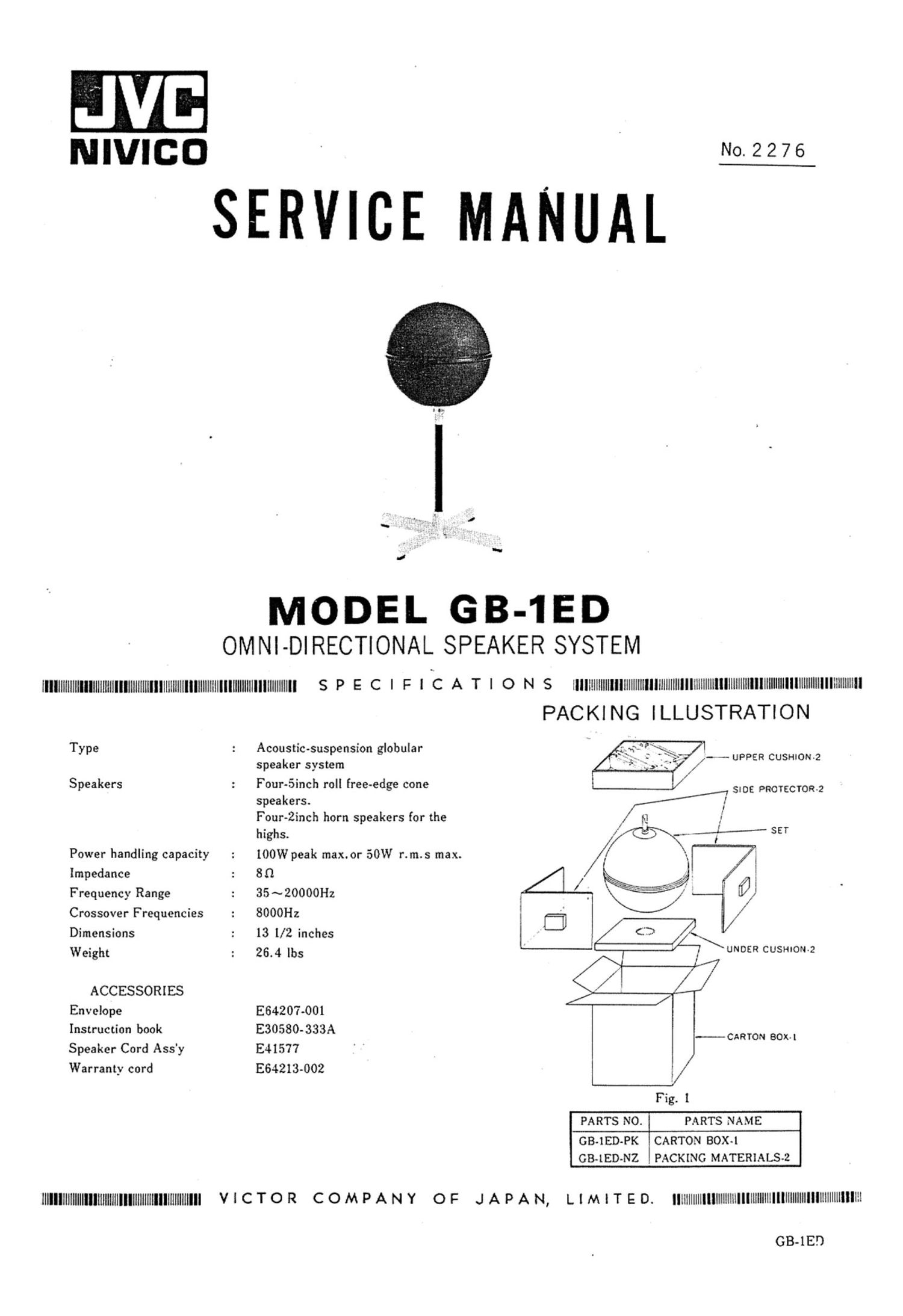

Jvc GB 1 ED Service Manual
This is the 6 pages manual for Jvc GB 1 ED Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc GB 1 ED Service Manual (Ocr-read)
Page 2
FEATURE
(1} Completely non-directional sound
a
Four 5"(I3cm) rolled free-edge woofers and four 2"(5cm) horn tweeters are radially arranged at equal intervals around the
spherical surface. This ensures the same frequencv characteristics in all directions. The sound field is the same wherever
the listener mav be.
(2) A rich and heavy bass
The bass characteristic of the spherical waves from a breathing sphere is twice as efficient as that of the 2-dimensional waves
from an oscillating diaphragm. Since the enclosure of this speaker system is l3-1/2"(34cm) in diameter its bass reproduction
is equivalent to that of a plane baffle with two 12"(30cml woofers.
(3) Floor or ceiling mounting
Using the stand GBS-IE they can stand on the floor or. to save floor space. they can be hung from he ceiling.
.:
(4-) Directional control
For audio enthusiasts who want to experiment. the directivity can be changed to suit the environmental conditions of the
room and the arrangement of speakers and program sources. The directivity control device has been designed so as to give
infinite variations in the directivity. from axial to perfectly non-directional.
