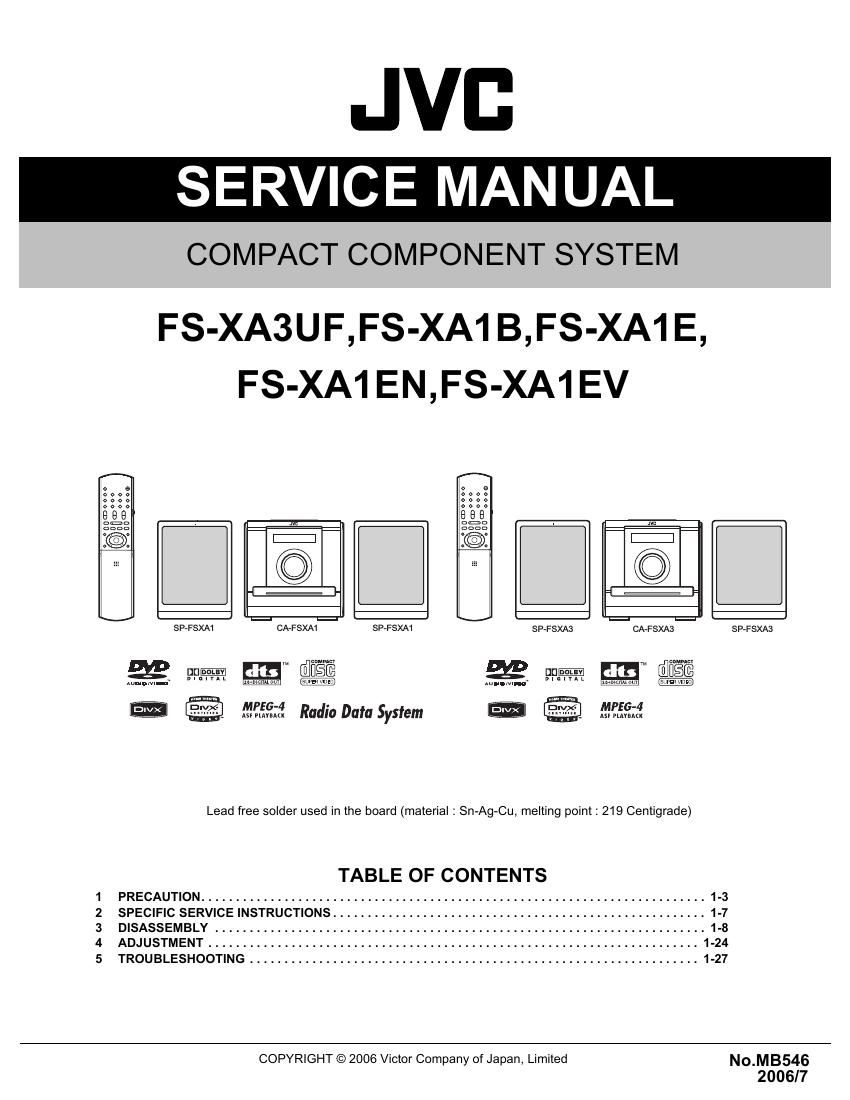

Jvc FSXA 3 UF Service Manual

Page 2

SPECIFICATION

General Power source AC 230 V , 50 HZ
AC 220 V , 50 Hz (for FS-XASUF)
Power consumption 25 W (in operation)/
4.0 W(on standby/display on)
1.0 W (on standby/display off)
Weight 2.6 kg
External dimensions (W X H X D) 150 mm X 152.6 mm X 252.9 mm
DVD player Playable discs DVD VIDEO, DVD AUDIO, VCD, SVCD, CD

CD-RIRW (VCD/SVCD/CD/MP3/WMA/JPEG/MPEG1/MPEGZ format)
DVD-Rl-RW (MP3/WMA/JPEG/DVD VIDEO/DVD VR [CPRM]/MPEG1/
MPEGZ format)

DVD-ROM (MP3/WMA/JPEG/MPEG1/ MPEG2/DVD VR [CPRM] format)

Video output

Color system

PAL
PAL/NTSC selectable (for FS-XA3UF)

Horizontal resolution

500 lines

Composite x 1

1.0 V (p-p)/75 Q,synchronization negative

S-video X 1

Y output: 1.0 V (p-p)/75 Q,synchronization negative
at PAL 0.3 v (p-p)l75 Q
at NTSC 0.286 V (p-p)/75 Q

Component X 1

Y output: 1.0 V (p-p)/75 £2
PB/PR output: 0.7 V (p-p)/75 Q

Audio output

Analog sound output

Speakers X 2

Output power 20 W per channel min., RMS, at 4 Q at 1 kHz with no more than 10% total har-
monic distortion

Fitting impedance 4 £2 to 16 Q

Headphones X 1 11 mW/32 Q

Fitting impedance 16 Q to 1 k9

Subwoofer X 1

500 mVrms/10 k9

Digital sound output (FS-XA3UF) Optical X1 -21 dBm to -15 dBm
Audio input Sound input AUX 1 400 mV/50 kg
200 mV/50 k9
AUX 2 1.5 V/50 kg
750 mV/50 k9
Tuner FM tuner Receiving frequency 87.5 MHz to 108.0 MHz
Antenna 75 Q Unbalanced type
AM (MW) tuner Receiving frequency 522 kHz to 1 629 kHz
531 kHz to 1 710 kHz (9 kHz step) (FS-XASUF)
530 kHz to 1 710 kHz (10 kHz step) (FS-XASUF)
Antenna External antenna jack (loop antenna)
Speaker Type Full range
1-way bass-reflex type
Magnetically shielded type
Speaker 8cm wood cone X 1
Frequency response 55 Hz to 20 000 Hz
Power handling capacity 20 W
Impedance 49
Sound pressure level 82 dB/W m
Dimension (W X H X D) 120 mm X 150.5 mm X 243 mm
Weight 1.7 kg each

- Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", "MLP lossless", and the double-D symbol are trademarks of Dolby
Laboratories.

' "DTS" and "DTS 2.0+ Digital Out" are trademarks of Digital Theater Systems, Inc.

- Official DivX® Certified product" "Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files" "DivX, DivX
certified, and associated logos are trademarks of DivX, Inc. and are used under licence.

- USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD [8 PROHIBITED, EXCEPT FOR USE
BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
- This product incorporates copyright protection technology that is protected by US. patents and other intellectual property rights. Use of this copy-

right protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless othen/vise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- Designs and Specifications are subject to change without notice.
