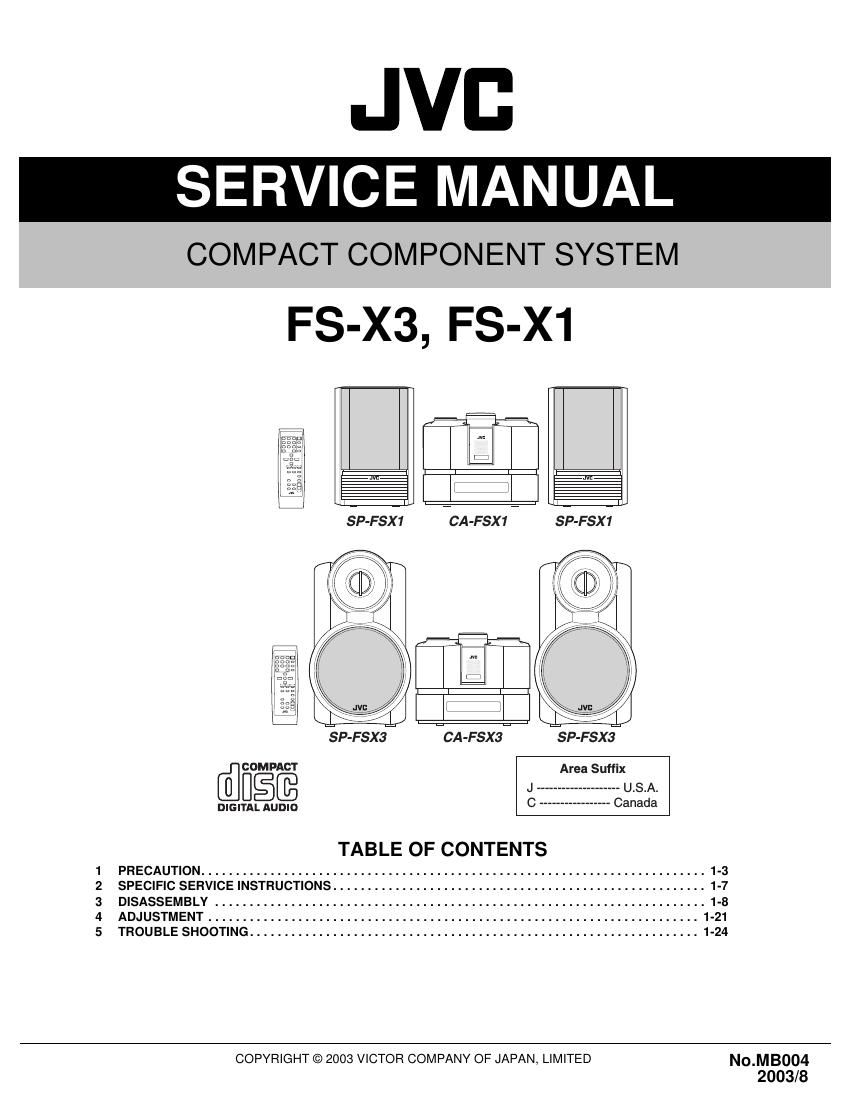

Jvc FSX 3 Service Manual

Page 2

SPECIFICATION

CA-FSX1/CA-FSX3 Amplifier Output Power 30 W per channel min. RMS driven into 4 £2 at 1 kHz
with no more than 10 % total harmonic distortion
Input Sensitivity/Impedance (1 kHz) LINE IN 210 mV/51 kQ (LEVEL 1)
520 mV/51 k9 (LEVEL 2)
Output Sensitivity/Impedance (1 kHz) LINE OUT 600 mV/5.1 kQ
OPTICAL DIGITAL OUT -23 dBm - -15 dBm
Speaker terminals MIN. 4 Q
Subwoofer out 220 mV/4.9 k9
Phones 16 Q - 1 k9
CD Player Signal-To-Noise Ratio 95 dB
Wow And Flutter Unmeasurable
Tuner FM Tuner Tuning Range 87.5 MHz - 108.0 MHz
AM Tuner Tuning Range 530 kHz -1 710 kHz
Power Power Requirements AC 120 V . 60 Hz
Specifications Power Consumption 25 W (power on mode)
1.2 W (on Standby: with display off)
4.6 W (on Standby: with display on)
Center Unit Dimensions 160 mm X 130 mm X 242 mm (W/H/D)
(6 - 5/16" x 5? 1/8" X 9 -17/32")
Mass Approx. 2.3 kg (5.1 lbs)
Speaker Specifications SP-FSX1 Type 1-Way Bass-reflex type
(330 i) Speaker 80 cm (3-3/16)cone X 1
Power Handling Capcity 30 W
Impedance 40
Frequency Range 55 Hz 20 000 Hz
Sound Pressure Level 81 dB/W-m
Dimensions 114 mm X 176 mm X 174 mm (W/H/D)
4-1/2" x 6-15/16" >< 67/8")
Mass Approx. 1.3 kg (2.9 lbs) each
SP-FSX3 Type 2-Way Bass»reflex type

Speaker (Woofer)

10.0 cm (3-15/16") cone ><1

Speaker (Tweeter)

2.0 cm (13/16") dome ><1

Power Handling Capcity 30 W
Impedance 4 (2

Frequency Range 55 Hz 40 000 Hz
Sound Pressure Level 85 dB/W'm

Dimensions 147 mm X 246 mm X 210 mm (W/H/D)
(5-13/16" >< 9»11/16">< 8-5/16)
Mass Approx. 2.4 kg (5.3 lbs) each

Design and specifications are subject to change without notice.
