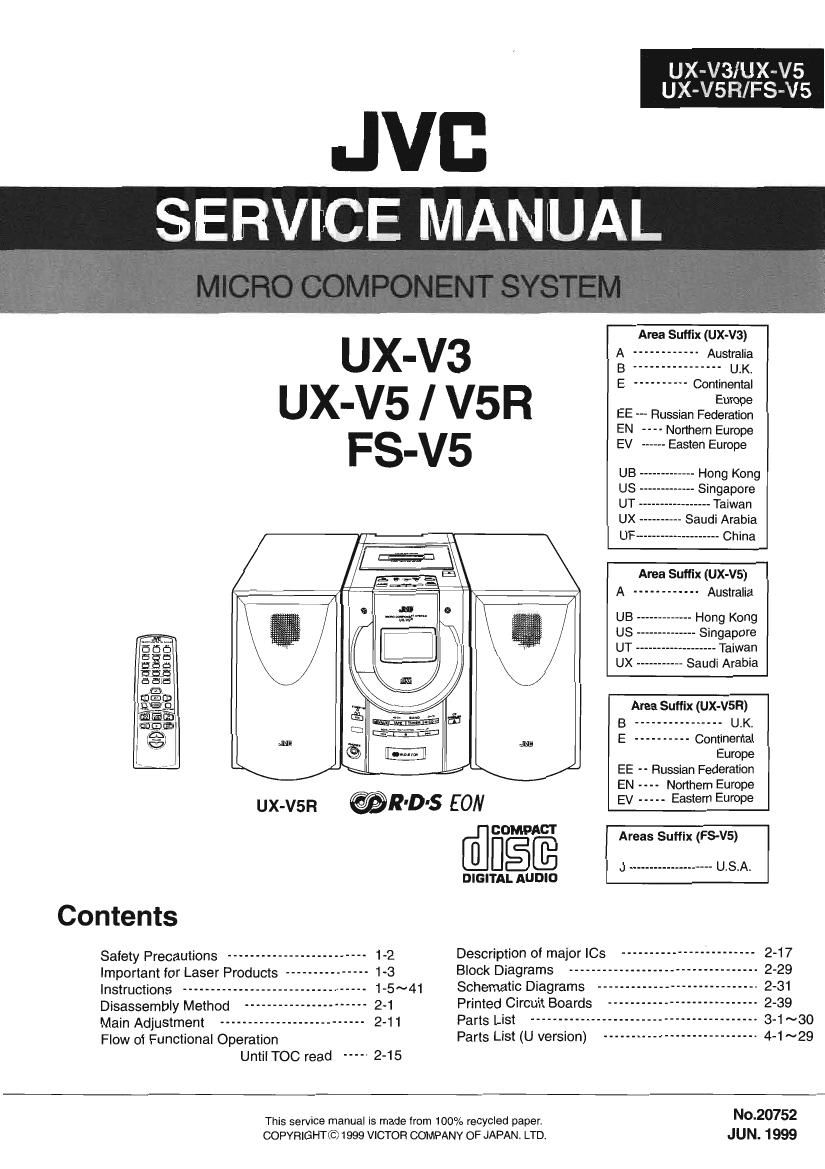

Page 1

UX~V3IUX-V5

UX-V5R/FS-V5

JVB
SERVICE llVlANlUAL

Area Suflix (UX-V3)
U X'V3 A ------------ Australia
B ------ U.K.
E ---------- Continental
UX-V5 / V5R
EE --- Russian Federation
EN Norlhem Europe

FS v5 EV ------ Easten Europe

-
Hong Kong

- Singapore
----- Taiwan

Area Suffix (UX-VS)
A ------------ Australia
UB Hong Kong
US -- Singapore
UT - Taiwan
UX --- -- Saudi Arabia
Area Suffix (UX-VSR)
B ---------------- U.K.
E ---------- Continental
Europe

EE -- Russian Federation
EN ---- Northern Europe

ux-vsn @R-D-S EON EV ----- Easier" Elma
@commcr Areas Suffix (FS-VS)
USE J -------------------- U.S.A.
DIGITAL AUDIO
Contents
Safety Precautions ------------------------- 1-2 Description of major ICs
Important for Laser Products --------------- 1-3 Block Diagrams ----------
Instructions --------------------------------- 1»5~41 Schematic Diagrams
Disassembly Method -- Printed Circuit Boards
Main Adjustment -------------------------- 2-11 Parts List -.._._: -------- -
Flow of Functional Operation Parts List (U verSIon) ---------------------------- 4-
Until TOC read ----- 2-15

This service manual is made from 100% recycled paper. No-20752
COPYRIGHT© 1999 VICTOR COMPANY OF JAPAN. LTD. JUN. 1999

Page 2

UX-V3/UX-V5
UX-V5Ft/FS-V5

-Safety precautions

1,This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (A) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same salety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4.The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage current check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester, measure
the leakage current from each exposed metal parts of the cabinet,particularly any exposed
metal part having a return path to the chassis. to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,5009 10W resistor paralleled by
a 0.1511 F AC-type capacitor between an exposed

metal part and a known good earth ground. féxgéfihgggm
Measure the AC voltage across the resistor with the ohms/volts,

AC voltmeter. or more sensitivity)
Move the resistor connection to each exposed metal *

part, particularly any exposed metal part having a 0.15;: ACTYPE

return path to the chassis, and measure the AC .
voltage across the resistor. Now reverse the plug in -_u- , 5:232:15

the AC outlet and repeat each measurement voltage each exposed
measured any must not exceed 0.75 V AC (r.m.s.). 15009 10W metal part.

This corresponds to 0.5 mA AC (r.m.s.).
Good earth ground

Warning

1.This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5." mains voltage selector is provided, check setting for local voltage.

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of pretorming repair of this system.

1-2

Page 49

l Loading motor (Refer to Fig. 19.)

~ Remove the FRONT board, CD DOOR SW board and
CD player assembly from the front panel assembly.

1. Disengage the belt lrom the loading motor and then
remove it and two screws T from the CD player
assembly.

ICD door assembly (Refer to Fig. 20.)

1. Remove the two screws U fastening the CD door
assembly.

2. Flemove the two lock keys 0 for unhooking the CD door
assembly, and then remove the CD door assembly
from the front panel while moving it in the direction of
the arrow.

3. Draw out the shaft and remove the CD door base.

Note: For reassembling the CD door assembly to the main
frame, insert the CD door assembly into the two slits
d on the front panel and fasten it with the two lock
keys 0.

ILCD board assembly
(Refer to Fig. 21 and 22.)

1. Open the CD door and remove three screws V
fastening the LCD (cover) inside the CD door.
Unhook the LCD board assembly from four pawts d of
the board case.

V

Fig.21

UX-V3/UX-V5
UX-VS R/FS-V5

Loading motor T

Belt

CD mechanism assembly
Fig.19

CD door base , Shaft

Front Panel Lock key 0 (Pawl c 7)
Fig.20

Pawl d Cover

Case

Fig.22
2-7

Page 140

CD Mechanism Assembly and Parts List

KSM-33AAN

Block N0. MI EI

UX-V3/UX-V5
UX-V5R/FS-V5

6
5
4
3
w ICD Mechanism Assembly Parts List
A IIem Parts Number Pans Name Q'ly Description Area
1 2-625-415-05 CHASSIS 1
2 X-2625A48571 SA MOTOR ASSY 1
2 3 3732-988-01 SCREW 1
4 1-946418-21 HARNESS 1
5 2-625-410-01 GEAR(B) 1
e 7-6277852-17 SCREW 2 FOR RACK
7 x-2525-171-2 FEED MOTOR ASSY 1
- 8 1-570»771-1 1 SWITCH 1
9 24525-62341 SCREW 2 FOR SWITCH
1o 27625-412-02 LEAF SPRING 1
11 X-2625-483~1 SHAFT GEAR 1
12 2-625-623-01 SCREW 1 SHAFT GEAR
1 13 2625-41101 GEAR GUIDE 1
14 87848»289-31SA OPTICAL PICK up 1
15 24325-41402 RACK 1
1e 7-627-852-18 SCREW 2 FOR MOTOR
A i B c D E

4-6
