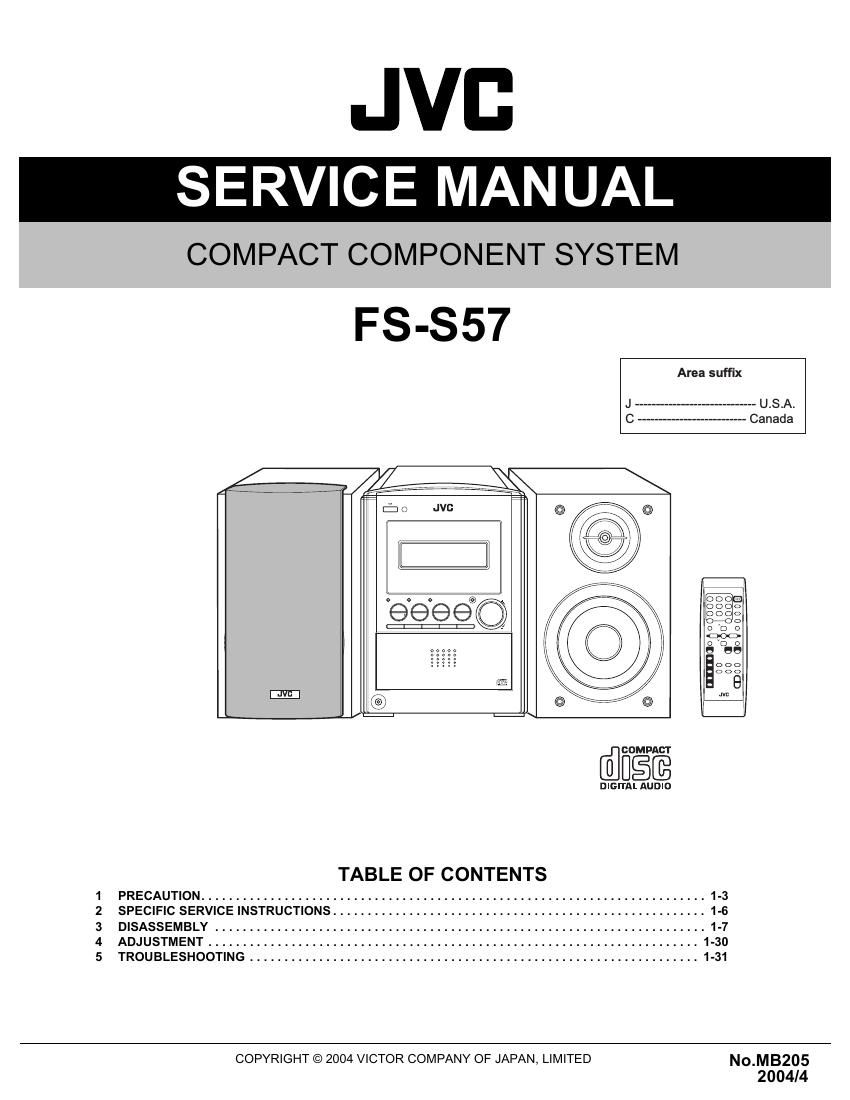

Jvc FSS 57 J Service Manual
This is the 71 pages manual for Jvc FSS 57 J Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc FSS 57 J Service Manual (Ocr-read)
Page 2
SPECIFICATION
Amplifier Section
Output Power
74 W per channel, min. RMS, driven into 6 Q at 1 kHz with no more
CA-FSS57 than 10% total harmonic distortion
Analog input sensitivity/Impedance (at 1 kHz) AUX/DVD24OO mV/48 ktz
Speakers/Impedance 6 £2 - 16 (2
Tuner FM tuning range 875 MHz-1080 MHZ
AM tuning range 530 kHz-1 710 kHz
CD player CD Capacity 5 CDs
Dynamic range 87 dB
Signal-to-noise ratio 90 dB
Wow and flutter lmmeasurable
General Power requirement AC 120 V , 60 Hz
Power consumption
110 W (at operation)
17 W (on standby)
1.4 W (in power save mode)
Dimensions (W/H/D) (approx.)
175 mmx239.5 mm><378 mm (6 15/16 in. X9 1/2 in. X 14 15/16 in.)
Mass (approx.)
714 kg (16.3 lbs)
Speaker Section
SP-UX557
Type
2-way bass-reflex type
Speakers
Woofer 12 cm cone ><1
Tweeter 4 cm cone X 1
Power handling capacity 60 W
Impedance 6 9
Frequency range 53 HZ to 30 kHz
Sound pressure level 84 dB/W-m
Dimensions (W/H/D) (approx.)
145 mm X 239.5 mm X 202 mm (5 3/4 int x 91/2in.>< 8 in.)
Mass (approx.)
22 kg (49 lbs) each
Design and specifications are subject to change without notice.
1-2 (NotMBZOS)
