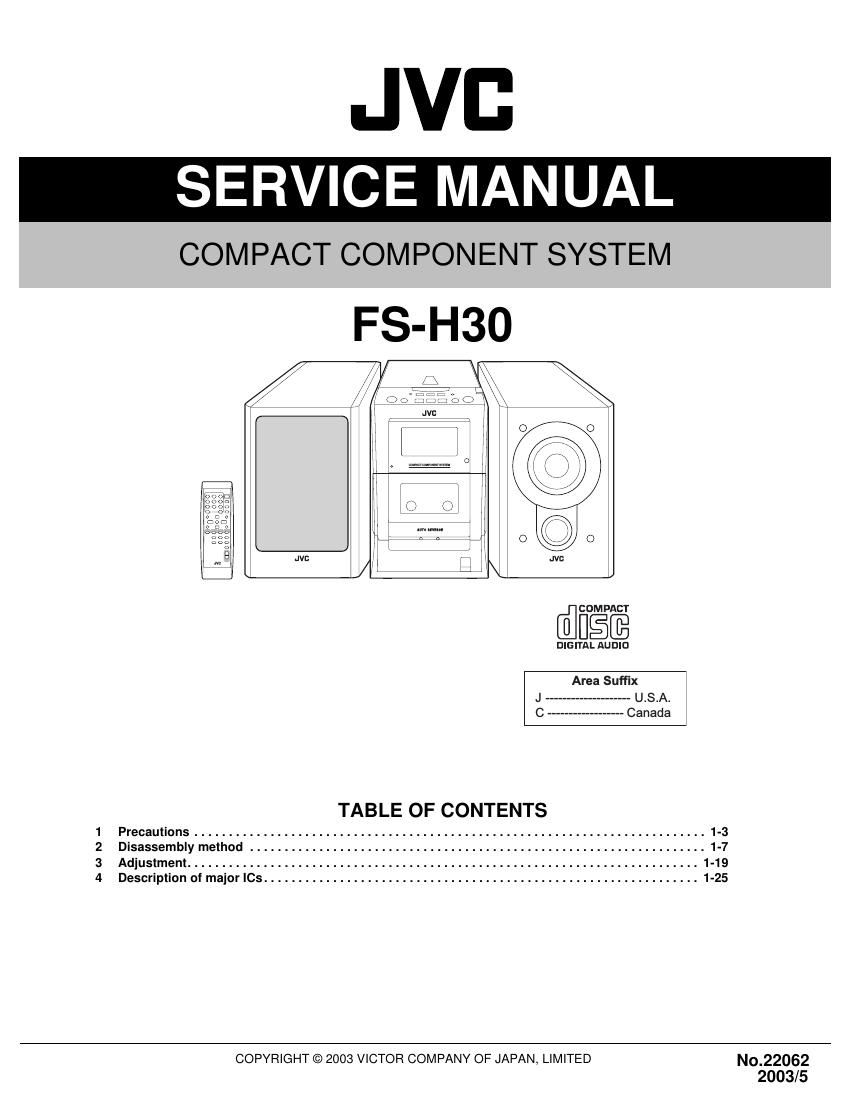

JVC
SERVICE MANUAL

COMPACT COMPONENT SYSTEM

JVI.
[flfiéfifi
DIGITAL AUDIU
Area Suffix
J -------------------- USA.
C ------------------ Canada
TABLE OF CONTENTS
1 Precautions .......................................................................... 1-3
2 Disassembly method ............................................ 1-7
3 Adjustment .......................................................................... 1-19
4 Description of major le ............................................................... 1-25
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No_22062

2003/5

Page 2

SPECIFICATION

Amplifier Output Power 20 W (10 W + 10 W) at 4 £2 (10% THD)
12 W per channel, min. RMS, driven into 49
at from 80 Hz to 15 kHz with no more than
10% total harmonic distortion.
Audio input sensitivity/Impedance (at 1 kHz) AUX 500 mV/48.75 kn
Speakers/Impedance 4 Q
Tuner FM tuning range 87.5 MHz » 108.0 MHz
AM tuning range 530 kHz - 1 710 kHz
CD player Dynamic range 85 dB
Signal-to»noise ratio 90 dB
Wow and flutter Immeasurable

Cassette deck

Frequency response

Normal (type I)

50 HZ» 15000 Hz

Wow and flutter

0.15% (WRMS)

Speaker Speaker units Full range 8.0 cm (3 3/16 in.) cone X 1
Impedance 4 51
Dimensions (approx.) 135 mm X 203 mm x 190 mm (W/H/D)
(5 3/8 in. X 8 in. X 7 1/2 in.)
Mass (approx.) 1.7 kg (3.8 lbs) each
General Power requirement AC IN 120, 60 Hz
DC IN 12 V, 4 A
Power consumption 35 W (at operation)
3.0 W (on standby)

Dimensions (approx.)

412 mm X 208 mm x 275 mm (W/H/D)
(16 1/4 in. X8 1/4 in. X 10 7/8 in.)

Mass (approx.)

6.5 kg (14.4 lbs)

Design and specifications are subject to change without notice.

1-2 (No.22062)
