Jvc EXD 5 Service Manual

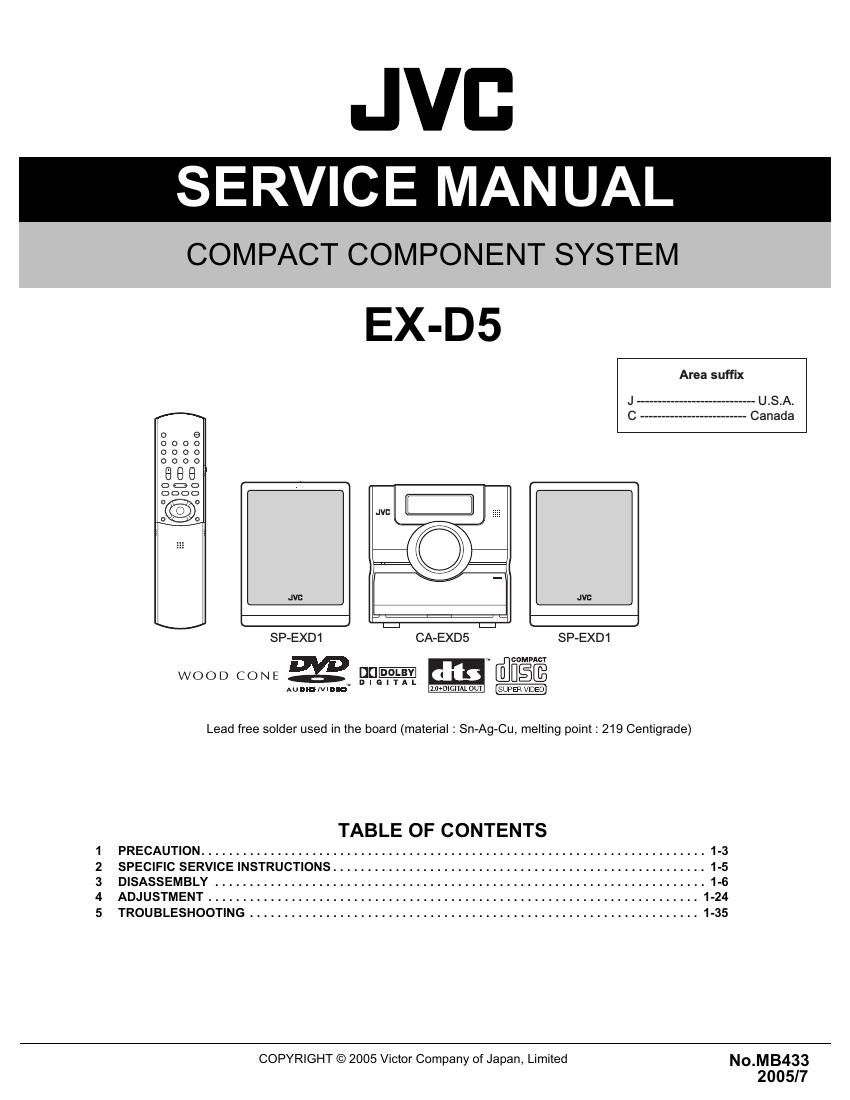

Page 1

JVC

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

EX-D5

Area suffix
-- USA.
Canada
SP«EXD1 CA-EXD5 SP-EXD1
N COMPACT
WOOD CONE m PF ('13 @HSIE
mummy
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. .
3 DISASSEMBLY ...................
4 ADJUSTMENT ..........
5 TROUBLESHOOTING ................................................................. 1
COPYRIGHT © 2005 Victor Company of Japan, Limited No_MB433

2005/7

Page 2

SPECIFICATION

General Power source AC 120 V . 60 Hz
Power consumption 25 W (in operation)
1.0 W (on standby)
Weight 3.0 kg (6.7 lbs)
External dimensions (W X H X D) 150 mm X 152 mm X 246 mm (5-15/16 in. X 6 in. X 9-11/16 in.)
DVD player Playable discs DVD VIDEO, DVD AUDIO, VCD,SVCD, CD, CD-R/RW (CD, VCD,MP3.

WMA, JPEG format),DVD-R/-RW (video format)

Video output

Color system

NTSC

Horizontal resolution

500 lines

Composite X 1

1.0 V (p-p)/75 Q, synchronization negative

S-video x 1

Y output: 10 V (p-p)/75 £2, synchronization negative
C output: 0.286 V (p-p)/75 Q

Component X 1

Y output: 10 V (p-p)/75 £2
PB/PR output: 0.7 V (p-p)l75 £2

Audio output

Analog sound output Speakers X 2

Output power: 18 W per channel. min. RMS, at 4 Q at 1 kHz with no more
than 10% total harmonic distortion.
Fitting impedance: 4 £2 to 16 £2

Headphones X 1

11 mW/32 Q
Fitting impedance: 16 Q to 1 k0

Subwoofer X 1

500 mVrms/1O k9

Digital sound output Optical X 1 -21 dBm to -15 dBm
Audio input Sound input AUX X1 400 mV/50 k9
USB Wireless Transmission The USB wireless transmitter supplied with this System supports Direct Se-
quence Spreading Spectrum (DSSS) using 2.4 GHz frequency band.
Tuner FM tuner Receiving frequency 875 MHz to 108.0 MHz
Antenna 75 Q- Unbalanced type
AM tuner Receiving frequency 530 kHz to 1 710 kHz
Antenna External antenna jack (loop antenna)
Speaker Type Full range
1-way bass-reflex type
Magnetically shielded type
Speaker 8cm (3 3/16 inches) cone X 1
Frequency response 55 to 20 000 Hz
Power handling capacity 30 W
Impedance 40
Sound pressure level 80 dBNV m

Dimension (W x H X D)

120 mm X 151 mm x 241 mm (4-3/4 in. X 6 in. X 9-1/2 in.)

Weight

1.8 kg (4.0 lbs) each

Designs and specifications are subject to change without notice.

1-2 (No.MB433)
