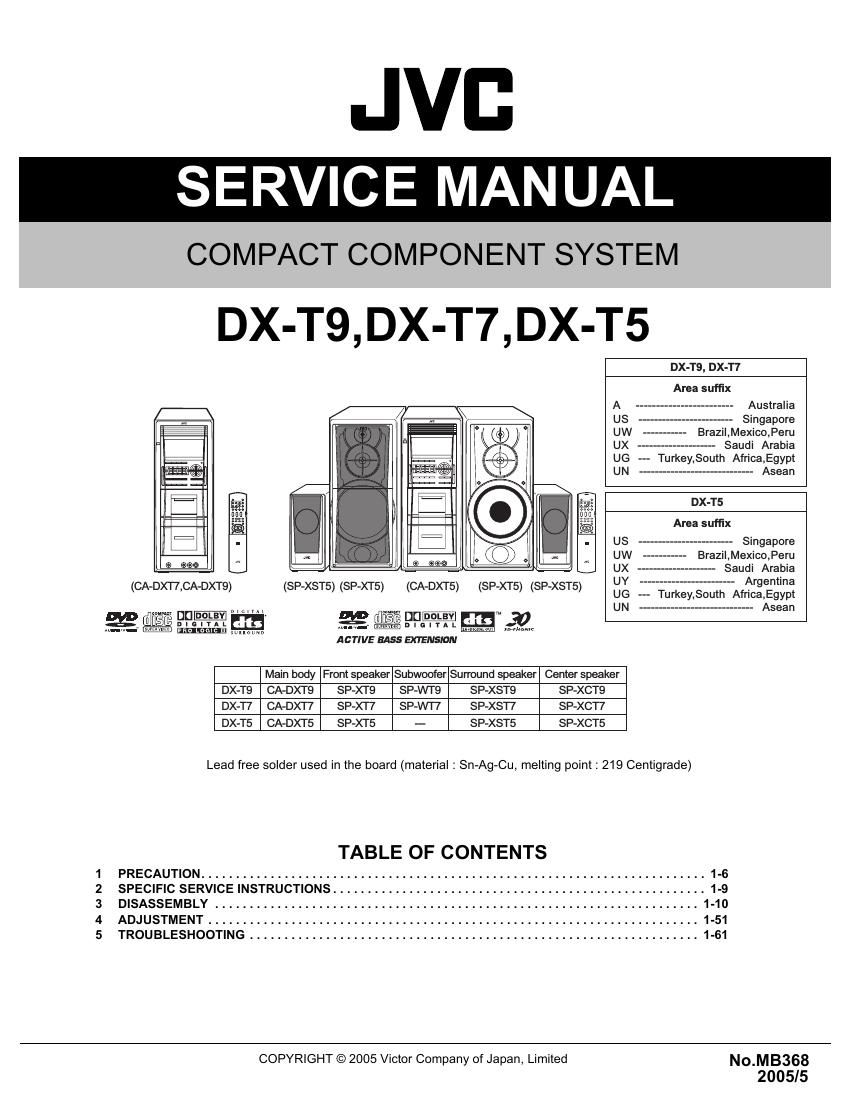

Jvc DXT 7 Service Manual

Page 2

SPECIFICATION

CA-DXT9
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Q at 1 kHz
with no more than 10% total harmonic distortion
CENTER SPEAKER 140 W per channel, min. RMS, driven into 6 £2 at 1 kHz
with no more than 10% total harmonic distortion
SURROUND SPEAKERS 140 W per channel, min RMS, driven into 6 £2 at 1 kHz
with no more than 10% total harmonic distortion
SUBWOOFERS 150 W per channel, min RMS, driven into 4 £2 at 1 kHz
with no more than 10% total harmonic distortion
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm :30 nm)
Audio input sensitivity/ AUX 300 mV/47 k9
Impedance MIC 1/2 3.0 mV/5O ko
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75 Q
S-VIDEO Y (luminance):1 V(p-p)/75 Q
C (chrominance, burst):0.286 V(p-p)/75 Q
COMPONENT (Interlace/Progressive) (Y):1 V(p-p)/75 Q
(PB/PR):0t7 V(p-p)/75 £2
Speaker Terminals 4 Q - 16 S2 (front speakers/subwoofers)
6 Q - 16 Q (surround/center speakers)
Tuner section FM tuning range 87.50 MHZ - 108.00 MHz

AM (MW) tuning range

531 kHz - 1 602 kHz (at 9 kHz)
530 kHz - 1 600 kHz (at 10 kHz)

Disc player section Playable disc

DVD Video/DVD Audio/CDNCD/SVCD

CD-R/CD-RW (recorded in Audio CDNideo CD/Super
Video CD formats and MP3NVMAIJPEG files)

DVD-R (recorded in DVD Video format)

DVD-RW (recorded in DVD Video format or DVD-VR
format)

DVD-RAM (recorded in DVD-VR format)

Dynamic range

80 dB

Horizontal resolution

500 lines

Wow and flutter

lmmeasurable

Cassette deck section Frequency response Normal (type I)

50 Hz- 14 000 Hz

Wow and flutter

0.15% (WRMS)

General Power requirement

AC 110V/AC127V/A0220V/AC230V-AC240
V , (adjustable with the voltage selector), 50 Hz / 60 Hz

Power consumption

335 W (at operation)
29 W (on standby)

Dimensions (W/H/D) (approx)

185 mm X460 mm X 361 mm

Mass (approx)

11.4kg

*1: Measured at 1 kHz, with tape recording signal 300 mV

1-2 (Notmeses)
