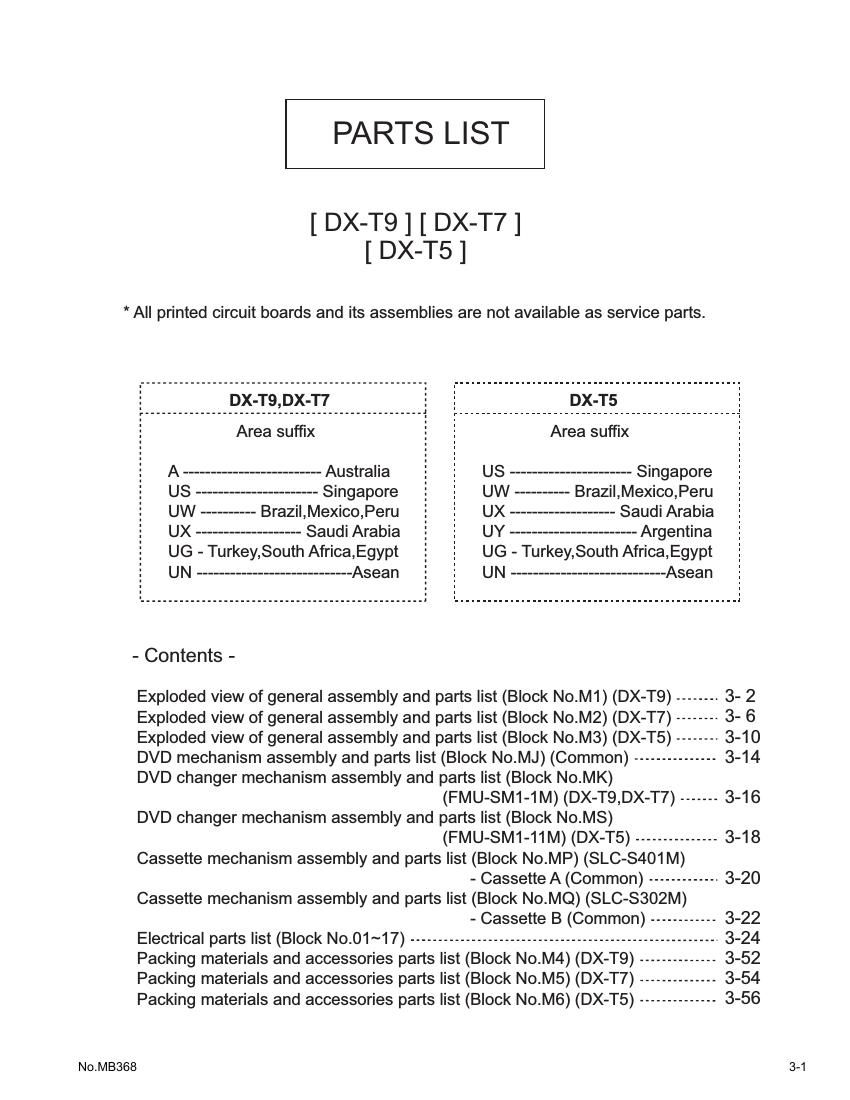

PARTS LIST

[ DX-T9] [ DX-T7]

[ DX-T5 ]

* All printed circuit boards and its assemblies are not available as service parts.

. DX-T9,DX-T7 J. DX-T5
Area suffix Area suffix 5
A ------------------------- Australia US ---------------------- Singapore
US --- -------------- Singapore UW -- Brazil,Mexico,Peru
UW ---------- Brazil,Mexico,Peru UX ------------------- Saudi Arabia
UX ------------------- Saudi Arabia UY ----------------------- Argentina
UG - Turkey,South Africa,Egypt UG - Turkey,South Africa,Egypt
UN ---------------------------- Asean UN ---------------------------- Asean
- Contents -
Exploded view of general assembly and parts list (Block No.M1) (DX-T9) -------- 3- 2
Exploded view of general assembly and parts list (Block No.M2) (DX-T7) ------ 3- 6
Exploded view of general assembly and parts list (Block No.M3) (DX-T5) -------- 3-10
DVD mechanism assembly and parts list (Block No.MJ) (Common) --------------- 3-14
DVD changer mechanism assembly and parts list (Block No.MK)
(FMU-SM1-1M) (DX-T9,DX-T7) ------- 3-16
DVD changer mechanism assembly and parts list (Block No.MS)
(FMU-SM1-11 M) (DX-T5) --------------- 3-18
Cassette mechanism assembly and parts list (Block No.MP) (SLC-S401 M)
- Cassette A (Common) ------------- 3-20
Cassette mechanism assembly and parts list (Block No.MQ) (SLC-S302M)
- Cassette B (Common) ------------ 3-22
Electrical parts list (Block No.01~17) -------------------------------------------------------- 3-24
Packing materials and accessories parts list (Block No.M4) (DX-T9) -------------- 3-52
Packing materials and accessories parts list (Block No.M5) (DX-T7) -------------- 3-54
Packing materials and accessories parts list (Block No.M6) (DX-T5) -------------- 3-56

NotMB368

3-1
