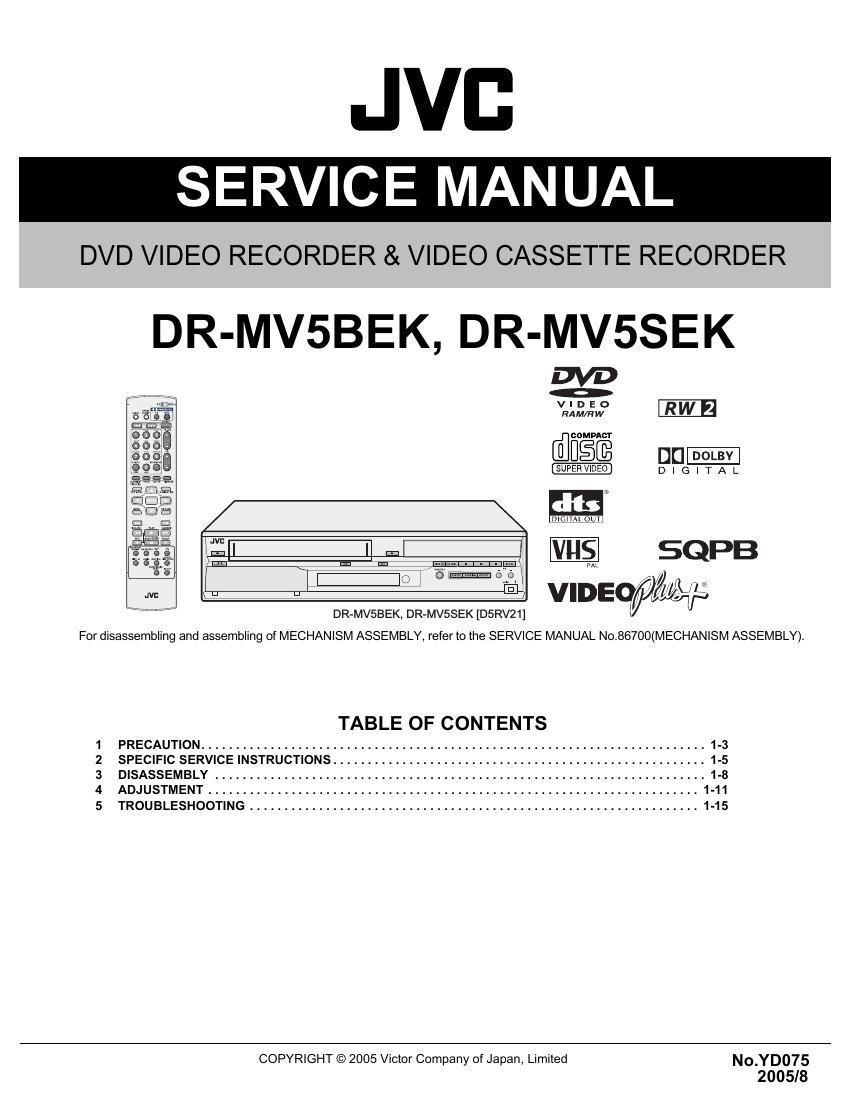

Jvc DRMV 5 SEK Service Manual

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 220 V » 240V, 50/60 HZ

Power consumption

Power on 33w
Power off 7_ow
Temperature
Operating 5°C to 35"(3
Storage -20C to 60"(2
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 96 mm x 344 mm
Weight 5.8 kg
Input/Output
Video input 1.0 Vp-p, 75 £2 (pin jack)
Audio input .3 dB, 50 k9. (pin Jack), Corresponding to mono (left)

Audio output

A8 dB, 1 kn (pin jack)

21-pin SCART connectors

IN/OUT x i, IN/DECODER x 1

Input/Output (DVD Deck Only)

S-video input

Y: 1.0 VpAp, 75 :2, c; 0.300 VpAp, 75 0

i.Link

4Apin for DV input

Component Video output

Y: 1.0 VpAp, 75 o, CB/CR, PB/PR. 0.7 Vp-p. 75 :2
Corresponding to copy protection

Digital audio output

Coaxial. Corresponding to Dolby Digital and DTS Digital Surround
Bil stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD deck)

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP) Approx 1 hour, (SP). Approx. 2 hours, (LP). Approx. 4 hours
(EP) Approx. 6 hours, (FR): Approx. 1 hour » 8 hours

Audio recording system

Dolby Digital (2 ch). Linear PCM (XP mode only)

Video recording compression system

MPEGZ (CBR/VBR)

VIDEO/AUDIO (VHS Deck)

Signal system

PAL colour signal and CCIR monochrome signal, 625 lines/50 fields

Recording system

DAA (Double Azimuth) head helical scan system

Format VHS PAL standard
Maximum recording time
(SP) 180 min. with E480 video cassette
(LP) 360 min. with E480 video cassette
Signal-Io-noise ratio 45 dB
Horizontal resolution 230 lines

Frequency range

70 HZ to 10,000 HZ (Normal audio) 20 HZ to 20000 HZ (Hi-Fi audio)

TUNER/TIMER

TV channel storage capacity

99 positions (+AUX position)

Tuning system

Frequency synthesized tuner

Channel coverage

VHF 47 MHZ A 143 MHZ/143 MHZ A 470 MHZ, UHF 470 MHZ A 862 MHZ

Memory backup time

Approx. 10 minutes

ACCESSORIES

ProVided accessories I

RF cable. 21-pin SCART cable, Infrared remote control unit. "AA" battery x 2

- Specifications shown are for SP mode unless othenivise specified.
- E.& O.E. Design and specifications subject to change without notice.

' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

' "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under
license from Gemstar Development Corporation.
- ii(i.Link) refers to the IEEE1394-1995 industry specification and extensions thereof. Theilogo is used for products compliant with the i.Link stan-

dard.

1-2 (N0.YD075)
