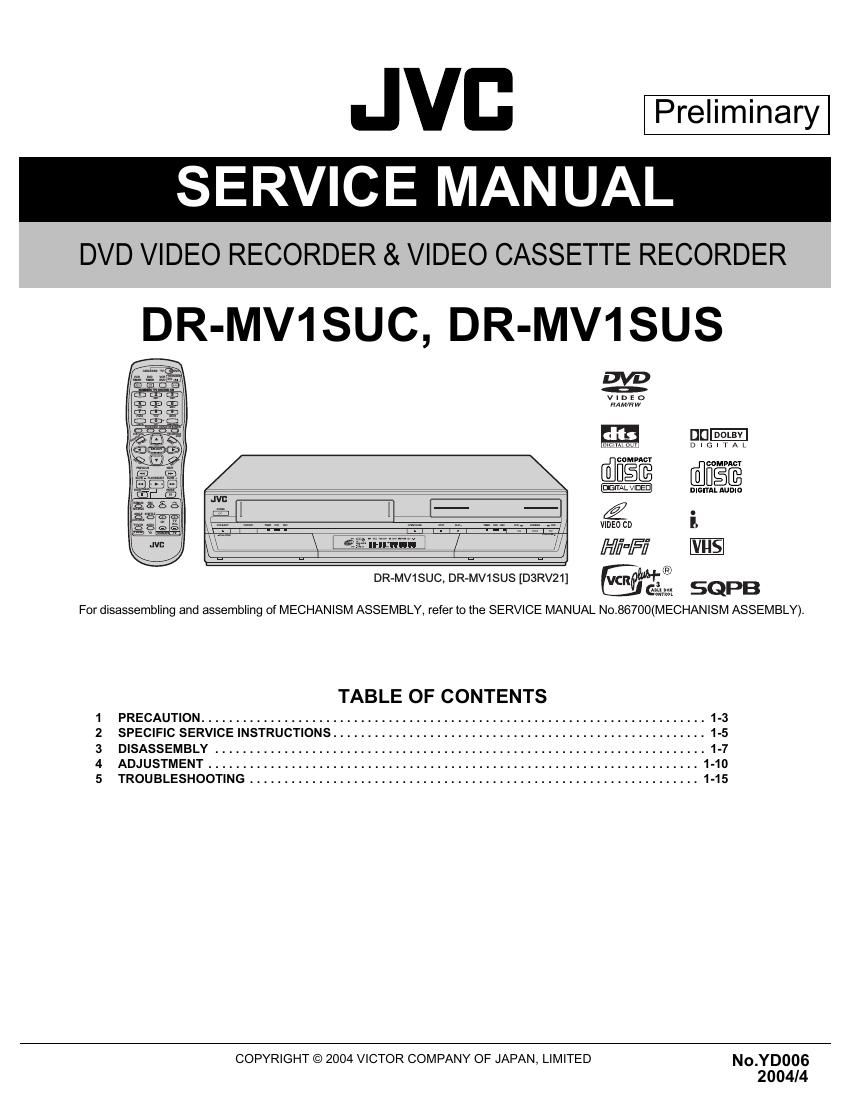

Jvc DRMV 1 Service Manual

Page 2

SPECIFICATION

DR-MV1SUC I DR-MV1SUS

GENERAL

Power requirementl

AC 120 V, 60 HZ

Power consumption

Power on 43 W
Power off 16.5 W
Temperature
Operating 5°C to 35°C (41°F to 95°F)
Storage -20°C to 60°C (-4°F to 140°F)

Operating position

Horizontal only

Dimensions (W X H X D)

435 mm X 96 mm X 347 mm (17-3/16" X 3-13/16" X 13-11/16")

Weight

6.1 kg (13.5 lbs)

VIDEO/AUDIO (DVD Deck)

Recording format

DVD-RAM: DVD Video Recording format
DVD-R: DVD-Video format
DVD-RW: DVD-Video format, DVD Video Recording format

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 6 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEGZ (CBR/VBR)

Input/Output

S-video input Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 £2
S-Video output Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 9
Video input 0.5 - 2.0 Vp-p, 75 52 (pin jack)
Video output 1.0 Vp-p, 75 52 (pin jack)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)
Audio output -8 dB, 1 kn (pin )ack)
i.Link 4-pin for DV input

Component video output

v: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 (2
Corresponding to copy protection

Digital audio output

Optical: -18 dBm, 660 nm, Coaxial: 0.7 Vp-p, 75 9,
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (VCR Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

DA4 (Double Azimuth) head helical scan system

Format VHS NTSC standard
Maximum recording time
(SP) 210 min. with ST-210 video cassette
(EP) 630 min. with ST-210 video cassette
Signal-to-noise ratio 45 dB
Horizontal resolution 230 lines

Frequency range

70 Hz to 10,000 Hz (Normal audio), 20 Hz to 20,000 Hz (Hi-Fi audio)

input/Output RCA connectors: IN X 2, OUT X 1
TUNERITIMER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69, CATV: 113 Channels
RF output Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 £2, unbalanced
Memory backup time Approx. 5 seconds
ACCESSORIES

Provided accessories

RF cable X 1, Infrared remote control unit, ""AA battery RF cable X 3, Antenna splitter, Infrared remote control

><2

unit, 'AA" battery X 2

- Specifications shown are for SP mode unless othen/vise specified.

- E.& O.E. Design and specifications subject to change without notice.

' VCR Plus+, 03 and PlusCode are registered trademarks of Gemstar Development Corporation.

- The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

' DSSTM is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. DISH NetworkTM is a trademark of Echostar Communications

Corporation.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
- i(i.Link) refers to the lEEE1394-1995 industry specification and extensions thereof. The i logo is used for products compliant with the i.Link stan-

dard.
1-2 (N0.YD006)
