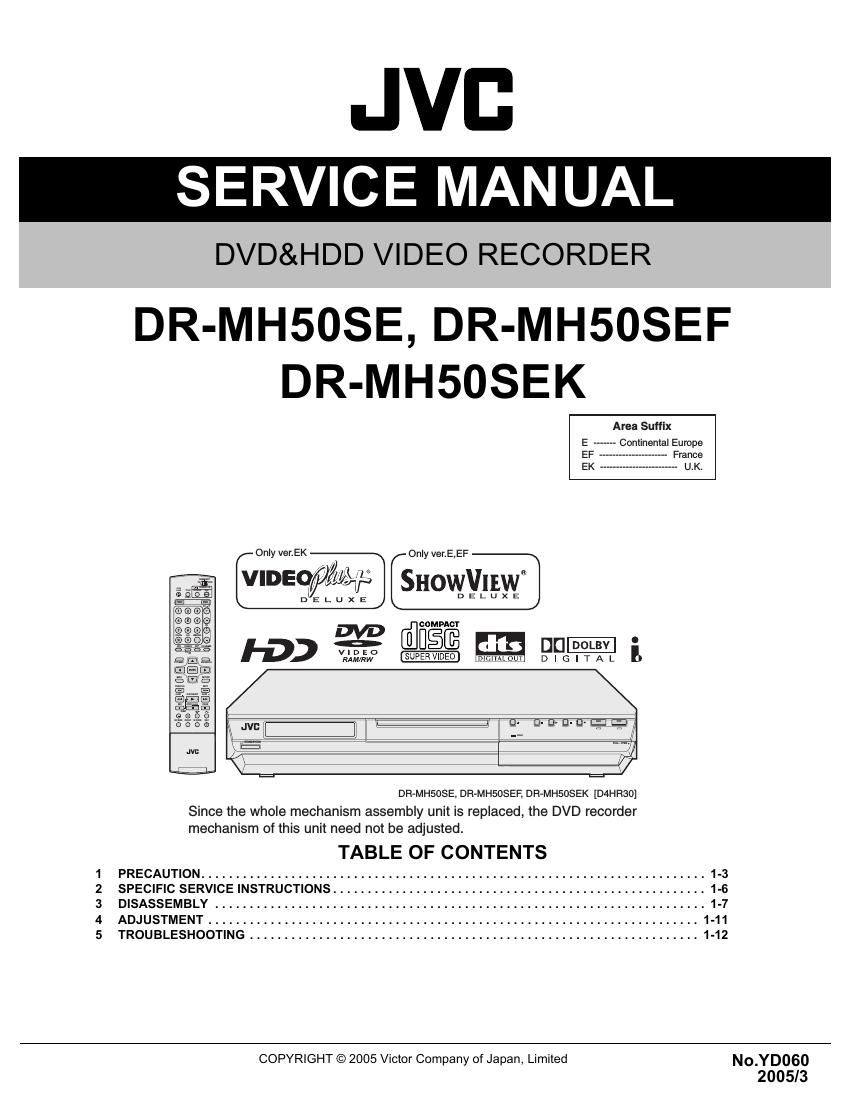

Jvc DRMH 50 SE Service Manual

Page 2

SPECIFICATION

DR-MHSOSE I DR-MHSOSEF DR-MHSOSEK

GENERAL

Power requirement AC 220 V - 240 V~, 50 Hfl60 HZ

Power consumption Power on , 37 W
Power off: 15.6 W

Temperature Operating : 5°C to 35C
Storage : -20C to 60C
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 70 mm x 345.5 mm
Weight 6.1 kg

Inputhutput

Video input Y:0.5-2.0 Vp-p, 75 ohms(pin jack)
Audio input -8 dB, 50 kilohms (pin jack)
Corresponding to mono (left)

Audio output -8 dB, 1 kilohms (pin jack)
21-pin SCART connectors IN/OUT x1, IN/DECODER x1

S-video input Y: 0.8 - 1.2 Vp-p, 75 ohms
C: 0.2 - 0.4 Vp-p, 75 ohms
S-video output Y: 1.0 Vp-p, 75 ohms
C: 0.3 Vp-p, 75 ohms

i.Link 4-pin for DV input
Component video output Y: 1.0 Vp-p, 75 ohms
CB/CR, PB/PR: 0.7 Vp-p, 75 ohms
Corresponding to copy protection
SAT Control 3.5 mm

Digital audio output Optical: -18 dBm, 660 nm
Coaxial: 0.7 Vp-p. 75 ohms
Corresponding to Dolby Digital and DTS Digital Surround Bit stream
Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD Deck)
Recording time Maximum 8 hours (with 4.7 GB disc)
(XP) : Approx. 1 hour, (SP) : Approx. 2 hours, (LP) : Approx. 4 hours, (EP) : Approx. 6 hours, (FR) : Approx. 1 hour - 8 hours

Audio recording system Dolby Digital (2 ch)

Linear PCM (XP mode only)
Video recording compression system MPEG2 (CBRNBR)

VIDEO/AUDIO (HDD Deck)
Video recording compression system MPEGZ (VBR)

Audio recording system Dolby Digital (2 ch)

Linear PCM (XP mode only)

Recording time Maximum 473 hours(with 250 GB HDD)

(XP): Approx.53 hours, (SP): Approx.109 h0urs,(LP): Approx.218 hours, (EP): Approx.328 hours, (FR): Approx. 473 hours

TUNERITIMER

Signal system PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
TV channel storage capacity 99 positions (+AUX position)
Tuning system Frequency synthesized tuner

Channel coverage Frequence VHF - LOW: 49 MHZ -65 MHZ/ -
(SECAM L) HIGH: 104 MHZ -300 MHZ
Hyper 300MHZ-470MHZ
UHF 470 MHZ -862 MHZ
Canaux VHF - LOW: 2-4 -
HIGH: 5-10 CATV
Hyper CATV
UHF 21-69
Channel coverage Frequence VHF 47 MHZ -89 MHU LOW: 47 MHZ -89 MHZ/ 44.5MHZ-143MHZ/
(PAL BIG) 104 MHZ -300 MHfl HIGH: 104 MHZ -300 MHZ 143MHZ-47OMHZ
302 MHZ -470 MHZ
Hyper - 302 MHZ -470 MHZ -
UHF 470 MHZ -862 MHZ
Canaux VHF - LOW: E2-E4, X, Y, Z -
HIGH: E5-E12,S1-820,M1-M10,U1-U10
Hyper 821-841
UHF E21-E68

Memory backup time Approx. 60 seconds

ACCESSORIES

Provided accessories RF cable,2I-pin SCART cable,Sateilite Controller,lnfrared remote control unit,"AA" battery x 2

E.& O.E. Design and specifications sub)ect to change without notice.

ATTENTION:
This unit contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the unit off and unplug the mains power
cord. Then plug it in again and turn the unit on. Take out the disc. After checking the disc, operate the unit as usual.

- Manufactured under licence from Dolby Laboratories. Dolby" and double-D symbol are trademarks of Dolby Laboratories.

- DTS and DTS DIGITAL OUT are trademarks of Digital Theater Systems, Inc.

- VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar
Development Corporation.

' This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other intellectual property rights owned by Mac-
rovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

1-2 (No.YD060)
