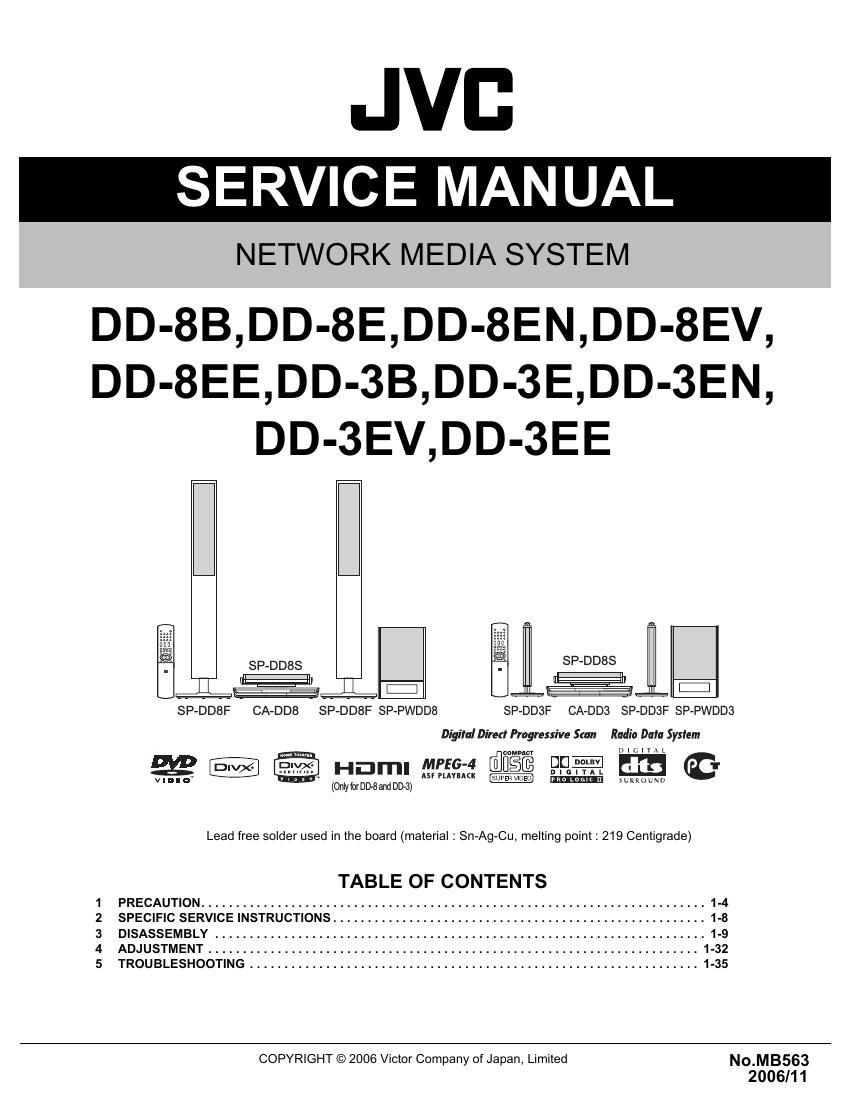

Jvc DD 8 Service Manual

Page 2

SPECIFICATION

Main unit (CA-DDSICA-DD3)

Tuner FM frequency : 87.50 MHz -108.00 MHZ
AM frequency : 522 kHz - 1 629 kHz
Terminal (front of the main unit) Audio output headphone terminal X 1

Impedance : 16 Q to 1 k9

USB digital input terminal ><1

Analog input terminal x 1
Stereo mini jack

Analog output terminal X 1
Stereo mini jack

Terminal (rear of the main unit) Optical digital input terminal x 1
-23 dBm to -15 dBm

Optical digital output terminal X 1
-23 dBm to -15 dBm

System terminal X 1

Component video output terminals (3) X 1

Y : 1.0 Vp-p, sync negative, 75 Q terminated
PB : 0.7 Vp-p, 75 £2 terminated

PR : 0.7 Vp-p, 75 Q terminated

Audio input terminals (2) x 1

500 mV/47 kQ

SCART terminal X 1

AM antenna terminal X 1

FM antenna terminal X 1

Ethernet terminal

HDMI monitor output terminal

USB Compatible with USB 2.0 Full-Speed

Compatible device : Mass storage class device

Compatible file system : FAT16, FAT32

Bus power supply : Max. 500 mA

General Power source : AC 230 V , 50 Hz

Power consumption (in operation) : 25 W

Power consumption (on standby) : 0.5 W

Dimensions (W X H x D) : 445 mm x 55 mm X 286.4 mm (including projecting parts)

Weight : 3.5 kg (CA-DD8), 3.0 kg (CA-DDS)

Subwoofer for DD-8 (SP-PWDDS)

Type Bass reflex type, Magnetically shielded type

Amplifier Subwoofer: 120 W at 4 Q (110 HZ, THD 10%)

Left/right speaker : 25 W X 2 at 3 Q (1 kHz, THD 10%)

Center surround speaker: 25 W X 2 at 3 £2 (1 kHz, THD 10%)

Speaker 16 cm cone

Power handling capacity : 120 W

Impedance : 4 £2

Frequency range : 30 Hz - 230 HZ

Sound pressure level : 72 dBNV-m

General Power source : AC 230 V , 50 Hz

Power consumption : 120 W

Dimensions (W X H X D) : 242 mm X 364 mm x 363 mm

Weight: 12.6 kg

1-2 (NoMBses)
