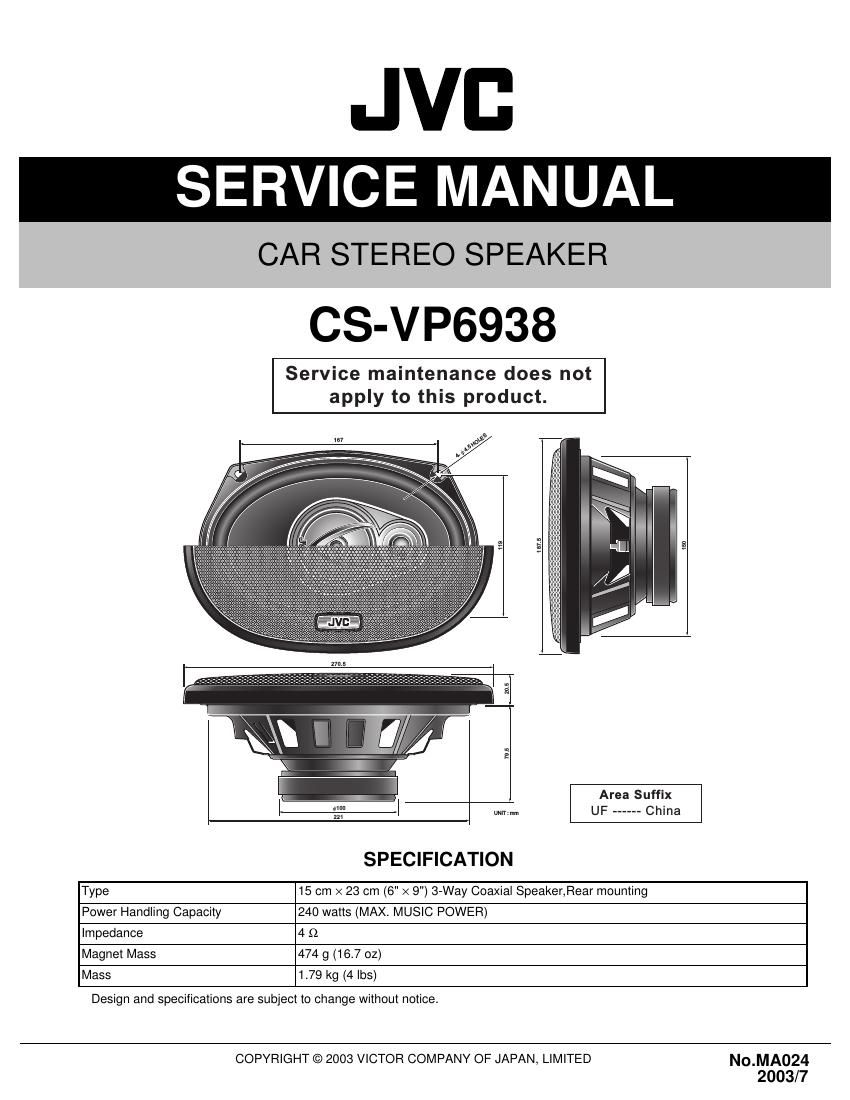

Jvc CS VP6938 Service Manual
This is the 4 pages manual for Jvc CS VP6938 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc CS VP6938 Service Manual (Ocr-read)
Page 1
1-2 (No.MA024) SECTION 1 PRECAUTION 1.1 Safety Precautions SECTION 2 SPECIFIC SERVICE INSTRUCTIONS 2.1 ACCESSORIES ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Speaker Cord (5 m) -------------------- x 2 Plane Washer (M4) -------------------- x 8 Spring Washer (M4) ------------------- x 8 Speed Nut -------------------------------- x 8 Metal Net --------------------------------- x 2 Grille --------------------------------------- x 2 Nut (M4) ---------------------------------- x 8 Net Fixer (10 cm) -----------------------x 2 Screw ( 4 x 25 mm) ------------------ x 8 Screw (M4 x 70 mm) ------------------ x 8
Page 2
(No.MA024)1-3 SECTION 3 DISASSEMBLY This service manual does not describe DISASSEMBLY. SECTION 4 ADJUSTMENT This service manual does not describe ADJUSTMENT. SECTION 5 TROUBLE SHOOTING This service manual does not describe TROUBLE SHOOTING.
