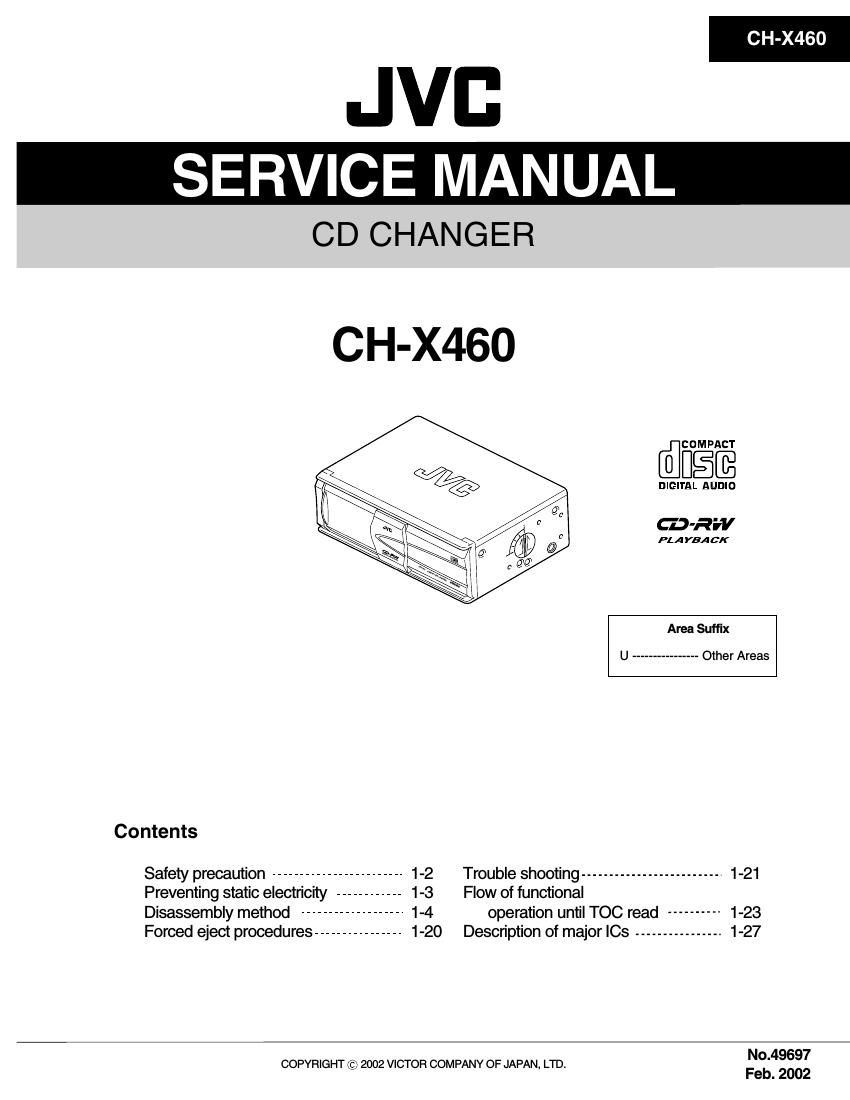

Jvc CHX 460 Service Manual
This is the 36 pages manual for Jvc CHX 460 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc CHX 460 Service Manual (Ocr-read)
Page 1
CH-X460 1-2 ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution ! Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
Page 2
CH-X460 1-3 Preventing static electricity 1.Grounding to prevent damage by static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs. 2.About the earth processing for the destruction prevention by static electricity Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players. Be careful to use proper grounding in the area where repairs are being performed. 2-1 Ground the workbench Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the traverse unit (optical pickup) on it. 2-2 Ground yourself Use an anti-static wrist strap to release any static electricity built up in your body. 3. Handling the optical pickup 1. In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition. (Refer to the text.) 2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily destroy the laser diode. 4.Handling the traverse unit (optical pickup) 1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit. 2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a time when attaching it to the connector. 3. Handle the flexible cable carefully as it may break when subjected to strong force. 4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it Attention when traverse unit is decomposed 1.Solder is put up before the card wire is removed from connector on the CD substrate as shown in Figure. (When the wire is removed without putting up solder, the CD pick-up assembly might destroy.) 2.Please remove solder after connecting the card wire with when you install picking up in the substrate.*Please refer to "Disassembly method" in the text for pick-up and how to detach the substrate. (caption) Anti-static wrist strap Conductive material (conductive sheet) or iron plate Soldering Pickup unitTraverse mechanism PCB Ass'y
Page 21
CH-X460 1-22 Tray extension error Tray-in switch time out (Tray-in switch Low, Tray-out switch High)Tray stops part way E1 03 00 11 Tray stops part way E1 03 00 12 Tray-out switch time out (Tray-in switch High, Tray-out switch High) Tray-in switch faulty or other defect E1 03 00 13 Tray-in switch time out (Tray-in switch Low, Tray-out switch Low) Tray motor inoperative E1 03 00 16 Tray-in switch time out (Tray-in switch Low, Tray-out switch Low) Tray retraction stops part way E1 03 00 17 Tray-out switch time out (Tray-in switch High, Tray-out switch High) Tray-in switch faulty or other defect E1 03 00 18 Tray-in switch time out (Tray-in switch Low, Tray-out switch Low) Magazine removed when tray partly r etracted E1 03 00 19 MAG-in switch Low to High E1 03 00 47 Not stable at absolute position Absolute position time out E1 03 00 46 Both Tray-in and Tray-out Low Mechanism switch time out E1 02 00 43 Magazine not ejected MAG in switch time out E1 02 00 42 Eject position not attained Eject position time out E1 02 00 41 Position motor inoperative Eject position time out E1 02 00 38 Other fault Wait position time out E1 02 00 37 Position not stable in fine adjust mode Wait position time out E1 02 00 36 Position motor inoperative Wait position time out E1 02 00 33 Other fault Play position time out E1 02 00 32 Position not stable in fine adjust mode Play position time out E1 02 00 31 Position motor inoperative Play position time out E1 02 00 28 Other fault Wait position time out E1 02 00 27 Position not stable in fine adjust mode Wait position time out E1 02 00 26 Position motor inoperative Wait position time out E1 02 00 23 Other fault Wait position time out E1 02 00 22 Position not stable in fine adjust mode Wait position time out E1 02 00 21 Position motor inoperative Wait position time out E1 03 00 14 Magazine removed when tray partly extende MAG-in switch Low to High Tray retraction error Lifter raise error Lifter lower error Chuck error Unchuck error Eject error Initialize error Generating condition Description Error code CH-X460 Error code The following error codes can be displayed and stored in up to 3 memories when the KD-MX3000 is used with the controller. Refer to the KD-MX3000 service manual regarding error code indication. The error code indication when using the earlier controller is the same as the CH-X99,KD-MK88 and other 12CD changer models. CH-1 error code table Note: The 1st error code is indicated by E1, while the 2nd and 3rd error codes are respectively indicated by E2 and E3.
