Jvc CAMXG 7 BK Service Manual

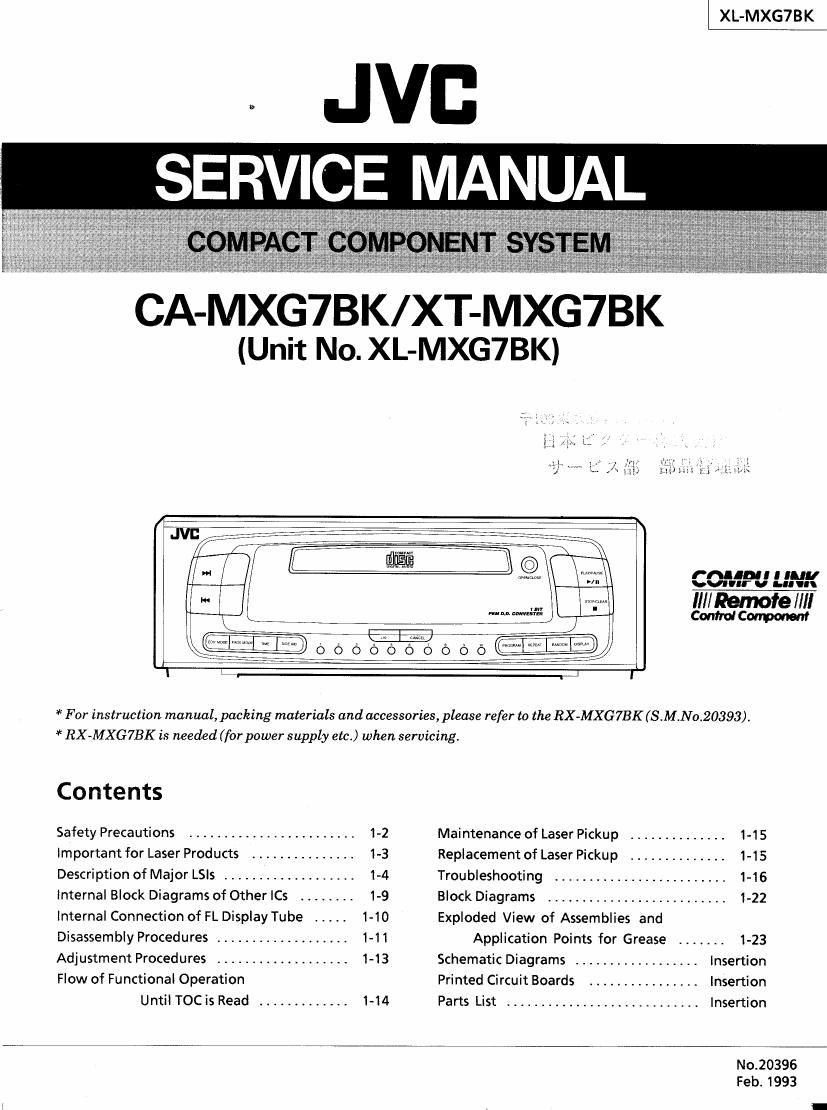

Page 1

XL-MXG7BK

. JVC
SEVICE MANUAL

WA; "IL

CA-MXG7BK/XT-MXG7BK
(Unit No. XL-MXG7BK)

rmnu I luv
bVInr v I." In

III/ Remote /III
Control Couponom

* For instruction manual, packing materials and accessories, please refer to the RX -MXG7BK (S.M.No.203.93).
* RX -MXG7BK is needed ( for power supply etc.) when servicing.

Contents

Safety Precautions ........................ 1-2 Maintenance of Laser Pickup .............. 1-15

Important for Laser Products ............... 1-3 Replacement of Laser Pickup .............. 1-15

Description of Major LSIs ................... 1-4 Troubleshooting ......................... 1-1 6

internal Block Diagrams of Other ICs ........ 1-9 Block Diagrams .......................... 1-22

internal Connection of FL Display Tube ..... 1-1 0 Exploded View of Assemblies and

Disassembly Procedures ................... 1-11 Application Points for Grease ....... 1-23

Adjustment Procedures ................... 1-13 Schematic Diagrams .................. Insertion

Flow of Functional Operation Printed Circuit Boards ................ Insertion

Until TOC is Read ............. 1-14 Parts List ............................ Insertion

No.20396
Feb. 1993

Page 2

l XL-MXG7BK

-Safety Precautions

l. The design of this product contains special hardware and many circuits and components
specially for safety purposes. For continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer. Replacement parts must
be identical to those used in the original circuits. Services should be performed by
qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design
alterations of the product should not be made. Any design alterations or additions will
void the manufacturers warranty and will further relieve the manufacture of responsibility
for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related
characteristics. These characteristics are often not evident from visual inspection nor can
the protection afforded by them necessarily be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manual. Electrical components
having such features are identified by shading on the schematics and by (A) on the Parts
List in the Service Manual, The use of a substitute repalcement which does not have the
same safety characteristics as the recommended replacement parts shown in the Parts List of
Service Manual may create shock, fire, or other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and
the like to be separated from live parts, high temperature parts, moving parts and/or sharp
edges for the prevention of electric shock and fire hazard. When service is required, the
original lead routing and dress should be observed, and it should be confirmed that they
have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal
parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack,
contorl shafts, etc.) to be sure the product is safe to operate without danger of electrical
shock.
Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester",
measure the leakage current from each exposed metal parts of the cabinet, particularly
any exposed metal part having a return path to the chassis, to a known good earth
ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000
ohms per volt or more sensitivity in the following manner. Connect a 1.5000. 10 W
resistor paralleled by a 0.15 FF AC-type capacitor between an exposed metal part and a
known good earth ground.

AC VOLTM ETE R

Measure the AC voltage across the resistor (Ham 1000

with the AC voltmeter. a ohms/vgolts, _ _ _

Move the resistor connection to each exposed 0 °_ °' 0'9 sens't'v'm

metal part, particularly any exposed metal part

having a return path to the chassis, and 0.15yFAC TYPE

meausre the AC voltage across the resistor. -| _

Now, reverse the plug in the AC outlet and Place 5
. probe on

repeat each measurement. Any voltage each exposed

measured must not exceed 0.75VAC (r.m.s.). 1500910W metal part.

This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

-Warning

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are
maintained.

3. Repairs must be made in accordance with the relevant safety standards.
. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.

J>

1-2 (No. 20396)

Page 32

I Parts List (CD Mechanism Ass'y)

XL-MXG7BK

Item Part Number Part Name Q'ty Description Area
1 EPB»002A a MECHANISM BASE ASSY 1
2 OPTIMA-GS PICK UP ASS'Y 1
3 E406777-001 SHAFT 1
4 SDSFZOOSZ SCREW 1
5 807746-001 CD RACK 1
6 EPB-003A MECHANISM BASE ASSY I
7 SDSP2003N SCREW 4
8 E406750-001 PINION GEAR 1
9 EPB-001C TURNTABLE 1

10 E406784-001 DC MOTOR 1
1 1 E406783-001 DC MOTOR 1
12 EMW10190-001(S) CIRCUIT BOARD 1
13 E531 100-005 LEAF SWITCH 1
14 E75832-001 SPECIAL SCREW 1
15 EMV5109-0068 PLUG ASSY 1 SPIN
16 E102357-221 LOADING BASE 1
17 E65923-003 SCREW 3
18 SPSK264OZ SCREW 2
19 E75984-001 MOTOR PULLEY 1
20 E75950-002 BELT 1
21 E72024-001 SPEED NUT 1
22 95985-001 GEAR 1
23 959864302 GEAR 1
24 SB$F30082 SCREW 1
25 E307252-221 CAM - PLATE 1
26 575987-001 REEL GEAR 1
27 573989-001 SPRING 1
28 E307162-221 LEVER 1
29 E551 200-002 SLIDE SWITCH 1
30 RF-500T3-12560 MOTOR 1
31 EMW10255-002(S) CIRCUIT BOARD 1
32 EMV5109-0058 PLUG ASSY 1 SPIN
33 E406871-001 SPRING 2
34 306294-002 INSULATOR 4
35 E307179-221 ELEVATOR BASE ASSY 1

(No.20396)2*5
