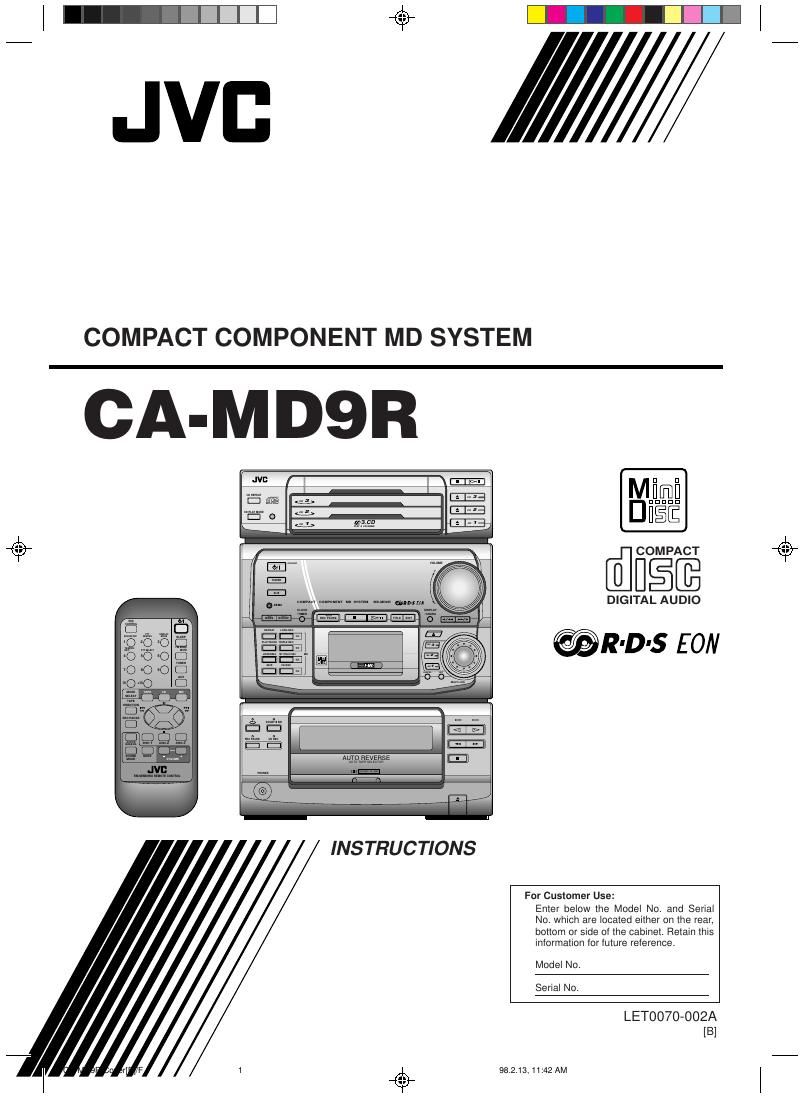

Jvc CAMD 9 R Owners Manual
This is the 76 pages manual for Jvc CAMD 9 R Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc CAMD 9 R Owners Manual (Ocr-read)
Page 1
Warnings, Cautions and Others G-1 IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted. If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: IMPORTANT: DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code: Blue : Neutral Brown : Live As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN. Caution ÐÐ switch! Disconnect the mains plug to shut the power off completely. The switch in any position does not disconnect the mains line. The power can be remote controlled. CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. CA-MD9R.Cover[B]/F98.2.13, 11:43 AM 2
Page 2
IMPORTANT FOR LASER PRODUCTS REPRODUCTION OF LABELS 1CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE CLASS 1 LASER PRODUCT 2WARNING LABEL, PLACED INSIDE THE UNIT DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) ADVARSEL: Usynlig laser- stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsæt- telse for stråling (d) VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f) 1. CLASS 1 LASER PRODUCT 2.DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3.CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel. G-2 1 cm 1 cm 15 cm 15 cm15 cm 15 cm 15 cm 10 cm CA-MD9R CA-MD9R Front view Side view Caution: Proper VentilationTo avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below. 3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more. CA-MD9R.Cover[B]/F98.2.13, 11:43 AM 3
Page 17
15 RDS CONTROL 3 DISPLAY MODE Ç Ç Ç 3 Changing the RDS Information ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ You can see RDS information on the display while listening to an FM station. To view RDS information on the display, press the DISPLAY MODE button after pressing the RDS CONTROL button on the Remote Control. Each time you press the button the display changes to show the following information: PS (Program Service):Station names will be displayed. Òno PSÓ appears if no signal is sent. PTY (Program Type):Types of broadcast programs will be displayed. Òno PTYÓ appears if no signal is sent. RT (Radio Text):Text message sent by stations will be displayed. Òno RTÓ appears if no signal is sent. Station Frequency:Station frequencies. (non-RDS information) oWhile RDS information is being received from a station, Òwait PSÓ, Òwait PTYÓ, or Òwait RTÓ may appear on the display. Searching for Programs by PTY Codes (PTY Search) ÑÑÑÑÑÑÑÑÑÑÑ One of the advantages of the RDS service is that you can locate a particular kind of program by specifying the PTY codes. oThe PTY Search function is applicable to preset stations only. oPTY Search can be used even while AM (MW/LW) broadcasts are being received. To search for a program using the PTY codes, follow this procedure, using the Remote Control: 1. Press the RDS CONTROL button. The number buttons on the Remote Control are set for the RDS operations. 2. Press the PTY SEARCH button. ÒPTY SELECTÓ flashes on the display. 3. Press the PTY SELECT button to select a PTY code while ÒPTY SELECTÓ is flashing on the display. Each time you press the button, the PTY codes change as follows (refer also to the list on page 14): NONE = NEWS = AFFAIRS = INFO = SPORT = EDUCATE = DRAMA = CULTURE = SCIENCE = VARIED = POP M = ROCK M = M.O.R. M = LIGHT M = CLASSICS = OTHER M = WEATHER = FINANCE = CHILDREN = SOCIAL A = RELIGION = PHONE IN = TRAVEL = LEISURE = JAZZ = COUNTRY = NATIONAL = OLDIES = FOLK M = DOCUMENT = TEST = ALARM! = (back to the beginning) 4. Press the PTY SEARCH button again. While searching, ÒSEARCHÓ and the selected PTY code alternate on the display. The unit searches 30 preset channels, stops when it finds the one you have selected, and tunes in that station. To continue searching after the first stop: Press the PTY SEARCH button again while the indications on the display are flashing. If no program is found, ÒNOT FOUNDÓ appears on the display and the unit returns to the last received station. To stop searching any time during the process: Press the PTY SEARCH button while searching. RDS CONTROL 2 PTY SEARCH 5 PTY SELECT 2 PTY SEARCH CD PROGRAM R·D·S EONTA NEWS INFOSLEEP DAILY REC 1 2 3 1 CD MD ALL RANDOM REPEAT 12345678910111213141516 3 2 1 21 MD 3 STEREO TUNED TA NEWS INFO MD CD EON EN.01-24.CA-MD9R[B]/F98.2.13, 11:45 AM 15
Page 64
62 DAILY on/off DAILY Timer On Time REC1 on/off REC1 Timer On Time REC2 on/off REC2 Timer On Time REC3 on/off REC3 Timer On Time Clock Setting Normal Display (current source) MULTI JOG SET \ MULTI JOG SET \ CD REC 1 STEREO TUNED 12345678910 3 2 1 21 MD 3 CD REC 1 STEREO TUNED 12345678910 3 2 1 21 MD 3 CLOCK /TIMER Setting the Recording Timer With the Recording Timer you can record a radio broadcast automatically whether or not you are home. oYou can set the Recording Timer whether the unit is on or off. oYou can set three different Recording Timer settings (REC 1 to 3). oIf the clock has not been set, you cannot select the Recording Timer. Procedure for Setting the Recording Timer 1. Press the CLOCK/TIMER button repeatedly until Recording timer on-time setting mode appears on the display. The REC 1, 2 or 3 indicator also lights up on the display. oEach time you press the button, the Clock/Timer setting mode changes as follows: Turn on/off the Daily Timer Set the Daily Timer Turn on/off the Recording 1 Timer Set the Recording 1 Timer Turn on/off the Recording 2 Timer Set the Recording 2 Timer Turn on/off the Recording 3 Timer Set the Recording 3 Timer Set the clock Display before you press the button 2. Set the time you want the unit to be turned on. 1. Rotate the MULTI JOG dial to select the hour, then press the SET button. 2. Rotate the MULTI JOG dial to select the minute, then press the SET button. 3. Set the time you want the unit to be turned off. 1. Rotate the MULTI JOG dial to select the hour, then press the SET button. 2. Rotate the MULTI JOG dial to select the minute, then press the SET button. CD REC 1 STEREO TUNED 12345678910 3 2 1 21 MD 3 EN.51-72.CA-MD9R[B]/F98.2.13, 0:20 PM 62
