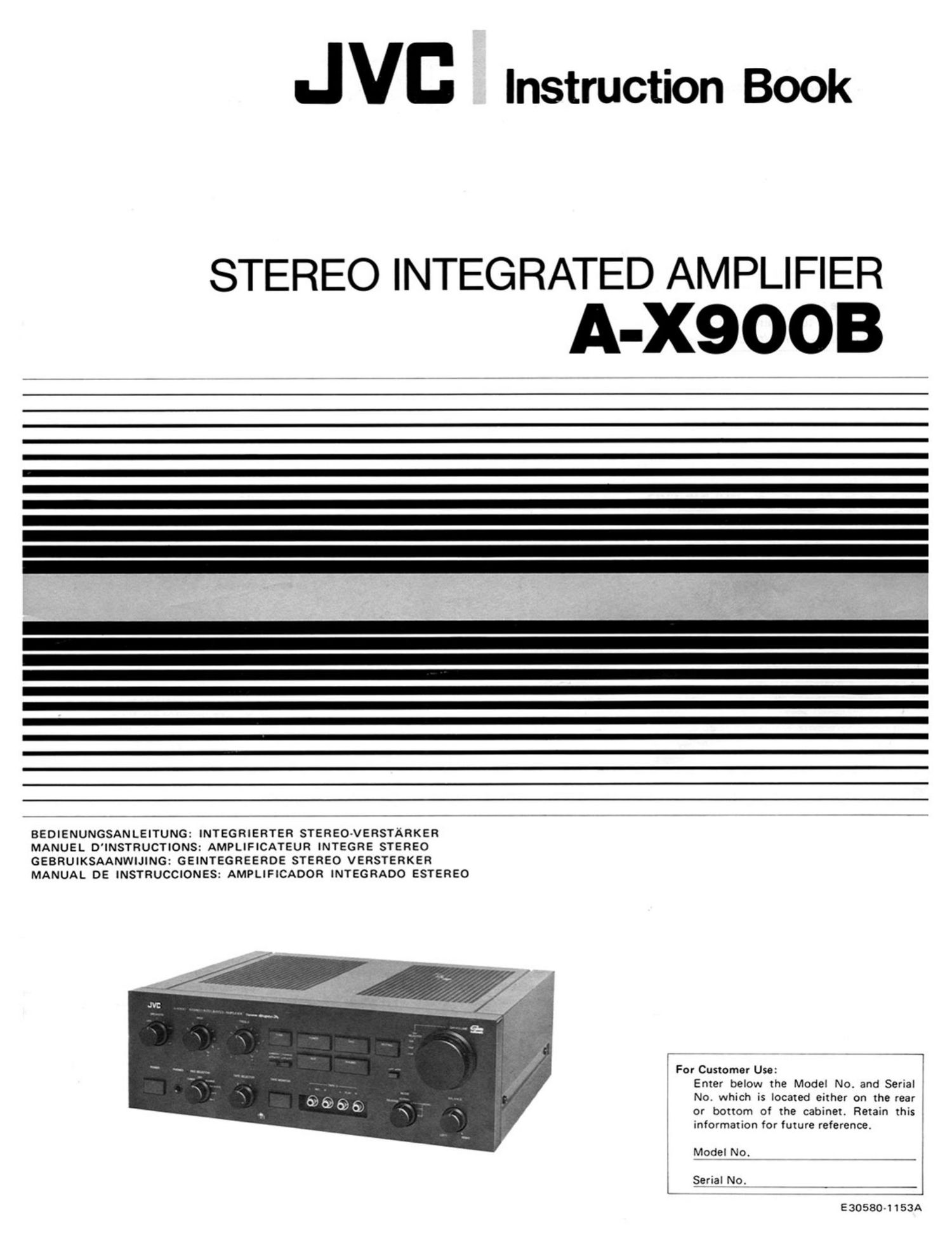

JVC Instruction Book

STEREO INTEGRATED AMPLIFIER

A-XQOOB

i

BEDIENUNGSANLEITUNG: INTEGRIERTER STEREO~VER$TARKER
MANUEL DINSTRUCTIONS: AMPLIFICATEUR INTEGRE STEREO
GEBRUIKSAANWIJING: GEINTEGREERDE STEREO VERSTERKER
MANUAL DE INSTRUCCIONES: AMPLIFICADOR INTEGRADO ESTEREO

T 7 _I
For Customer Use:
Enter below the Model No. and Serial
No. which is located either on the rear
or bottom of the cabinet. Retain this

information for future reference.

Model No.

§erial No.

E30580-1153A

Page 2

IMPORTANT (In the United Kingdom)
Mains Supply (AC 240 V», 50 H2 only)

IMPORTANT

Do not make any connection to the Larger Terminal coded E
or Green. The wires in the mains lead are coloured in
accordance with following code:

== Blue to N (Neutral) or Black
Brown to L (Live) or Red

If these colours do not correspond with the terminal identifi-
cations of your plug, connect as follows:

WARNING: TO REDUCE THE RISK. OF'
FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

Blue wire to terminal coded N (Neutral) or coloured Black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt - consult a competent electrician.

CAUTION

To reduce the risk of electrical shocks,fire,etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or
moisture.

ACHTUNG,

Zur Verhinderung von elektrischen Schlagen,

Brandgefahr usw.:

l. Keine Schrauben lesen oder Abdeckungen
entfernen und nicht das Gehéuse offnen.

2. Dieses Gerat wederRegen noch Feuchtig-
keit aussetzen.

Thank you for purchasing this JVC product.
Before you begin operating this unit, please
read the instructions carefully to be sure you
get the best possible performance.

If you have any question, consult your JVC
dealer.

CONTENTS

Important .................... 3
Connection diagram .............. 3
Front panel ...... , ............. 7
Operation
Listening to broadcasts/records ....... 13
Listening to tapes .............. 13
Recording tapes ............... 13 -
Tape dubbing .................. 15
Using stereo headphones .......... )7
Connecting an S'.E.A. graphicequalizer . . . 1g
Troubleshooting .............. .. . 19
Specifications .................. 21

Vielen Dank flir den Kauf dieses JVC-Produkts.
Bitte lesen Sie diese Bedienungsanleitung sorg-
faltig, bevor Sie dieses Gerat in Betrieb nehmen,
um die beste Leistung zu erhalten.

Falls Sie Fragen haben, wenden Sie sich-bitte an
lhren- JVC-Fachha ndler.

INHALT

Wichtig . ..................... 3
Anschlul'sdiagram ................ 3
Frontplatte .................... 7
Bedienung
W-iedergabe von- Radiosendu ngen/
Schallplatten ................. 13
Wiedergabe von Bandaufnahmen ..... 13
Bandaufnahme ................ 13
Uberspielen von Bandaufnahmen ...... 15
Stereo-Kopfhérer-Anschlul's ......... 17
Anschluls eines S.E.A. Graphic Equalizer . . 19
Stem ngssuche ................. 19

Technische Daten ............... 21
