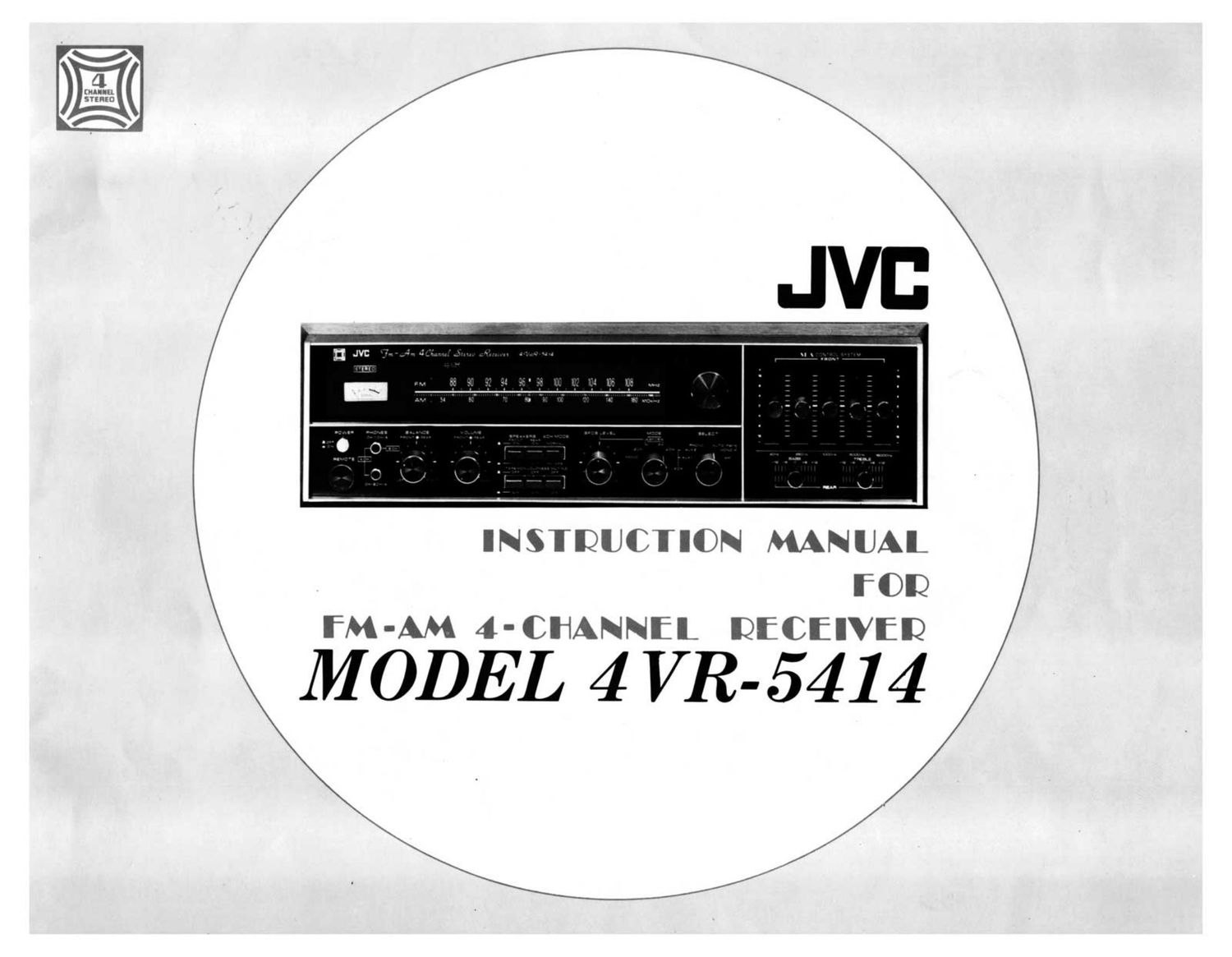

Jvc 4VR 5414 Owners Manual

Page 2

CONTENTS

FEATURES
DESCRIPTION OF FRONT PANEL
DESCRIPTION OF REAR PANEL
CONTROL OPERATION CHART
BTL CONNECTION
ANTENNAS
REMOTE CONTROL UNIT
PROTECTIVE CIRCUIT
FM DETECTOR OUTPUT
OPERATING PROCEDURE
RECEIVING FM BROADCASTS
RECEIVING AM BROADCASTS
PLAYING RECORDS
TAPE RECORDING
TAPE PLAYBACK
WHAT IS S.E.A.?
WHAT IS S.F.C.S.?
SPECIFICATIONS

Page 3

FEATUDES

120 Watts output 4-channel stereo receiver

SFCS (Simulated Four Channel System) circuit built in for 4-channel
stereo sound from 2-channel sources

1C and 3-mechanical IF stage filters for extra high selectivity and

excellent capture ratio
Large FM/AM tuning meter and dial pointer with Bulls Eye pinpoint

tuning.

Remote control for easy {onr-tlimensionnl channel balancing
1._lv1odel 5)! 1 Remote control unit. : Optional»

Automatic protective Circuit

ZCH, 4CH Indicator

Equalizer Am lifier with 21Cs

S.E.A. contro system with 21Cs
FM detector output for future 4-channel FM reproduction

BTL circuit for greater power 2-channel operation
4-channel mode button for instanteneous switching Front channels

and Rear.

5414

l

Page 12

WHAY IS S.E.A. ?

What is SLAK.

All of the receivers from JVC incorporate the new JVC Sound Effect

Amplifier (SEA) system. Until the company popularized it by incorporat-

ing it into a receiver for consumers, this type of tone control system was

restricted to use in professional sound studios. With the SEA system,

todays stereo enthusiast has more freedom and control over the sound he

hears than was ever possible before. The advantages of the SEA system are:

1. It gives the listener complete control of sound throughout the entire
frequency range.

2. It enables the listener to create entirely new sounds.

3. It allows the listener to compensate for vagaries in room acoustics.

4. It permits the listener to compensate for sound characteristics peculiar
to such components as turntables, tape decks and speaker baffles.
Unlike the conventional tone controls found on most better receivers, the
SEA system divides the receivers total frequency range into 5 different
frequency zones. This permits more variation in the complex frequency
characteristics of individual frequency zones within the total frequency
range. As you can see by the graph, the SEA system permits a sharp slope
to be obtained from the very start. With ordinary tone controls, this slope
is limited to 6db/oct. Another advantage of the SEA system is that each
independent frequency zone can be increased or decreased within a very
narrow range from 10 to 12db/oct. Perhaps the largest advantage of all is
the SEA systems ability to control the difficult midranges. Ordinary tone

controls can only handle the extreme high and low ends.

In the case of the 5-zone SEA system, the operator has independent control
of the 40, 250, 1,000, 5,000 and 15,000Hz ranges. When a 7-zone SEA
system is utilized, the range is split up into even narrower zones.

How the SEA System Works

When listening to regular program sources, if the operator wants to boost
the low frequency response, all that is required is to boost the 40Hz or
2501-12 control. To bring out the important midrange-the ones closest to
that of the human voice-the 1,000 or 5,000Hz control should be boosted.
To increase extremely high end response, the 15,000Hz control can be
boosted. Conversely, all of these ranges can be lowered by deemphasizing
the response in each range.

Frequency Control Characteristic of SEA

(8) 40H: 250H1 lkHz 5kHl lSkHz

12
10

ONGN

20H: lOOHz lkHz lOkHz 50km

Frequency Control Characteristic of Conventional Bass & Treble Tone Controls

(dB)
10 F 'l ' "l T l f

6

-10 l L 4-; . f1 .. J _.._.
20H: 50H: IOOHz 200Hz 500Hz IKHz 2KHz SKHz lOKHz

10
