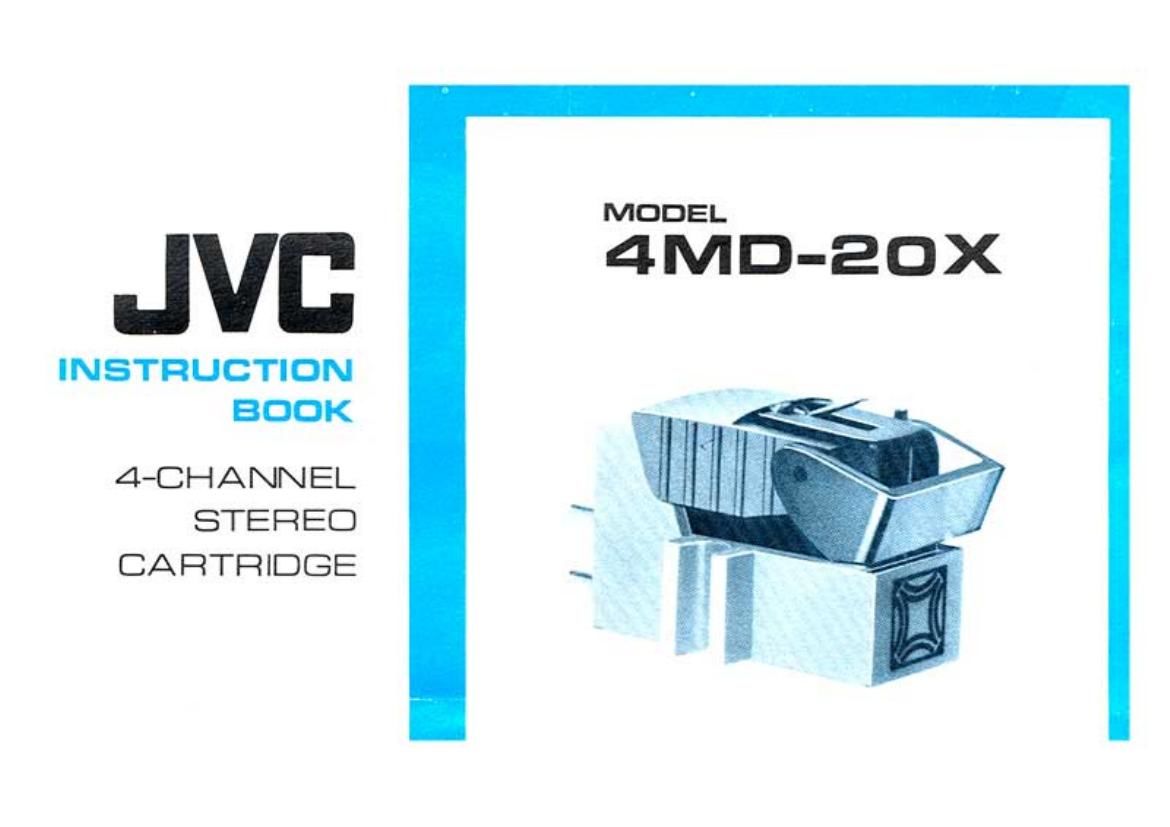

Jvc 4 MD 20 X Owners Manual

Page 2

CAUTION

Play this cartridge with 2.0 gram or lower stylus pressure.
Stylus should be inspected after 300 hours of playing.

A worn stylus can damage a record beyond repair.

When not using stylus keep guard in place.

Always clean record and tip of stylus before playing.

MOUNTING THE CARTRIDGE

This cartridge has a standard 1/2" eia mounting. When
installing cartridge remove stylus to prevent damage. Place
cartridge onto mounting bracket of player and attach
with proper screws, make sure they are tightened securely.

Be sure cartridge is mounted so that it is perpendicular to the
record surface.

Adjust stylus pressure to 1.5 grams, is possible use accurate
stylus pressure gauge.

If tracking lorce is set too high distorted sound will result.

The screws must be fixed vertically as shown in the diagram
and the stylus mounting must be inserted accurately.

nmnovu " meu

CONNECTING TERMINALS

Connect lead wire from your tone arm to the 4 terminals

the cartridge as indicated. some record players color er
wires in accordance with international standards. In such a
case just match color oi the wire to the color terminal at the

cartridge.

if your player has a grOund wire connect it to the grounding
post on your amplifier.

The terminals are color coded :

Green
Red
Blue
White

Left Positive Right Positive

right ground
right positive
Left ground
left positive
Left Right
Ground Ground
