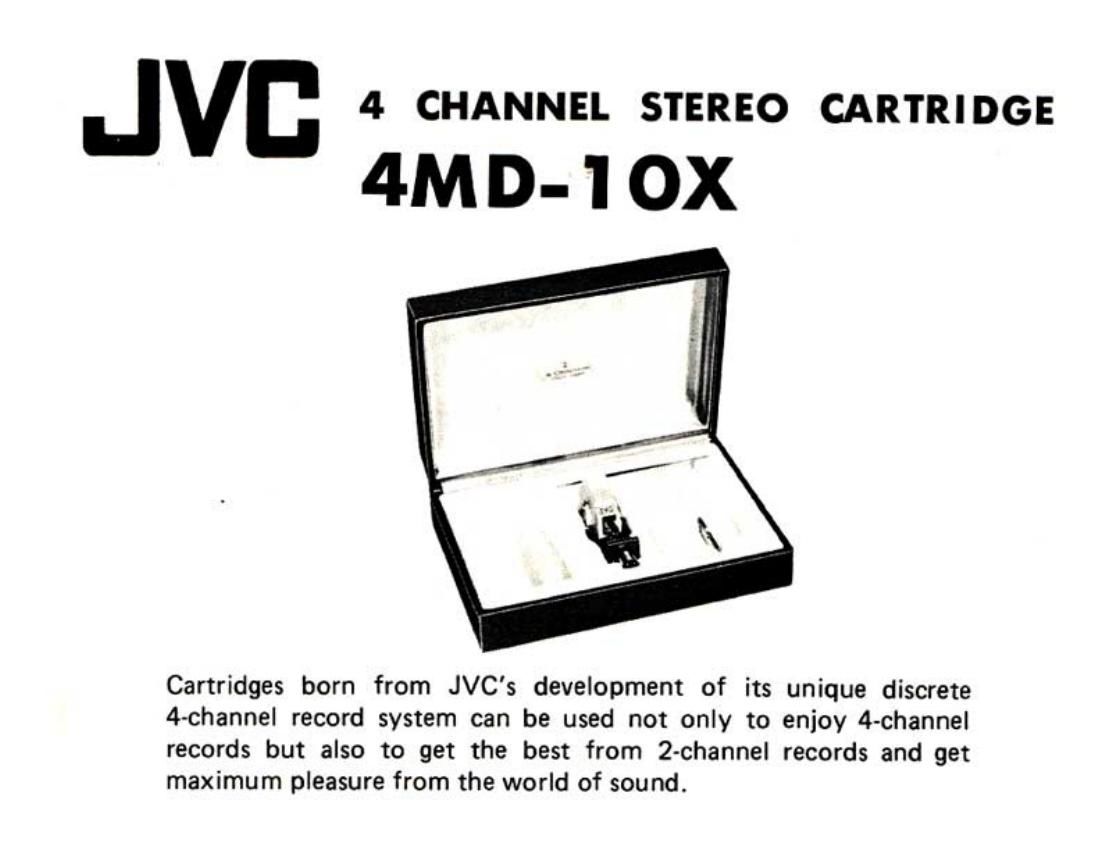

Page 1
4 CHANNEL STEREO CARTRIDGE
4MD-l OX
Cartridges born from JVC's development of its unique discrete
4-channel record system can be used not only to enjoy 4-channel
records but also to get the best from 2-channel records and get
maximum pleasure from the world of sound.
Page 2
FEATURES
Tracking ability is greater due to its use of a Shibata stylus which was
developed by JVC for its CD-4 system. This stylus has a new special shape.
Because of its superior tracking and its light-weight armature this cartridge's
response is extended into the super high range and its frequency characteristic is
l.
2.
extended to an unparalled level.
Because the compliance is
greater the stylus pressure has
been reduced without affecting
the tracking stability, ensuring a
longer life for your records as
well as the stylus when used for
2-channel as well as 4-channel
playing.
The head shell is a light weight
and rigid non-resonant shell
formed by impact pressing. It
was found to be the most
suitable for 4-channel cartridges.
ll
-|O
I ll ll I l |
Frequency Characteristic \!
__ Crosstalk ,
N to m m can In In us I: an 0M
Frequency (Hz)
