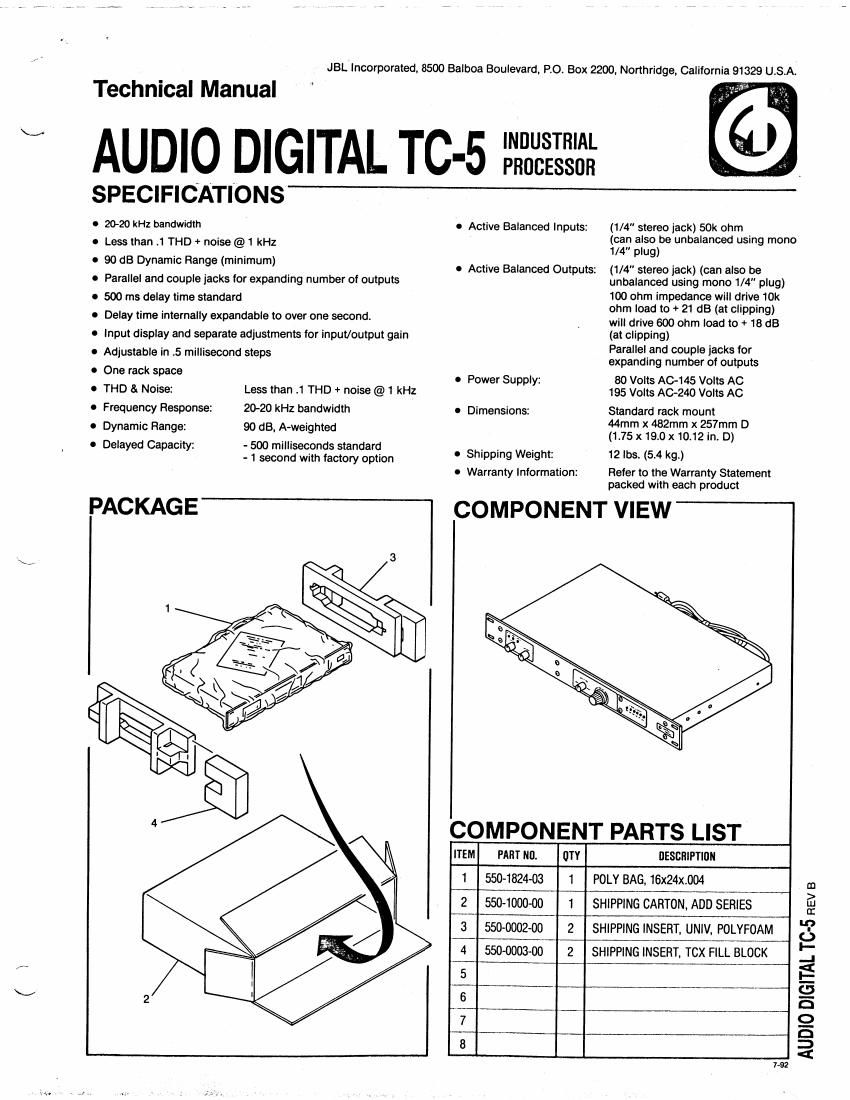

Page 1
x.»
JBL Incorporated, 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 USA.
Technical Manual
AUDIO DIGITAL TC-5
SPECIFICATIONS
PAC KAG E
INDUSTRIAL
PROCESSOR
20-20 kHz bandwidth
Less than .1 THD + noise @1 kHz
90 dB Dynamic Range (minimum)
Parallel and couple jacks for expanding number of outputs
500 ms delay time standard
Delay time internally expandable to over one second.
Input display and separate adjustments for input/output gain
Adiustable in .5 millisecond steps
One rack space
THD & Noise:
Frequency Response:
Dynamic Range:
Delayed Capacity:
Less than .1 THD + noise @ 1 kHz
20-20 kHz bandwidth
90 dB, A-weighted
- 500 milliseconds standard
- 1 second with factory option
Active Balanced Inputs: (1/4" stereo jack) 50k ohm
(can also be unbalanced using mono
1/ " plug)
(1/4" stereo jack) (can also be
unbalanced using mono 1/4" plug)
100 ohm impedance will drive 10k
ohm load to + 21 dB (at clipping)
will drive 600 ohm load to + 18 dB
(at clipping)
Parallel and couple jacks for
expanding number of outputs
80 Volts AC-145 Volts AC
195 Volts A6440 Volts AC
Standard rack mount
44mm x 482mm x 257mm D
(1.75 x 19.0x 10.12 in. D)
12 lbs. (5.4 kg)
Reler to the Warranty Statement
packed with each product
COMPONENT VIEW
Active Balanced Outputs:
0 Power Supply:
0 Dimensions:
Shipping Weight:
Warranty Information:
COMPONENT PARTS LIST
ITEM PART NI]. OTY DESCRIPTION
1 550-1824-03 1 POLY BAG, 16x24x.004
2 550-100000 1 SHIPPING CARTON, ADD SERIES
3 5500002410 2 SHIPPING INSERT, UNIV, POLYFOAM
4 550-0003-00 2 SHIPPING INSERT, TCX FILL BLOCK
5
6 a i,_
7
8
7-92
AUDIO DIGITAL TC-5 REV B
