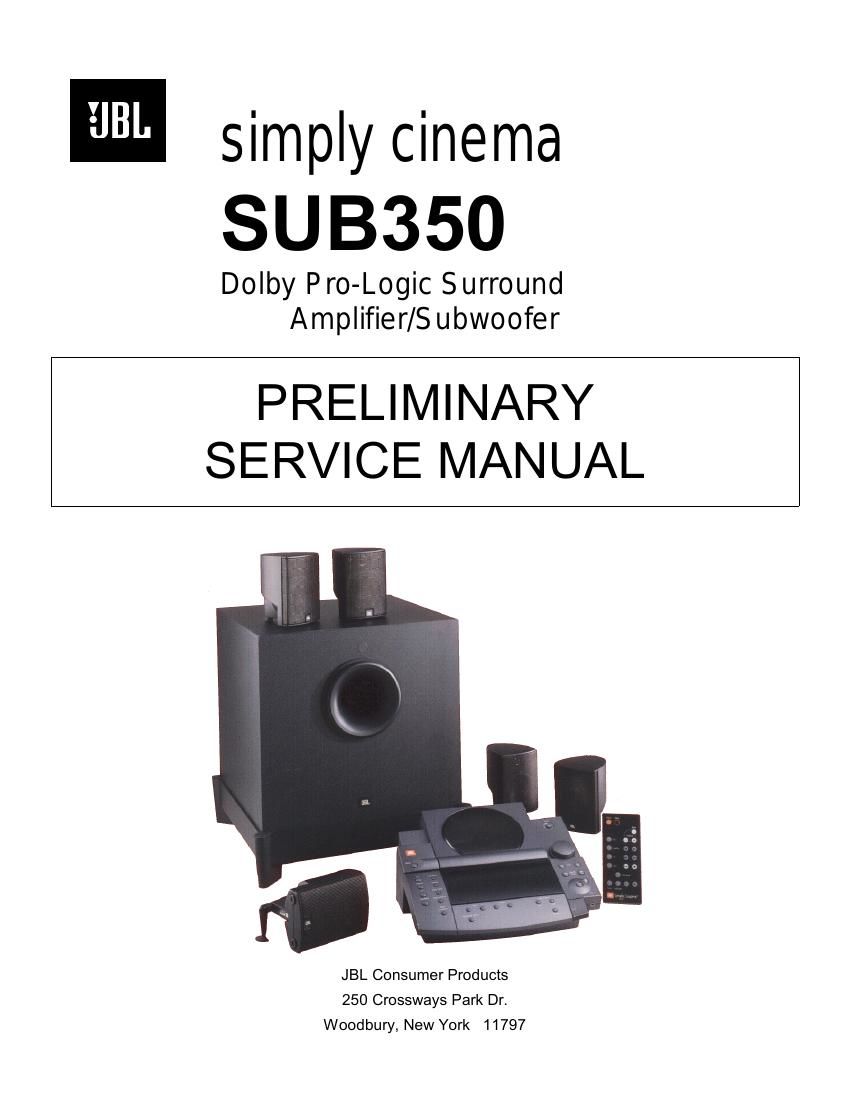

Jbl sub 350 service manual
This is the 25 pages manual for jbl sub 350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl sub 350 service manual (Ocr-read)
Page 1
Note: The SUB350 is part of the ESC350 system Service data for the ESC350 Processor/CD player/Tuner, the Source is available in a separate service manual The Source is necessary to test or play the SUB350. Parts for satellite loudspeakers 300SAT are also available in separate service literature - CONTENTS - BASIC SPECIFICATIONS …………………………………………..1 CONNECTIONS/SET-UP GUIDE ………….………………….2 BASIC TROUBLESHOOTING ….……….……………………....14 EXPLODED VIEW ..……………………… ….……………….…….15 PARTS LIST ……………….… ………………...…………….…….16 SCHEMATICS ………..…………………….………………………..22 PACKAGE ………..………….…………….…………………….24 BASIC SPECIFICATIONS ESC350 SYSTEM Total System Output 200 watts Front channels – 35 watts x 3 @ .1% THD Surround channels – 15 watts x 2 @.1% THD Subwoofer – 65 watts @ .1% THD Frequency response 35Hz – 20kHz S-N ratio 90 dB Input Impedance 20k Ohms Input Sensitivity 1500mV SUB350 Dimensions 15 1/8 x 13 x 14 ½ (384 x 330 x 368mm) Weight 34.5 lbs. (15.7 kg) Occasional refinements may be made to existing products without notice but will always meet or exceed original specifications unless otherwise stated
Page 2
Ð 6 Ð Connections Connect TV or VCR to The Source JBL ESC350 Powered Subwoofer Out InA or B TV Tape/Aux AM Loop US Europe Tuner Frequency Standard Rear Panel of The Source TV or Hi-Fi VCR Antenna FM 75 ½ L R L R AUDIO OUT JBL ESC350 Powered Subwoofer Out InA or B TV Tape/Aux AM Loop US Europe Tuner Frequency Standard Antenna FM 75 ½ L R INPUT SUBWOOFER LEVEL Rear Panel of The Source Rear Panel of Subwoofer OUTPUTS RIGHT CENTER LEFT RIGHT LEFT FRONT SPEAKERS SURROUND SPEAKERS Min Max JBL ESC350 Powered Subwoofer Out InA or B TV Tape/Aux AM Loop AM Antenna FM Antenna US Europe Tuner Frequency Standard Antenna FM 75 ½ L R Rear Panel of The Source Connect The Source to a Subwoofer Connect Antennas to The Source Connect Optional Cassette Deck to The Source JBL ESC350 Powered Subwoofer Out InA or B TV Tape/Aux AM Loop US Europe Tuner Frequency Standard Rear Panel of The Source Cassette Deck Antenna FM 75 ½ L R L R OUT L RIN Note: The Source also provides a stereo mini-jack (B) to provide an easy connection to devices that have a stereo mini-jack audio output. ESC350 Simply Cinema OM 9/11/98 2:06 PM Page 6
