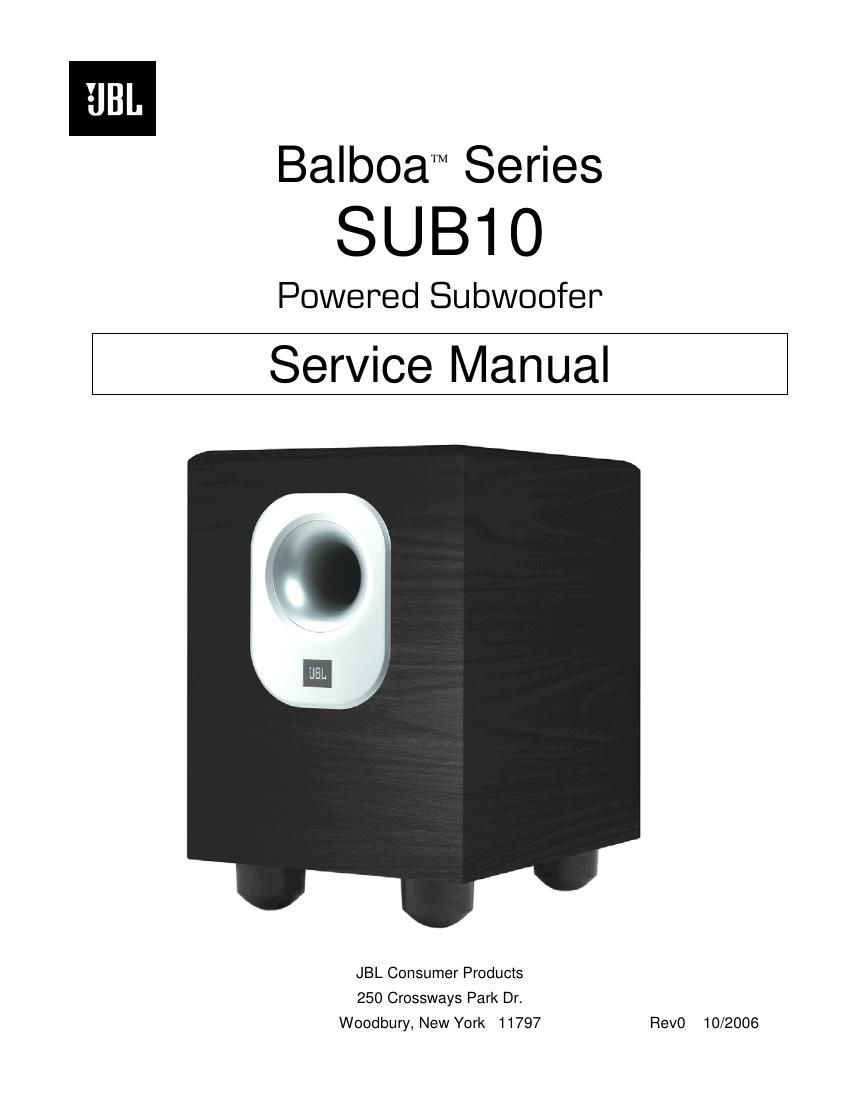

Jbl sub 10 service manual
This is the 27 pages manual for jbl sub 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl sub 10 service manual (Ocr-read)
Page 1
- CONTENTS - BASIC SPECIFICATIONS …………….……..…………..1 PACKING……..………………….….….…………..…\ …...2 DETAILED SPECIFICATIONS ……….……..…………..3 CONNECTIONS………………………...……..…...…..…5 OPERATION ……..………………….……...…….….…\ ...7 TEST SET-UP AND PROCEDURE….…………………..8 EXPLODED VIEW /PARTS LIST…………………………9 AMPLIFIER BLOCK DIAGRAM…………………………10 DETAILED TROUBLESHOOTING……………………..12 ELECTRICAL PARTS LIST ..……….……….……….…13 P.C.B. DRAWINGS……………………………………….17 IC/TRANSISTOR PINOUTS..……..….…….….….….….23 SCHEMATICS……………………….……………………24 \ BALBOA SUB10 SPECIFICATIONS Amplifier Power (RMS): 100 W atts Peak Dynamic Power *: 225 W atts Driver: 10" (254mm) Inputs: Line Level and LFE Crossover Frequency: Variable from 50Hz to 150Hz, 24 dB per octave Frequency Response: 30Hz – 150Hz Dimensions (H x W x D): 19-3/4" x 14-1/16" x 14-3/4" (502mm x 357mm x 375mm) W eight: 35 lb/16kg JBL continually striv es to update and improv e existing products, as well as create new ones. The specifications and details in this and related JBL publications are therefore subject to change without notice. * The Peak Dynamic Power is measured by recording the highest center-to-peak voltage measured across the output of a resistive load equal to minimum impedance of the transducer, using a 50Hz sine wave burst, 3 cycles on, 17 cycles off. BALBOA series SUB10 1
Page 2
BALBOA series SUB10 2
