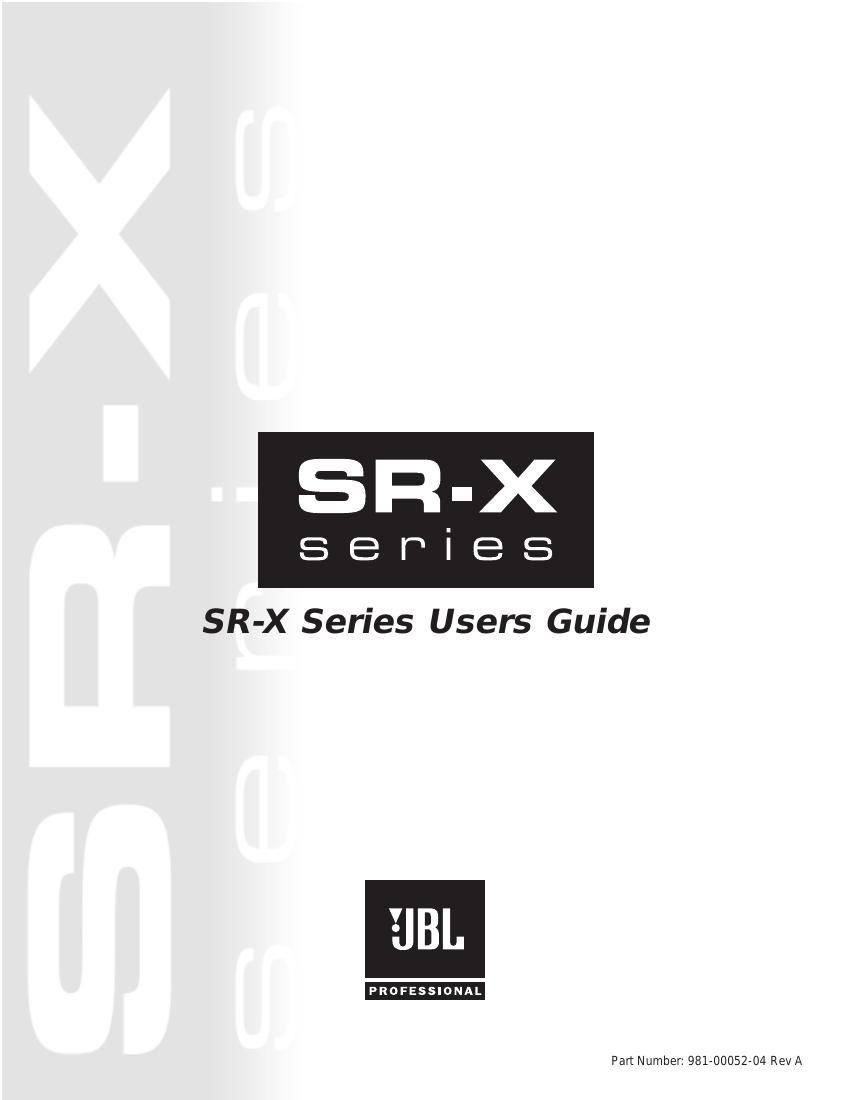

Page 1
Before You Begin - Important Information Product Range Specifications and Recommended Power Cable and Connections Input Panel Input Configurations Crossovers and Controllers System Configurations SR-X/F Flying Versions JBL Warranty and Contact Information3 4-6 7 8 9 10-11 12 13 14-15 16 CONTENTS The exclamation point within an equilateral triangle is intended to alert the users to the presence of impor- tant operating and maintenance (servicing) instruc- tions in the literature accompanying the product. The lightning flash with the arrowhead symbol, within an equilateral triangle, is to alert the user to the presence of insulated dangerous voltage within the products enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to humans. CAUTION: TO REDUCE THE RISK OF ELECTRON- IC SHOCK - DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVIC- ING TO QUALIFIED PERSONNEL. ATTENTION: POUR EVITER LES RISQUES DE CHOC ELECTRIQUE, NE PAS ENLEVER LE COU- VERCLE. AUCUN ENTRETIEN DE PIECES INTERIEURES PAR LUSAGER. CONFIER LEN- TRETIEN AU PERSONNEL QUALIFIE. AVIS: POUR EVITER LES RISQUES DINCENDIE OU DELEC- TROCUTION, NEXPOSEZ PAS CET ARTICLE A LA PLUIE OU A LHUMIDITE. The IEC fuse symbol pictured at the left represents an approved user replaceable fuse. When replacing a fuse, make sure to replace with only the correct type and fuse rating.1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings 4. Follow all instructions 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit your outlet, consult a electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the apparatus. 11. Only use attachments / accessories specified by the manufacturer. 12. Use only with a cart, stand, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when un-used for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when a apparatus has been damaged in any way, such as power-cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Explanation of Graphic Symbols Important Safety Instructions CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN! DO NOT EXPOSE TO RAIN OR MOISTURE! ATTENTIONRISQUE DE CHOC ÉLECTRIQUE NE PAS ENLEVER! NE PAS EXPOSER Á LA PLUIE NI Á L'HUMIDITÉ! 2
Page 2
BEFORE YOU BEGIN Welcome to the family of discerning sound equipment users who have selected JBL Professional loudspeakers. This Users Guide contains important information that will help you get the most from your JBL speakers so please take a few moments to read it and be sure to keep it in a safe place for future reference. Important Information Before using your SR-X Series speaker system, please review the following for important information on safety and protection of your investment in quality loudspeakers. Rigging / Suspending SR-X Products SR-X Series speakers are designed for portable applications in which the speakers will be stacked directly on the floor, stage, speaker stands (SR4702X, SR4722X only), other speakers, or a solid, stable platform. SR-X Series speakers have no provisions for hanging, rigging or suspension. SR-X/F Series speakers are similar to SR-X and in addition have provisions for flying. SR-X/F versions should always be substituted for SR-X if flying or suspending the speaker system is required. ONLY SPEAKERS SPECIFICALLY DESIGNED FOR FLYING / RIGGING SHOULD BE SUSPENDED. For further information on suspending speakers contact JBL and request Technical Note Volume 1, Number 14 - "Basic Principles for Suspending Loudspeaker Systems". Stand Mounting Some SR-X models (SR4702X, SR4722X) include a receptacle cup to facilitate mounting on tripod stands. When using these stands, be sure to observe the following precautions: -Check the stand specification to be certain it is designed to support the weight of the speaker. Observe all safety precautions specified by the stand manufacturer. -Always verify that the stand is placed on a flat, level, and stable surface. -Route cables so that performers, crew, and audience will not trip over them and pull the speaker over. -Be sure to fully extend the legs of tripod type stands. -Position the stand so that the legs do not present a trip hazard. -Do not attempt to place more than one speaker on a stand. -Always be cautious in windy, outdoor conditions. It may be necessary to place additional weight (i.e. sand- bags) on the base of the stand to improve stability. Stacking Speakers Safety precautions should be observed when stacking SR-X speakers. -Verify that the floor or stage on which the speakers will be stacked is flat, level and solid. -When used outdoors, be aware of winds that could tip a tall speaker stack over. -Position the speakers to minimize the possibility that performers, crew, or audience will bump into them. -Under extreme, high-SPL conditions it's possible that speakers on a highly polished surface can "creep." (i.e. move due to the power of the acoustic energy) Precautions should be taken so that such creeping will not result in toppling of the speaker stack. Hearing Damage, Prolonged Exposure to Excessive SPL SR-X series loudspeakers are easily capable of generating sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Proper precautions should be taken to avoid prolonged exposure to SPL in excess of 85dB. Exposure to Moisture, Outdoor Applications While SR-X Series loudspeakers will work great for outdoor sound reinforcement, they are not "weather-proof" and are not intended for continuous exposure to extremes of humidity, temperature, salt air, or UV rays. Exposure to outdoor environmental conditions may result in premature failure of components as well as degradation to appearance. 3
